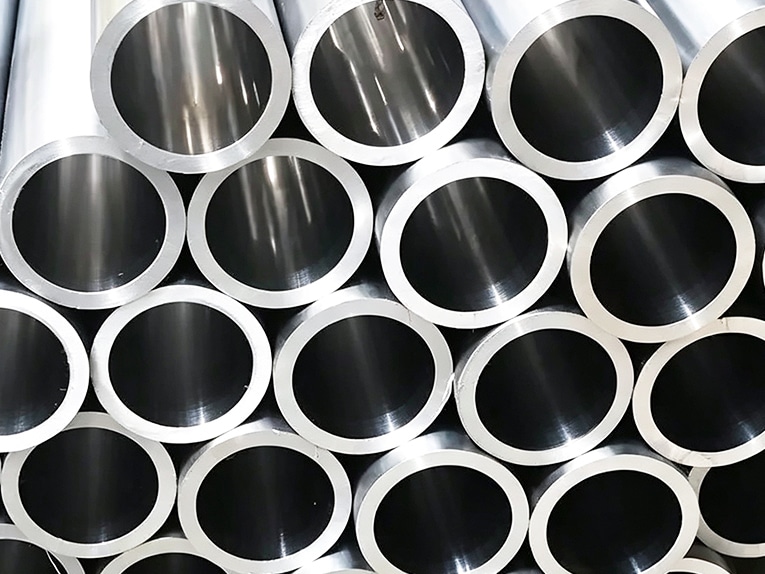

Honed Tube ID Tolerance: H8 vs H9 and How It Drives Seal Selection

How honed tube bore tolerance grades H8 and H9 change piston seal compression, and how to match bore tolerance to seal type and pressure.

The Hidden Variable That Turns a Perfect Seal into an Intermittent Leak

A cylinder builder once called with an infuriating problem: the exact same seal, from the exact same maker, was leaking in one batch of cylinders while performing flawlessly in another. The assembly was identical. The components were identical. Yet one batch failed in the field.

When we measured the bores, the culprit wasn't the seal at all. One batch of honed tube sat at the tight end of its tolerance; the other sat at the loose end. That microscopic spread was enough to move the seal from a perfectly designed compression state to a dangerously under-compressed one.

The bore tolerance grade you specified—likely treated as boilerplate on your purchase order—had quietly decided whether your cylinder leaked.

In hydraulic and pneumatic cylinder design, engineers and senior buyers frequently assume H8 and H9 honed tube tolerances are interchangeable. They are not. The ISO grade you choose directly controls the "squeeze" on your piston seal. If the bore drifts to the loose extreme of an H9 band, radial gap increases, contact pressure drops, and low-pressure leaks begin. If it drifts too tight, friction and wear spike, shortening seal life.

Furthermore, different seals have drastically different tolerance "appetites." A highly compliant polyurethane seal might survive a loose H9 bore, but specifying a low-friction PTFE seal against that same H9 tube is a recipe for marginal sealing and warranty claims.

There is a critical worst-case design rule that most procurement teams miss when writing their tube specifications—one that ensures your cylinder performs reliably across the entire production spread, not just at nominal.
