AlN Ceramic Substrates: The Key to Stable, High-Speed Optical Modules

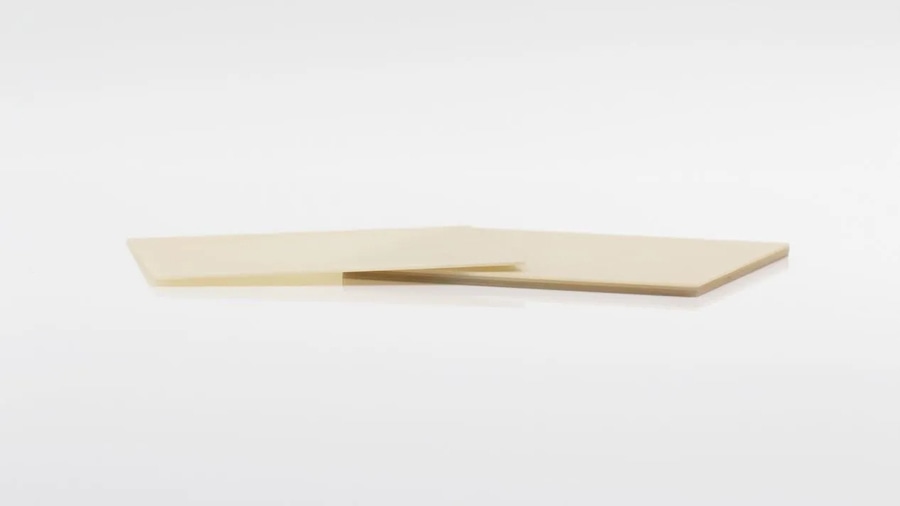

Aluminum Nitride Ceramic Sheets

With the continuous upgrading of data centers, AI computing power, and high-speed communication networks, optical modules are rapidly evolving towards higher bandwidth, higher integration, and smaller package sizes. From 100G, 400G to 800G and even 1.6T optical modules, the power density within a unit volume has been continuously rising. The heat generated by lasers and modulators has become a critical limiting factor affecting system performance.

Inside the optical module, the laser diode (LD) chip, high-power modulators (such as EML), and related driver circuits are extremely sensitive to operating temperature. Once the heat dissipation capacity is insufficient, it may cause wavelength drift, output power attenuation, and increase the aging speed of the device, thereby affecting the long-term reliability of the optical module and the stability of network operation.

Core solution: High-performance aluminum nitride ceramic heat dissipation substrate
Aluminum nitride (AlN) ceramics have a typical thermal conductivity of 170–230 W/m·K. During the operation of lasers and high-power modulators, they can effectively transfer the heat generated by the chips from the source to the downstream heat sinks or module housings. This highly efficient heat conduction ability is conducive to:

·Reduce the junction temperature of the chip

·Improve the output stability of the laser device

·Helps devices achieve more reliable long-term operation under high-power conditions

Precise thermal expansion matching, constructing a highly reliable packaging structure
Apart from thermal conductivity, the thermal expansion matching between materials is also a key factor determining the reliability of optical modules. The thermal expansion coefficient (CTE) of aluminum nitride ceramics is closely matched to that of mainstream optical chip materials such as GaAs, InP, and Si. Under conditions of rapid temperature changes or long-term cycling, it can significantly reduce interface thermal stress.

This means:

·Reduce the risks of weld layer cracking and interface separation

·Improve the stability of the packaging structure under extreme conditions

·Meet the stringent requirements for long-term reliability of telecommunications-grade optical modules
