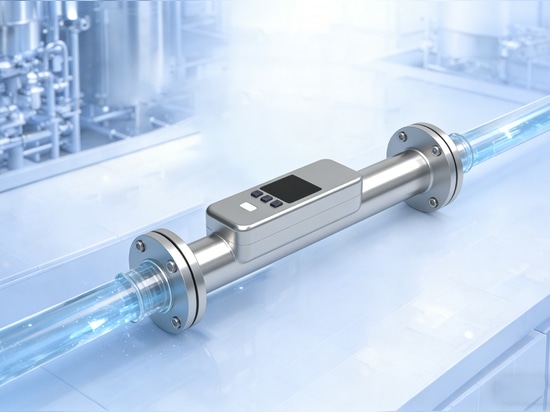

Liquid Cooling System Flowmeter Technology Comparison

Ultrasonic flow sensor for liquid colling

Overview of Flowmeter Technologies in Liquid Cooling Systems

With the explosive growth of AI computing power, rack power density in data centers has exceeded 20 kW, 30 kW, and even higher. Liquid cooling has become the key solution for efficient heat dissipation in high-density data centers. Flow measurement, as a core monitoring parameter in liquid cooling systems, directly impacts system safety and energy efficiency management.

Common flowmeter types used in liquid cooling systems include electromagnetic flowmeters, vortex flowmeters, turbine flowmeters, rotameters, Coriolis mass flowmeters, thermal mass flowmeters, and ultrasonic flowmeters. Each type operates on different measurement principles and exhibits distinct advantages and disadvantages in liquid cooling applications.

Key Highlights of XYTEK Ultrasonic Flowmeters---TPD series and TPK series in-line Flow Sensors

1.Electromagnetic Flowmeters
Electromagnetic flowmeters cannot measure non-conductive fluids such as electronic fluorinated liquids.
Highlight: Full fluid compatibility — one device works with all coolants.
Ultrasonic flowmeters can measure any liquid, whether conductive or non-conductive. A single unit handles deionized water, electronic fluorinated liquids, or specialized coolants, protecting customer investment against future coolant changes.

2. Vortex and Turbine Flowmeters
Vortex flowmeters are sensitive to low flow and vibration; turbine flowmeters suffer from mechanical wear.
Highlight: Zero wear, zero pressure loss, lifetime maintenance-free.
With no moving parts, ultrasonic flowmeters eliminate mechanical wear entirely. Zero pressure loss ensures no additional system energy consumption. Clamp-on models offer true lifetime maintenance-free operation, significantly reducing Total Cost of Ownership (TCO).

3.Compared with Coriolis Mass Flowmeters
High cost, vibration sensitivity, and limited pipe size range.
Highlight: High accuracy at a fraction of the cost — the best value choice.
Ultrasonic flowmeters deliver near-Coriolis accuracy at electromagnetic flowmeter pricing, while being unaffected by vibration and supporting a much wider pipe size range (DN15 to DN6000).

4.Compared with Rotameters
Low accuracy, inability to provide remote monitoring, and risk of glass tube breakage.
Highlight: Digital intelligent monitoring with enhanced safety.
Multiple signal outputs (4-20mA/RS485/Modbus) enable seamless BMS integration. No glass breakage risk, with 2–5 times higher accuracy for precise flow control.

XY-TEK Ultrasonic Flow Sensor Key Value Proposition

1.Ultrasonic Flow Meters Vs. Electromagnetic Flowmeters

Electromagnetic flowmeters only work with conductive liquids and fail with electronic fluorinated liquids. Ultrasonic flowmeters measure both conductive and non-conductive fluids — one solution for all coolants.

2.Ultrasonic Flow Meters Vs. Turbine/Vortex Flowmeters

Turbine flowmeters have blades that wear out, and vortex meters are sensitive to vibration. Ultrasonic flowmeters have no moving parts and no contact with the fluid, delivering lifetime maintenance-free performance.

3.Ultrasonic Flow Meters Vs. Coriolis Mass Flowmeters

Coriolis flowmeters offer high accuracy but cost 3–5 times more and are vibration-sensitive. Ultrasonic flowmeters deliver near-Coriolis accuracy at electromagnetic pricing — the best cost-performance ratio.

Choosing an ultrasonic flowmeter means choosing:

1.Full fluid compatibility — works with water today and fluorinated liquids tomorrow without equipment replacement

2.Zero maintenance cost — no moving parts; clamp-on models are lifetime maintenance-free

3.Zero system impact — no pressure loss and no increase in pumping energy consumption

4.Digital upgrade — full 4-20mA/RS485 / Modbus interface support for intelligent monitoring

Ultrasonic flowmeters are rapidly becoming the new standard for flow measurement in liquid cooling systems worldwide. With superior fluid compatibility, minimal maintenance requirements, negligible system impact, and advanced digital capabilities, they perfectly meet the evolving demands of liquid cooling technology.

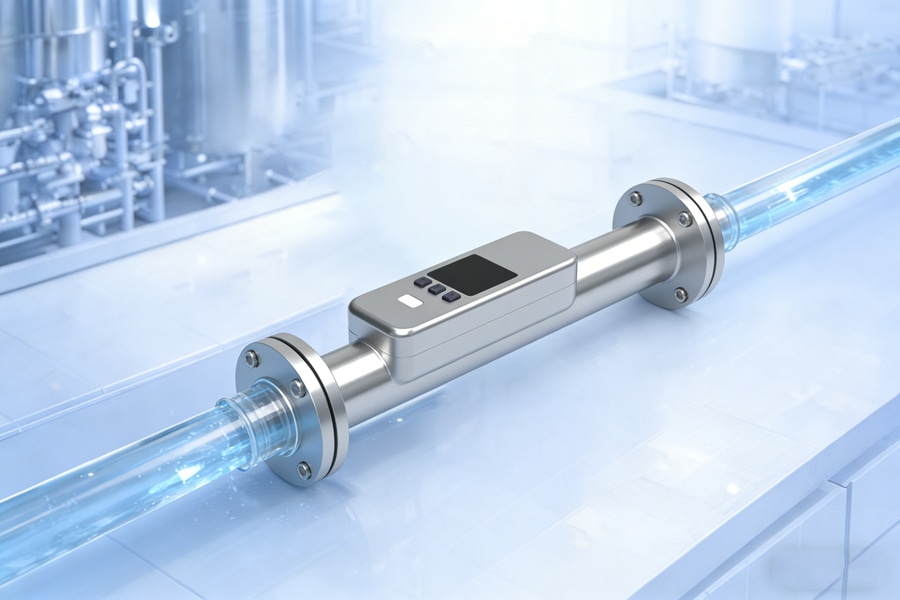

TPD Ultrasonic Flowmeters : The Ideal Next-Generation Flow Sensor AI Datacenter Liquid Cooling

The TPD series inline ultrasonic flow sensors/flow meters feature an integrated design with a built-in circuitry, support direct flow rate measurement and intuitive flow data monitoring, ideal for industrial automation, battery manufacturing equipment, water treatment, and liquid cooling flow rate measurement.

The TPD series inline ultrasonic flow sensors/flow meters can be integrated into the existing fluid systems through internationally standardized tubing fittings, with an accuracy of up to ±2%.

TPD series inline ultrasonic flow sensors/flow meters consist of straight tubing with no moving parts and dead spots, making it resistant to wear and scaliness, easy to clean, and with minimal pressure loss.
For more information, please visit XY-TEK TPD series inline ultrasonic flow sensors/flow meters at https://xy-tek.com/Products/show?id=22
Contact XY-TEK at [email protected] for more information.
