Unlocking 20Bar Pressure: Why Every High-End Espresso Needs a Magnetic Drive Gear Pump Coffee Machine

Moving Beyond Vibe Pumps: The Engineering Breakthrough in Modern Espresso

Simplified English Version (Half Length):

The Magnetic Drive Gear Pump: The Heart of Modern Espresso

Pressure is key to perfect espresso. While grinders get attention, the magnetic drive gear pump is quietly revolutionizing coffee machines for home and commercial use.

What It Is

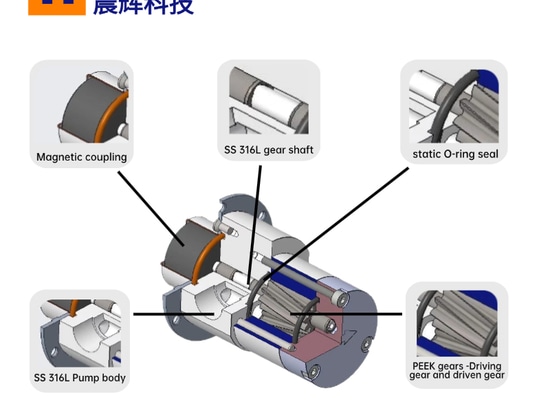

This pump uses magnetic coupling—not a physical shaft—to drive precision gears. With no seals, there’s no leakage and longer life.

Why It’s Great for Espresso

No leaks – Eliminates seal failure, protecting electronics.

High pressure at low flow – Perfect for 9–12 bar espresso (250–500 ml/min).

Handles heat – Uses PEEK gears and stainless steel.

Pressure Profiling Made Easy
By varying speed (voltage or PWM), you get:

Pre-infusion (2–3 bar) – Gentle wetting.

Full extraction (9 bar) – Stable pressure.

Ramp-down – Smooth finish, less bitterness.

Key Specs
Look for: 16–20 bar max pressure, 0–1.6 L/min flow, SS316L + PEEK wetted parts, BLDC motor (quiet, long life), 15,000–20,000 hour lifespan.

Why OEMs Love It
Lower warranty costs (no leaks), better crema and extraction, and unique pressure profiling features.

Other Uses
Bean-to-cup vending, portable espresso, commercial drip brewers, capsule systems.

Maintenance Tips
Don’t run dry (>30 sec), use scale-free water, backflush gently (max 12 bar), check magnets every 5 years.

Bottom Line
Switching to a magnetic drive gear pump improves reliability, shot quality, and total cost of ownership. It’s fast becoming the new standard.
