Hot & Cold Steel Manufacturing

Zumbach Electronic: Precision Measurement & Control Solutions for Hot & Cold Steel Manufacturing

In today’s global steel and metal production industry, achieving maximum productivity and cost-efficiency is essential for delivering superior quality products and maintaining a competitive edge. With over 60 years of operational know-how on more than 300 installed systems in hot rolling, as well as thousands in cold presses, Zumbach Electronic offers a comprehensive range of non-contact measuring and monitoring instruments.
Steel manufacturing demands accuracy, efficiency, and reliability at every stage – whether in hot rolling mills or cold finishing lines. Zumbach Electronic has become the global leader in delivering advanced measurement and control solutions that optimize production, reduce waste, and guarantee consistent quality for a wide range of steel and metal products.
The portfolio of products offered by Zumbach, covers the entire spectrum of steel production, from hot-rolled long products and forging technology to tube extrusion and welding processes. Zumbach’s systems are designed to enhance productivity and precision in the manufacturing of Tubes, Billets, Wires, Rods, Profiles and Rebar, with each solution tailored to meet the unique challenges of hot and cold environments, ensuring accurate dimensional control, as well as surface quality monitoring.

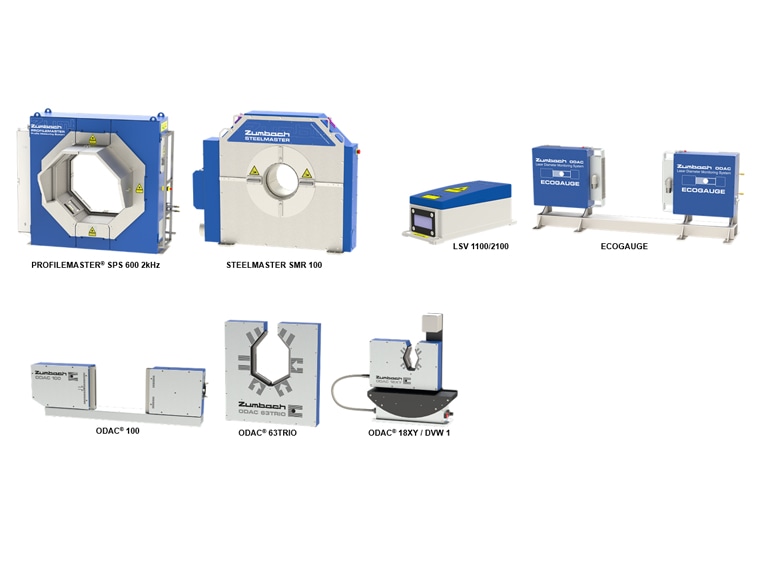

Key Measurement Technologies & Their Applications
PROFILEMASTER® SPS
• Technology: High-speed dimension monitoring using 2D laser triangulation and light section technology, with integrated surface fault detection.
• Performance: Measuring frequencies of 1kHz and 2 kHz; measuring dimension from
5 mm up to 720 mm (rounds) and 510 mm (squares)
• Applications: Ideal for rebar, large metal profiles, squares, special shapes (e.g. rail bars), and multistrand products.
• Benefit: Improves production efficiency, detects surface defects early, reduces scrap, improves product end-quality.
PROFILEMASTER® PMM
• Technology: Outer dimension monitoring with 2D laser triangulation and light section technology.
• Range: From 2 mm up to 144 mm (rounds) and 102 mm (squares); resolution 0.001 mm
• Applications: Perfect for smaller cold profiles; flat products, and non-round shapes.
• Benefit: High precision dimensional measuring for cold finishing lines.
STEELMASTER SMS & SMR Systems
• Technology: SMS offers a static gauge with 2-6 measuring axes for full-length diameter checks. SMR offers a rotational measuring gauge with up to 3 axes for rapid profile measurement.
• Performance: SMS provides measuring frequency of 1kHz (as standard) with an option up to 2kHz. The SMR provides a measuring frequency of 2kHz, capturing 10 complete profiles per second, making is also ideal for short product lengths.
• Applications: Both systems can be used in the manufacturing of billets, round bars and continuous casting, with the SMR also capable of measuring rebar and basic profiles including hexagonal, L-shape, flat and square profiles.
• Benefit: Ensures dimensional consistency after finishing or calibration.

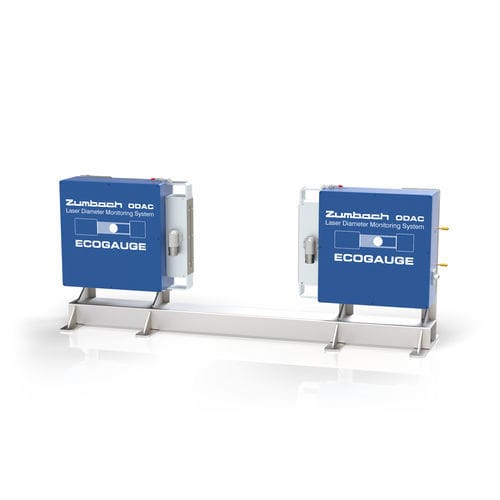

ECOGAUGE
• Technology: Robust laser system for extreme conditions, offering high accuracy and stability
• Applications: Billets, round bars, and continuous casting of hot and cold products
• Benefit: Cost-effective diameter and ovality measurement.
BENDCHECK
• Technology: In-line laser device for straightness measurement with 3 to 5 stations
• Applications: Cold bars, rod and tubes
• Benefit: Real-time monitoring of bending for improved product integrity

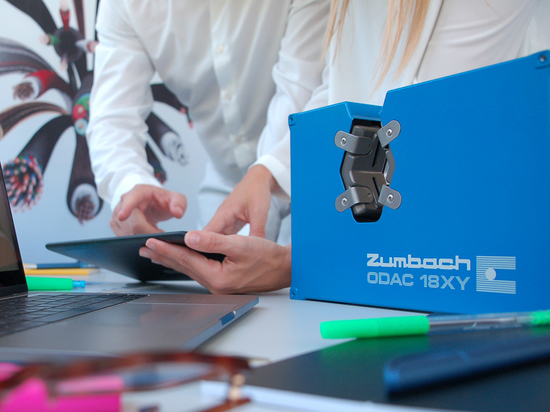

ODAC®
• Technology: Laser gauges for diameter and ovality in peeling grinding, rolling, wire drawing, and slitting.
• Applications: Cold round products.
• Benefit: Enhanced oscillating support with optional DVW / DVO for min/max dimension measuring.
LSV
• Technology: Laser device for length and line speed measurement.
• Applications: Billets, round bars, and continuous casting.
• Benefit: Accurate length control for continuous production.

With thousands of installations worldwide, Zumbach systems have become synonymous with precision and reliability in steel manufacturing. Their solutions not only ensure dimensional accuracy but also integrate seamlessly into modern production lines, delivering real-time data for process optimization.
Zumbach Electronic continues to set the standard for measurement and control in steel production, helping manufacturers achieve superior quality, reduce waste, and stay competitive in today’s demanding markets.
