Training Stand BALTECH TSA-4040

Training Stand BALTECH TSA-4040

Simulator for training on equipment alignment allows to simulate process of liquidation of misalignment while alignment of horizontal machines and mechanisms. With the help of the simulator at any time it is possible to hold training on equipment alignment for your technical specialists during internal study and requalification.

One bearing is fixed, the second has an opportunity to move in horizontal and vertical planes. For correction of vertical misalignment calibrated shims BALTECH Small are shipped in the set.

Two rolls are connected through a sleeve and have comfortable grips for rotation about axis. In this way having installed the simulator on your system of alignment you can perform settlement of misalignment and to make corrections on arms of flexible bearing.

The given simulator is for specialists of repair service of industry enterprises, listeners of High schools, colleges, training schools, professional schools, which program supposes study of “Roll alignment of industrial equipment”.

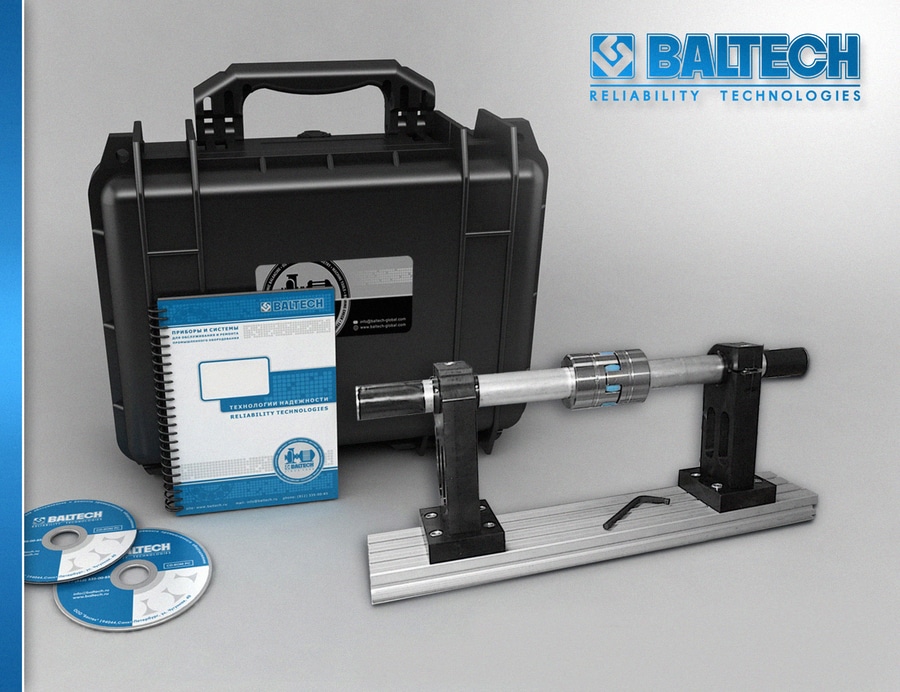

Scope of supply of the simulator:

- two rolls connected with flexible sleeve,

- two rotating knobs on rolls,

- set of training calibrated shims BALTECH Small,

- four free bearings for installation of calibrated alignment shims,

- bearings of rolls are installed on one calibrated platform,

- set of keys for adjustment of effort of roll rotation,

- certificate,

- transportation case.
