DB510-DB120 Humidity and Temperature Transmitter for Power Cabinets

DB510-DB120 Humidity and Temperature Transmitter Applied in Power Cabinets

Power cabinets, as core carriers for power distribution, data transmission, and precision equipment, rely on stable temperature and humidity control to ensure operational reliability and service life. In sensitive scenarios (e.g., data centers, nuclear power plants), slight deviatio may cause component overheating, corrosion, or electrostatic damage-even system shutdowns.

The DB510 temperature and humidity sensor (paired with DB120 probe) has been effectively applied in a major data center’s power cabinets, leveraging high-precision measurement, strong environmental adaptability, and easy maintenance to safeguard equipment.

Project Background

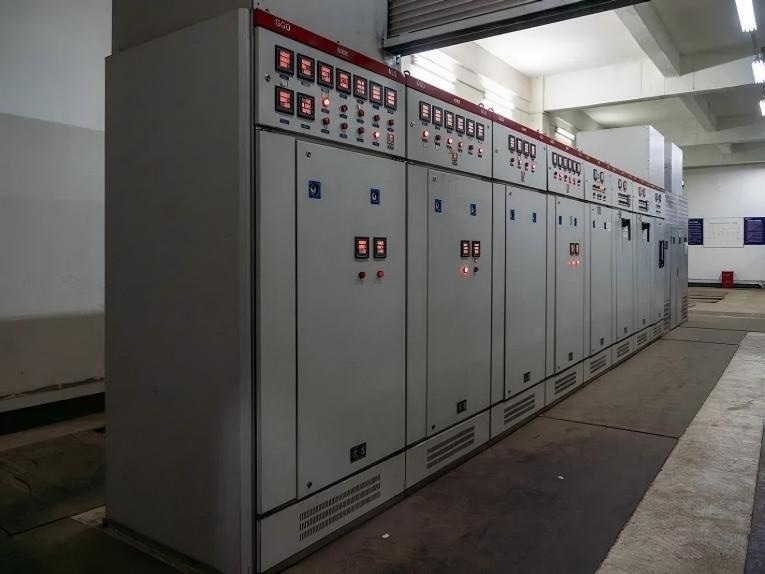

The data center operates 50 high-voltage power distribution cabinets, 30 UPS cabinets, and 20 network server cabinets, undertaking regional core data storage and power dispatching. Per standards, cabinet humidity and temperature must meet strict requirements:

• Temperature: Ideal 18-27℃ (deviation ≤±1.5℃), max tolerable ≤40℃ (to avoid insulation aging).

• Humidity: 40-60% RH (accuracy ≤±2% RH) – prevents condensation short circuits (high humidity) and electrostatic damage (low humidity).

• Environmental Characteristics: Enclosed interiors with dense components; temperature spikes (e.g., 35℃ during UPS switching) and metal dust/air pressure fluctuations demand sensors with high temperature/corrosion resistance and easy maintenance.

Previous traditional sensors had critical flaws:

1. Insufficient accuracy: ±2℃ temperature deviation, ±5% RH humidity deviation – failed to detect 65% RH humidity once, causing interface corrosion and data interruption.

2. Limited temperature resistance: Probe max 60℃ – frequent data drift in summer when heat dissipation is strained.

3. Integrated design: Full replacement needed when damaged; single maintenance took over 1 hour, disrupting operation. A high-precision, easy-to-maintain system was urgent.

Product Adaptability Analysis
Based on DB510-DB120 parameters and cabinet needs, its adaptability lies in three aspects:

1. High-Precision Measurement
Power cabinets require ±1.5℃ temperature accuracy and ±2% RH humidity accuracy. At 25℃, DB510-DB120 achieves ±0.2℃ temperature accuracy and ±2.0% RH humidity accuracy (0-90% RH), fully meeting requirements. It captures subtle changes (e.g., 22℃→26℃ for power components, 45% RH→58% RH in plum rain) for reliable control data. Its range (0-100% RH humidity, -40~120℃ temperature) covers ideal and extreme scenarios (e.g., 40℃ heat dissipation failure), avoiding blind spots.

2. DB120 Probe: Adapted to Enclosed Cabinets
• 304 Stainless Steel: Resists metal dust and insulating material volatiles, avoiding plastic probe aging – suitable for long-term enclosed use.

• 120℃ High Temperature Resistance: -40~120℃ range far exceeds cabinet’s 40℃ max; stable data at 35-40℃ (instant high temperature) for overheating early warning.

• Replaceable Design: Probe replaced in 10 minutes (when accuracy drifts) – solves traditional "time-consuming full replacement" and ensures continuous operation.

• 4bar Pressure Resistance: Withstands fan airflow and cabinet door pressure fluctuations, avoiding measurement instability.

3. Functional Design for Intelligent Monitoring
• Dual Output Modes: Analog 4-20mA (real-time data to local controller, triggers fan within 5s if >27℃); digital RS485 (Modbus RTU, 100-cabinet networking – monitoring center views curves and predicts trends).

• Low Power/Wide Voltage: 9-36VDC wide voltage (direct 24V DC cabinet connection, no extra wiring); 1.2kW min power – no cabinet power burden, meets low-energy needs.

• Optional LCD Display: On-site personnel read data without opening cabinets, shortening troubleshooting time.

Application Effects
Since deployment, the data center’s monitoring improved significantly:

• Stable temperature and humidity: Temperature stabilized at 22±0.5℃, humidity at 50±2% RH – no corrosion/electrostatic damage; equipment failure rate down 95%.

• Efficient System Response: RS485-linkage optimizes fan/dehumidifier control – summer average temperature down 4℃, energy consumption reduced 18%.

• Lower Maintenance Costs: Replaceable probe cuts maintenance time from 1h to 10min (80% cost reduction); 304 stainless steel extends calibration cycle from 3 months to 12 months.

Conclusion
With high-precision measurement, 120℃ temperature resistance, 304 stainless steel corrosion resistance, and replaceable probe, DB510-DB120 meets power cabinets’ strict temperature and humidity monitoring needs. Its data center application proves it stabilizes temperature and humidity，reduces operational risks via strong adaptability and maintainability – an ideal choice for industrial scenarios like power and UPS cabinets.
