Multi-Parameter Water Quality Analyzer in Smart Secondary Water Supply Pump Stations

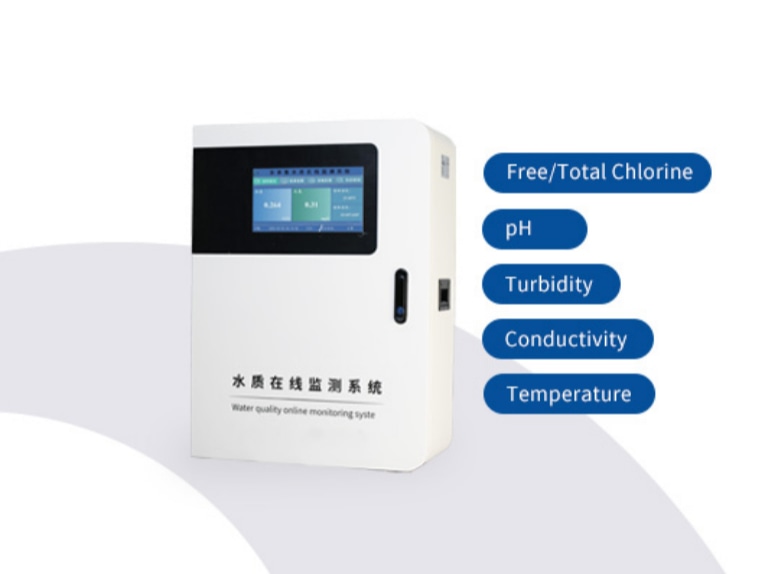

Application Case of DABECO W770 Multi-Parameter Water Quality Analyzer

1. Application Background: Water Quality Challenges in Secondary Water Supply
As the “last mile” of urban water supply, secondary water supply systems directly impact residential drinking water safety. However, traditional pump stations face persistent challenges:

Delayed monitoring: Reliance on periodic manual sampling results in poor data timeliness and delayed detection of risks such as insufficient residual chlorine, microbial growth, or turbidity caused by pipeline contamination.

High maintenance workload: Frequent manual cleaning and calibration increase operation and maintenance costs.

Limited functionality: Conventional systems monitor only a few parameters and lack integrated management of flow rate and pressure, making them unsuitable for smart water management.

To address these issues, a city launched a smart pump station upgrade project aimed at real-time monitoring, automatic alarms, and intelligent operation & maintenance. The project selected the DABECO W770 Multi-Parameter Water Quality Analyzer as the core monitoring device.

2. Solution Overview: Why DABECO W770
The W770 was chosen for its accuracy, reliability, and intelligent integration—perfectly suited to secondary water supply applications:

Comprehensive parameter coverage: Simultaneous measurement of residual chlorine, turbidity, pH, conductivity, and temperature, compliant with Hygienic Standards for Secondary Water Supply Facilities (GB 17051-1997).

High-precision sensor configuration:

Residual chlorine sensor (0–5 mg/L, ±5%)

Digital pH sensor (0–14 pH, accuracy <0.1 pH)

Low-range turbidity sensor (0.001–100 NTU, ±2%)

Digital conductivity electrode (0–200.0 mS/cm)

Intelligent operation & maintenance: Automatic cleaning, fault diagnostics, and over-limit alarms significantly reduce manual intervention. With a self-cleaning design, key components offer a service life of up to 3 years.

3. System Architecture & Integration
Component Function
W770 Main Unit Central controller integrating sensor inputs and data processing; supports HDMI output for on-site visualization
Sensor Array Residual chlorine (disinfection control), turbidity (pipeline contamination), pH (safety & taste), conductivity (mineral content), temperature (data compensation)
Expansion Modules Flow and pressure sensors for water consumption statistics and pressure monitoring, linked with pump control
Auxiliary Functions Equipment temperature & humidity control, motion-sensing lighting, and water-saving intermittent sampling
4. Intelligent Water Quality Control Functions
Real-Time Monitoring & Alarms
Automated Operation & Maintenance
Water & Energy Management

5. Application Results
Water quality compliance: Improved from 92% to 100%, with residual chlorine stabilized at 0.08–0.3 mg/L and turbidity ≤0.5 NTU
Operational efficiency: Monthly maintenance time reduced from 8 hours to 1 hour
Smart management: Coordinated control of water quality, water volume, and energy consumption, supporting long-term smart water operation

6. Conclusion
With precise monitoring, intelligent O&M, and scalable integration, the DABECO W770 Multi-Parameter Water Quality Analyzer effectively solves key challenges in secondary water supply pump stations. Its low maintenance cost, long service life, and expandability make W770 an ideal choice for smart pump station upgrades, providing a reliable and replicable solution for urban drinking water safety.
