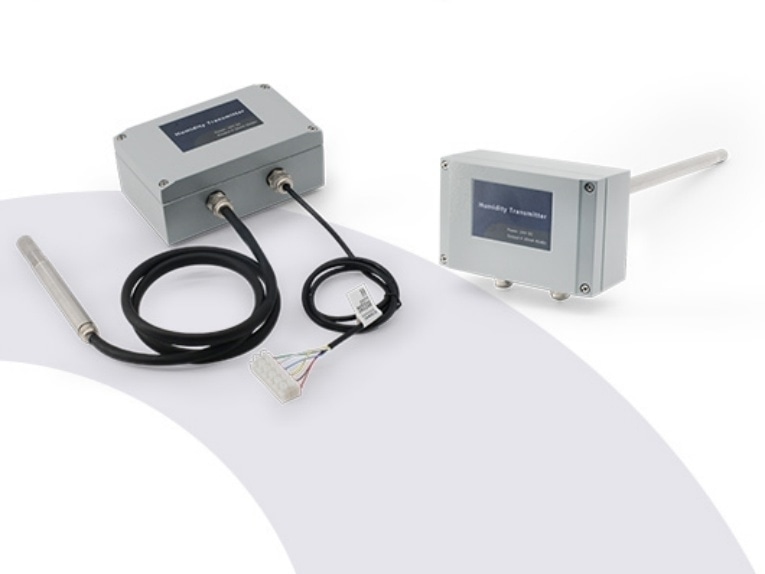

DB442 High-Temperature Humidity Transmitter

Reliable Monitoring for Environmental Test Chambers

In industries like electronics, new energy, and semiconductors, environmental test chambers simulate extreme conditions. Accurate temperature and humidity monitoring is critical—but also challenging due to high humidity (0–98% RH), wide temperatures (-40°C to 150°C), condensation, corrosion, and pressure fluctuations.

Key Challenges
Condensation: Causes drift or sensor failure
Corrosion: Moisture and gases damage probes
Pressure variation: Risks sealing and accuracy
Wide temperature range: Requires stable performance
DB442 Solution

The DB442 from DABECO is engineered for these harsh conditions:

Wide range: -40°C to 200°C, 0–100% RH
High accuracy: ±0.2°C / ±2% RH
Anti-condensation design: Stable even in heavy moisture
Durable materials: 316L stainless steel probe + aluminum housing
Pressure resistance: Up to 4 bar
Flexible installation: Probe up to 800 mm
Smart Integration
Outputs: 4–20 mA + RS485
Measures: Temperature, humidity, dew point, absolute humidity
On-site calibration for easy maintenance
Proven Results
Stable performance under high humidity and rapid cycling
Up to 90% reduction in sensor failure rates
Improved data reliability and test consistency
Conclusion

The DB442 delivers accurate, stable, and durable monitoring in demanding test chamber environments—making it an ideal solution for high-temperature, high-humidity, and condensation-prone applications.
