Single Phase Pad-mounted Distribution Transformer used in underground distribution systems

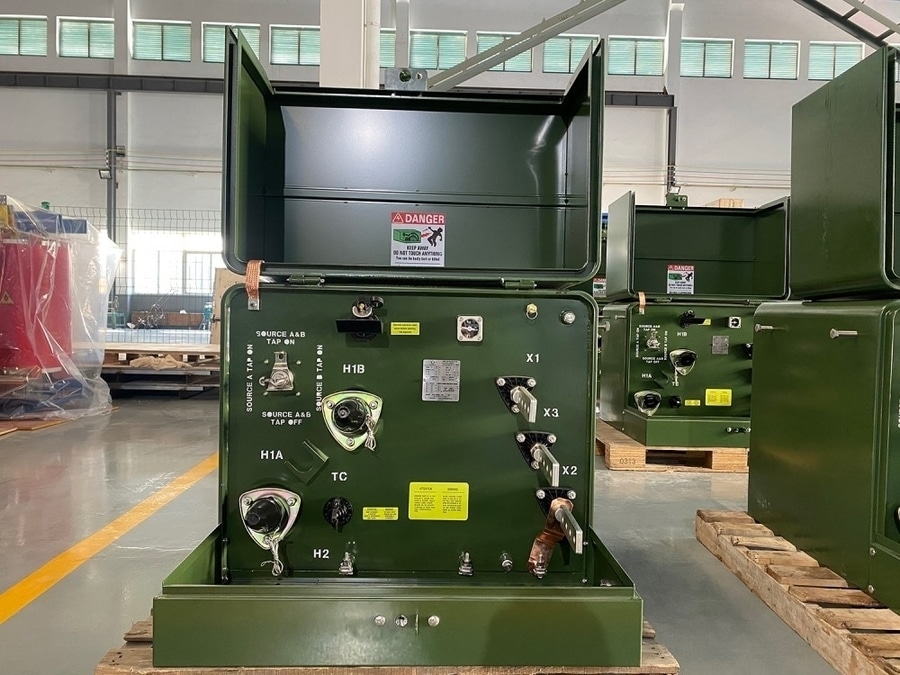

Single Phase Pad-mounted Distribution Transformer

Single-Phase Pad-Mounted Distribution Transformer is a ground-installed, fully enclosed transformer used in underground distribution systems. It steps down medium-voltage power (typically 7.2 kV–34.5 kV) to low-voltage service (120/240 V or similar) for residential and light commercial customers.

It is essentially the underground-equivalent of a pole-mounted single-phase transformer, but housed in a locked steel cabinet for safety and aesthetics.

Typical Specifications
·Primary Voltage: 7.2 kV, 12.47 kV, 13.2 kV, 13.8 kV, 22 kV, 24.9 kV, 33 kV
·Secondary Voltage: 120/240 V (most common), 240 V, 230 V
·Rated Power: 25–500 kVA (common range)
·Frequency: 50 Hz / 60 Hz
·Phase: Single-phase
·Cooling Method: ONAN (Oil Natural Air Natural)
·Insulation: Mineral oil or ester fluid
·Installation: Ground-mounted on concrete pad
·Enclosure: Tamper-resistant steel cabinet

Main Components
·Single-phase magnetic core
·High-voltage winding (distribution class)
·Low-voltage winding
·Sealed tank filled with insulating oil
·High-voltage bushings (inside HV compartment)
·Low-voltage bushings (LV compartment)
·Bayonet fuse / current-limiting fuse
·Load-break switch (optional loop-feed designs)
·Surge arresters
·Pressure relief device
·Grounding system
·Lockable compartments (HV and LV separated)

Common Ratings
Typical standard sizes:
·25 kVA
·50 kVA
·75 kVA
·100 kVA
·167 kVA
·250 kVA
·333 kVA
·500 kVA

Common Voltage Ratios
·11 kV / 120-240 V
·12.47 kV / 120-240 V
·13.2 kV / 120-240 V
·13.8 kV / 120-240 V
·22 kV / 230 V
·33 kV / 240 V

Applications
·Underground residential neighborhoods
·Housing developments and suburbs
·Light commercial buildings
·Schools and small campuses
·Street lighting systems
·Residential feeder loops
·Compact urban distribution networks

Key Features
·Fully enclosed & tamper-resistant (high safety in public areas)
·Designed for underground cable systems
·Very low visual impact compared to pole-mounted units
·Quiet operation due to sealed tank design
·Easy sectionalizing in loop-feed networks
·High reliability with minimal maintenance

Protection Features
·High-voltage bayonet fuse or current-limiting fuse
·Surge arresters (HV side)
·Pressure relief device
·Grounding and bonding system
·Optional load-break switch (loop-feed type)
·Overcurrent protection coordinated with upstream breakers

Routine Tests
Manufacturing tests typically include:
·Winding resistance test
·Turns ratio (TTR) test
·Insulation resistance (IR)
·No-load loss and excitation current
·Load loss and impedance test
·Applied and induced voltage tests
·Leak test
·Dielectric strength of insulating oil

Applicable Standards
·IEC 60076 – Power transformers
·IEEE C57.12.25 / C57.12.34 – Pad-mounted distribution transformer requirements
·IEEE C57.12.90 – Test code for liquid-immersed transformers
·IEC 60296 – Transformer oil standards

Performance Overview
·Efficiency: 98.5%–99.5%
·Service life: 25–40 years
·Cooling: Natural (ONAN)
·Operation: Continuous outdoor underground distribution support

A single-phase pad-mounted distribution transformer is widely used in modern underground power systems because it combines safety, compactness, and reliable residential power delivery, especially in suburban housing areas where overhead lines are not preferred.
