Full Line of Quick Release Ball Lock Pins
Many styles, material and sizes.

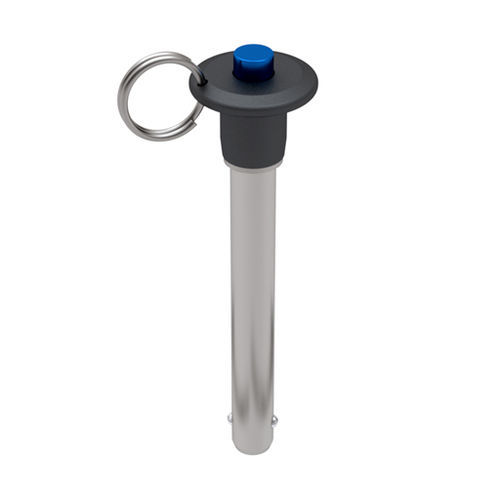

Fairlane Products (Fraser, MI) offers a complete lineup of quick release ball-lock pins that have a wide range of applications in fastening, locating and alignment. These positive locking pins will not release until the button on the handle is depressed, which then allows the balls to retract into the shank.
Fairlane quick ball lock pins and handles come in a variety of configurations and materials. Full stainless steel ball lock pins are available in button, ring, nautical and domed versions. They are available in a variety of lengths and diameters from 3/16 to 1/2 in. nominal diameter and 5mm to 16 mm nominal diameter with shanks made from both 17-4 and 300 series stainless steel. In addition to full stainless, ball lock pins are also available with alloy steel and aluminum handles, including L and T handle styles.
Also complementing the company’s full line of ball lock pins are spring-loaded pull pins that allow the user to quickly retract and engage the plunger for locating, fastening and quick-change operations. The housing of the pin is designed to be welded into place for strength. Pulling on the handle retracts the plunger fully into the housing of the pin. Additionally, Fairlane products also carries detent pins where the spring-loaded ball retracts when it is inserted or removed.
Fairlane Products ball lock pins also come with useful accessories such as receptacles, end caps and wire or rope lanyards.
In addition to ball lock pins, Fairlane Products also designs and manufactures a wide range of workholding and positioning components, replaceable grippers, rest pads and Swivots® — modular component workholding for holding and positioning of irregular contour surfaces, handle and levers, knobs and grips, equipment handles, hand wheels and cranks, hinges and latches, leveling supports, industrial rubber bumpers, stops and wheels, fixture clamps, clamping locating systems, work positioning elements, vises, grippers and mechanical linear actuators.
