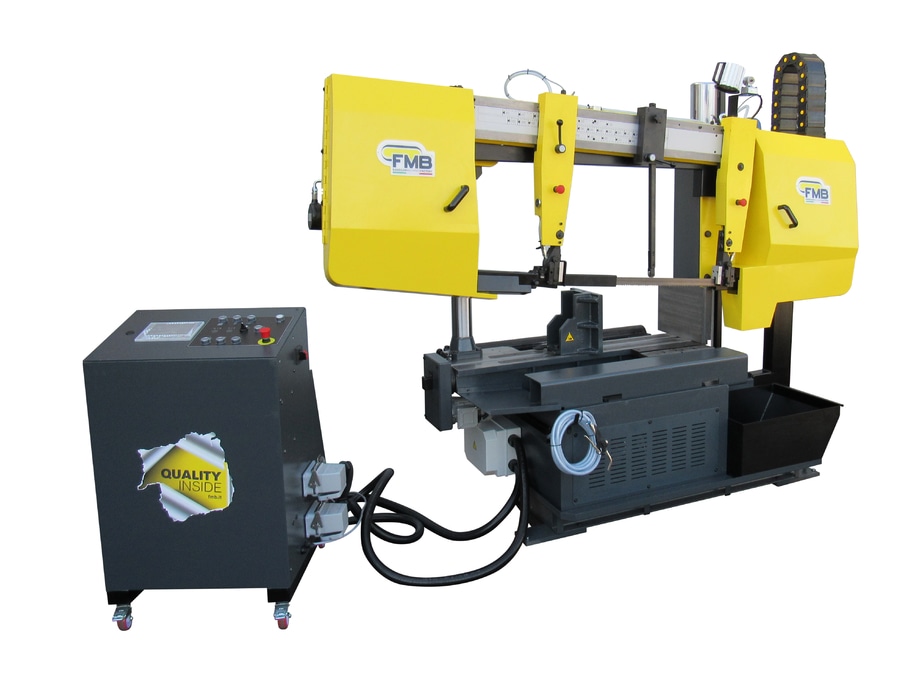

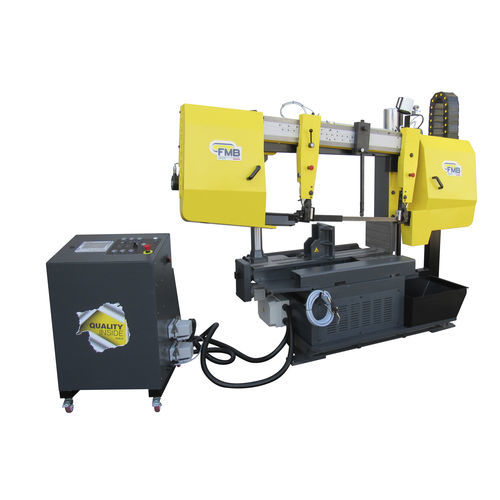

OLIMPUS 1 XL
Double column semiautomatic bandsaw with capacity up to 540mm in diameter and 1030mm in width
Semiautomatic band saw to cut at 0°.
Head structure made in steel.
Blade inclined of 5° to help section bars cut.
Device against blade vibrations to reduce noise.
Broken blade micro.
Cutting zone lightening.
Head approach on two chromate columns lubricated by a centralized system.
Head feeding system with hydraulic cylinder and front balanced valve for feeding regulation and cutting optimizing.
Blade cleaning brush driven by gearbox.
Dynamometric blade tensioning.
Blade guide with combined action of side bearings, carbide plates and top bearing, with a quick locking and unlocking system for the blade.
Gearbox in hardened and grinded steel gears lubricated with long lasting grease.
Material locking vice provided with motorized moving.
Vice plane with a hardened, wear and tear standing replaceable surface.
Very resistant work top supporting material on the loading side (PAO).
Roller for the material sliding on board to allow an easy entrance of the material.
