4G vs LoRaWAN vs LoRa vs NB-IoT for Remote Level Monitoring

Holykell wireless monitoring solution

Introduction
Many water tanks, reservoirs, fuel tanks, and industrial vessels are installed in remote areas where wired connections are difficult, expensive, or impractical.

Traditional level monitoring systems often require long-distance cables, complex installation, and high maintenance costs. Wireless level monitoring provides a smarter solution by allowing users to remotely monitor liquid levels, receive alarms, and manage assets through cloud platforms.

However, choosing the right wireless communication technology is critical. Different technologies, including 4G, NB-IoT, LoRa, and LoRaWAN, have different advantages.

What Is Remote Level Monitoring?
Remote level monitoring is a system that allows users to measure and view liquid levels from a remote location without manually checking the tank or vessel.

It is widely used for:

Water tanks
Reservoirs
Wells
Irrigation systems
Fuel storage tanks
Wastewater tanks
Industrial process tanks
A typical remote level monitoring system includes:

Level Sensor

The sensor measures liquid level through different technologies, such as:

Hydrostatic pressure measurement
Radar measurement
Ultrasonic measurement
Wireless Communication Module

The measured data is transmitted through:

4G
NB-IoT
LoRa
LoRaWAN
Cloud Platform

Then the data is uploaded to a monitoring platform for remote management.

Overview of 4G, NB-IoT, LoRa, and LoRaWAN
1. What Is 4G for Remote Level Monitoring?
4G is a cellular communication technology widely used for high-speed wireless data transmission. A 4G level monitoring system usually uses a level sensor, 4G communication module, and a Cloud platform.

Advantages of 4G
✔ Wide network coverage
✔ High data transmission speed
✔ Real-time monitoring capability
✔ No additional gateway required
✔ Suitable for video, images, and large data transmission
Limitations of 4G
✘ Higher power consumption
✘ Requires SIM card
✘ Battery-powered applications may require larger batteries
Typical Applications
4G is commonly used for:

Industrial water tanks
Fuel monitoring systems
Remote pumping stations
Real-time equipment monitoring
2. What Is NB-IoT for Remote Level Monitoring?
NB-IoT (Narrowband Internet of Things) is a cellular IoT technology designed specifically for low-power, wide-area applications. Compared with 4G, NB-IoT focuses on:

Low power consumption
Long battery life
Small data transmission
Advantages of NB-IoT
✔ Very low power consumption
✔ Long communication range
✔ Excellent indoor penetration
✔ Suitable for battery-powered devices
✔ Uses existing cellular networks
Limitations of NB-IoT
✘ Lower data transmission speed
✘ Not suitable for high-frequency data transmission
Typical Applications
NB-IoT is suitable for:

Remote water tanks
Smart water meters
Underground tanks
Agricultural irrigation monitoring
Environmental monitoring
3. What Is LoRa for Remote Level Monitoring?
LoRa (Long Range) is a wireless communication technology designed for long-distance, low-power communication. LoRa is mainly used for private wireless networks. A typical LoRa system includes:

LoRa sensor
LoRa gateway
Monitoring platform
Advantages of LoRa
✔ Long communication distance
✔ Very low power consumption
✔ Suitable for remote areas
✔ No cellular subscription cost
Limitations of LoRa
✘ Requires a gateway
✘ Communication range depends on environment
Typical Applications
LoRa is often used in:

Farms
Factories
Water plants
Large industrial sites
4. What Is LoRaWAN for Remote Level Monitoring?
LoRaWAN is a communication protocol based on LoRa technology. It defines how LoRa devices communicate with gateways and network servers. A LoRaWAN system usually includes:

LoRaWAN level sensor
LoRaWAN gateway
Network server
Cloud platform
Advantages of LoRaWAN
✔ Supports thousands of IoT devices
✔ Low power consumption
✔ Long-range communication
✔ Suitable for large sensor networks
Limitations of LoRaWAN
✘ Requires gateway deployment
✘ Lower data transmission speed
Typical Applications
LoRaWAN is suitable for:

Smart water management
Multiple tank monitoring
Smart agriculture
City-level IoT applications

Wireless Level Monitoring Solutions for Different Applications
Different industries have different requirements for remote level monitoring.

The following examples show how customers select suitable wireless solutions based on their actual applications.

Example 1: Remote Water Tank Monitoring in Agriculture
Customer Requirement
A farm needed to monitor water levels in several irrigation tanks located in remote fields.

Challenges:
Tanks were far away from the control room
No wired communication was available
Only periodic level updates were required
Long battery life was important
Selected Solution
NB-IoT Wireless Level Sensor

Why This Solution Was Selected
✔ Existing cellular NB-IoT coverage was available
✔ No additional gateway installation was required
✔ Low-power operation reduced maintenance frequency
Example 2: Industrial Water Tank Monitoring
Customer Requirement
An industrial plant needed continuous monitoring of process water tanks.

Challenges:
Required stable data transmission
Needed real-time alarms
Monitoring system needed cloud access
Selected Solution
4G Wireless Level Monitoring Solution

Why This Solution Was Selected
✔ Stable cellular coverage at the factory
✔ Faster data transmission
✔ Direct connection to cloud platform
Example 3: Multiple Water Tanks Monitoring in a Water Treatment Plant
Customer Requirement
A water treatment facility needed to monitor multiple tanks distributed across the site.

Challenges:
Many monitoring points
Need centralized data management
Cable installation was expensive
Selected Solution
RS485 Level Sensors + LoRaWAN Gateway

Why This Solution Was Selected
✔ One gateway could collect data from multiple sensors
✔ Reduced wiring cost
✔ Easy system expansion
Example 4: Reservoir Level Monitoring
Customer Requirement
A water resource management project required remote monitoring of reservoir levels.

Challenges:
Outdoor installation
Long-distance monitoring points
Limited maintenance access
Selected Solution
Submersible Level Sensor + LoRa Gateway Solution

Why This Solution Was Selected
✔ Suitable for outdoor environments
✔ Long communication distance
✔ Low maintenance requirements
HOLYKELL Wireless Level Monitoring Solutions
With more than 20 years of experience in industrial sensing technology, HOLYKELL provides complete wireless level monitoring solutions for water, wastewater, oil, agriculture, and industrial applications.

Instead of offering only wireless sensors, HOLYKELL provides two flexible solutions:

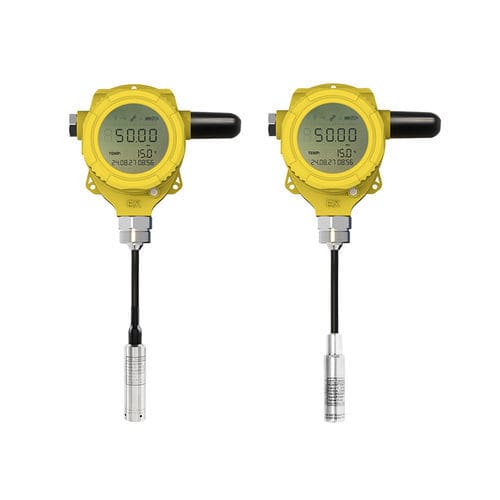

Solution 1: H2603 Wireless Water Level Sensor
The HOLYKELL H2603 Wireless Water Level Sensor is designed for remote liquid level monitoring applications. It combines hydrostatic level measurement with wireless communication technologies.

Typical applications include:

Water tanks
Wastewater monitoring
Irrigation systems
Oil and gas applications
Fire water tanks
Key Features
✔ Wireless communication through 4G/LoRa/LoRaWAN/NB-IoT
✔ Measuring range from 0–1m to 50m
✔ Accuracy up to ±0.25%FS
✔ Low-power lithium battery design
✔ IP68 protection for harsh environments
✔ Remote monitoring through IoT platform
✔ Historical data storage
✔ Device status monitoring
0918 wireless level sensor
Solution 2: Level Sensor + Wireless Gateway
For large projects with multiple measurement points, a sensor + gateway architecture is often more suitable.

Frequently Asked Questions
1. Which wireless technology is best for remote level monitoring?
There is no universal best technology. Choose the most suitable one.

2. What is the difference between LoRa and LoRaWAN?
LoRa is a wireless communication technology used for long-range data transmission.

LoRaWAN is a network protocol built on LoRa technology that manages communication between sensors, gateways, and servers.

3. Does a LoRa level sensor need a gateway?
Yes. A LoRa sensor normally communicates with a LoRa gateway, which forwards data to a cloud platform.

4. Does a 4G level sensor require a gateway?
No. A 4G wireless level sensor can directly connect to the cellular network and upload data to the cloud platform.

5. Which consumes less power, 4G or NB-IoT?
NB-IoT generally consumes less power because it is designed for low-data IoT applications.

It is commonly used for battery-powered remote monitoring devices.

6. Can one gateway connect multiple level sensors?
Yes. LoRaWAN gateway solutions are suitable for connecting multiple sensors in large monitoring networks.

7. What level sensor can be used for wireless monitoring?
Common options include submersible/radar/ultrasonic level sensors.

8. Can wireless level sensors send alarm notifications?
Yes. A remote level monitoring system can be configured to send alarms when level is too high or too low.
