How HYTORC Reduced Refinery Bolting Time by 73% at a Veracruz Pumping Station

What Problem Did the Veracruz Refinery Face?

A refinery maintenance team in Veracruz, Mexico cut flange bolting time from 5.5 hours to 1.5 hours — a 73% reduction — by switching from manual striking tools to the HYTORC STEALTH hydraulic torque wrench and HYTORC Washer system. The project eliminated reaction arm use entirely, removing a leading cause of crush-point injuries in industrial bolting operations.

What Problem Did the Veracruz Refinery Face?

The maintenance crew at a Veracruz pumping station faced two critical operational barriers during a scheduled turnaround:

• Tool availability bottlenecks slowed job sequencing, causing crews to wait idle between bolting tasks
• Reaction arm injury risk from standard hydraulic torque tools created an unacceptable safety exposure in confined work areas

In high-pressure refinery environments, bolting delays directly extend plant downtime — and every additional hour offline carries significant operational cost. Standard torque tools also require a reaction arm, a rigid metal brace that anchors the tool against the bolted joint. When mispositioned, reaction arms create crush-point hazards capable of causing serious hand and wrist injuries.

What Is the HYTORC STEALTH System and How Does It Work?

The HYTORC STEALTH is a low-profile hydraulic torque wrench engineered for confined-space bolting applications where standard tools cannot fit. It delivers precise, calibrated torque output without requiring a reaction arm when used with the HYTORC Washer — a critical distinction in safety-sensitive industrial environments.

The STEALTH operates in combination with the HYTORC Washer, a load-indicating washer that sits beneath the nut and serves as the tool's bracing surface. Because the tool reacts against the washer rather than an external arm, the operator's hands remain clear of all pinch points throughout the bolting cycle.

Key specifications of the HYTORC STEALTH system:
• Low-profile head fits into spaces inaccessible to standard torque tools
• Reaction arm-free design eliminates the primary crush-point hazard in hydraulic bolting
• Calibrated torque output supports accurate bolt load verification and eliminates rework
• Compatible with HYTORC Washer for self-contained, simultaneous tightening

Measurable Results: Veracruz Refinery Bolting Performance

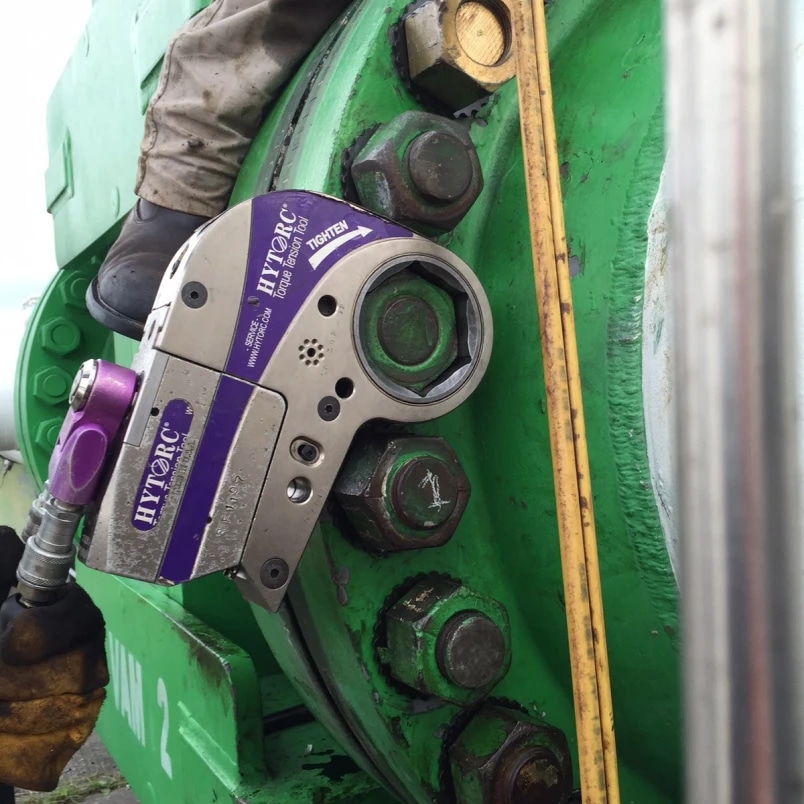

Job 1 — 24-Inch Class 600 Flange, Large Discharge Valve: The flange assembly comprised 28 large-diameter studs torqued to 4,060 ft-lbs each.

Result: 73% reduction in bolting time. Multi-tool simultaneous bolting — enabled by the HYTORC Washer system — was the primary driver of this improvement.

Job 2 — Scraper Trap Valve, Confined Space Application: The scraper trap valve presented a geometry that made standard torque tool access effectively impossible. The STEALTH's slim head profile allowed full tool engagement without modification to the work area or additional rigging. The job was completed within standard shift time — an outcome the crew reported as previously unachievable with conventional equipment.

What the Client Said: "With the implementation of the HYTORC system, we eliminated the use of sledgehammers and striking wrenches, reducing execution time, and preventing rework during startup testing. In addition, we ensured the safety of our operators and the surrounding environment."
— Maintenance team lead, HYTORC refinery client, Veracruz, Mexico

This outcome reflects a consistent pattern in HYTORC field deployments: eliminating manual impact tools reduces not only cycle time but also post-torque rework caused by inaccurate or inconsistent bolt load application.

Why Reaction Arm-Free Bolting Matters in Oil and Gas Maintenance

Reaction arm injuries are among the most preventable in industrial bolting — yet they remain common wherever standard hydraulic tools are in use. The reaction arm (or fixture) being used must resist the full torque output of the tool. If it slips, shifts, or is incorrectly positioned, the resulting force release is instantaneous and uncontrolled.

Removing the reaction arm from the bolting process — as the HYTORC Washer system does — eliminates the hazard at its source rather than managing it through procedural controls. For refineries operating under strict process safety management (PSM) frameworks, this is a material risk reduction, not a marginal one.

According to industry data, bolting-related incidents account for a disproportionate share of hand and finger injuries in upstream and downstream oil and gas maintenance — making tool selection a direct safety variable, not a secondary consideration.

Who Should Consider the HYTORC STEALTH System?

This bolting solution is most directly applicable to:

• Oil and gas refineries running scheduled turnarounds with time-critical flange work
• Petrochemical plants where confined-space piping connections limit standard tool access
• Maintenance contractors managing multi-flange jobs where simultaneous bolting would compress overall schedule
• HSE-focused operations seeking to eliminate reaction arm hazards from their bolting procedures
• Any facility where striking wrenches or sledgehammers are still in active use — a signal that bolting accuracy and operator safety are both at risk

Frequently Asked Questions: HYTORC Refinery Bolting

What is a HYTORC Washer and how does it improve bolting safety? The HYTORC Washer is a hardened load-indicating washer installed beneath the nut before bolting begins. It provides the reaction surface for the torque tool, eliminating the need for an external reaction arm and removing the associated crush-point injury risk from the operation entirely.

How much faster is the HYTORC STEALTH system compared to manual bolting? In the Veracruz refinery case, the HYTORC STEALTH system with four tools and washers completed a 28-stud, 4,060 ft-lb flange in 1.5 hours versus 5.5 hours with a single standard tool — a 73% time reduction on that specific job configuration.

Can the HYTORC STEALTH be used in confined spaces? Yes. The STEALTH is designed specifically for low-clearance applications. Its slim head profile allows engagement in spaces where standard square-drive hydraulic torque tools cannot fit without modification.

What industries use HYTORC torque systems? HYTORC serves oil and gas, petrochemical, power generation, subsea, mining, and heavy industrial sectors — any application where controlled, precise, and repeatable bolt load is operationally or safety-critical.

Take the Next Step

If your maintenance team is still using striking wrenches, reaction arm tools, or manual impact methods for critical bolting applications, the Veracruz results are a direct benchmark for what structured change delivers.

HYTORC works with refinery and plant maintenance teams to assess current bolting procedures, identify risk exposure, and recommend the right tool configuration for each application.

Contact HYTORC to discuss your bolting requirements
Published by HYTORC | Updated May 2026 | Case study data sourced from HYTORC field deployment, Veracruz, Mexico

HYTORC is a global manufacturer of industrial bolting systems, serving oil and gas, petrochemical, power, and heavy industry since 1968.
