Pneumatic Clamping Fasteners for Faster Machine Changeovers

Automated Clamping Solutions for Flexible Fixture Design

Pneumatic Clamping Fasteners are designed for quick-change applications, allowing multiple components to be secured in a single operation. By automating clamping, they reduce manual effort and simplify the changeover of tooling, plates, and fixtures.

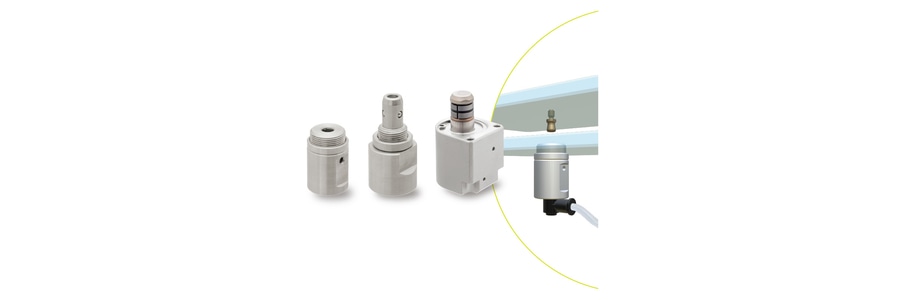

The lineup includes pin holding clamps, ball-locking clamps, and internal diameter (ID) holding clamps to suit different fixture designs and clamping requirements.

- Three Clamping Methods for Different Applications

Each type offers a different approach to securing components:

• Pin Holding Clamps: Pull down on a dedicated clamping pin to secure a fixture plate, keeping the top surface of the base plate flat.
• Ball-Locking Clamps: Use balls that are pushed outward against the tapered surface of a mating receptacle, generating clamping force to secure the fixture plate.
• ID Holding Clamps: Expand inside a prepared hole to grip a component by its internal diameter, requiring only a hole in the fixture plate.

These configurations offer flexibility when designing quick-change systems for different mounting and clamping needs.

- Compact Design for Space-Constrained Setups

The compact bodies allow installation in limited spaces, making these fasteners suitable for equipment where mounting space is restricted.

Depending on the model, clamping and release are controlled by air pressure, with different operating mechanisms available to meet application requirements. This makes it possible to integrate automated clamping into a variety of machine and fixture designs.

- Stainless Steel for Corrosion Resistance

Stainless steel construction helps resist rust and corrosion, making these fasteners suitable for applications in environments where material durability is important.

Potential applications include semiconductor manufacturing, food processing, pharmaceutical and cosmetic production, and packaging machinery.

With multiple clamping configurations and compact designs, IMAO Pneumatic Clamping Fasteners provide practical solutions for reducing setup time and simplifying frequent fixture changes.
