The Critical Role of Automotive-Grade Crystal Resonator in Dash Cams

The Critical Role of Automotive-Grade Crystal Resonator in Dash Cams

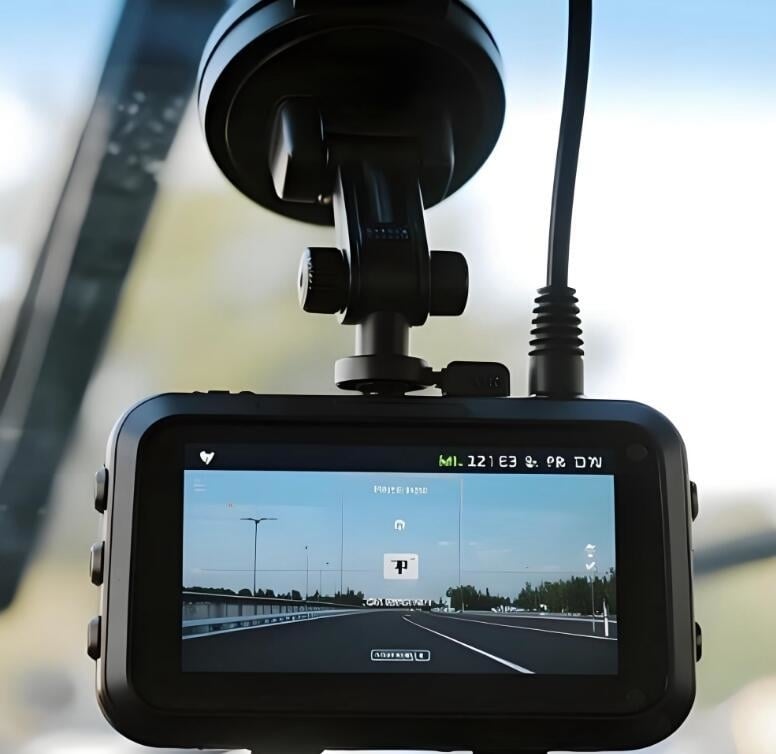

As an essential accessory in modern vehicles, the dash cam serves multiple critical functions far beyond simple video recording. It acts as a reliable witness in the event of collisions, provides vital evidence for insurance claims, enhances driver safety through continuous monitoring, and even supports advanced parking surveillance when the vehicle is off. The core component ensuring precise timestamping, reliable system startup, high-quality image processing, and stable wireless connectivity (such as GPS and Wi-Fi) is the crystal oscillator.

Interquip's automotive-grade crystal oscillator, model SMCE3225 12MHz (Part Number: 5YAA12000101KFA0Q1), is engineered to meet these rigorous demands. It has successfully passed compatibility certification with the GD32F105RCT6 microcontroller and is fully compliant with the AEC-Q200 standard, making it an ideal and reliable solution for dash cam applications.

Common Crystal Oscillator Parameters for Dash Cams

Stable and accurate frequency output is non-negotiable for dash cam functionality. Key parameters include:

Frequency Stability: Typically ranging from ±10ppm to ±30ppm, ensuring accurate timekeeping and reliable communication.

Operating Temperature Range: A broad range is crucial. Standard components cover -20°C to +70°C for general use, while high-performance models may support -40°C to +85°C or even up to 105°C for extreme environments.

Load Capacitance: Common values are 8pF, 10pF, or 12pF, which must match the microcontroller's requirements for proper circuit operation.

Frequency: Fundamental frequencies like 12MHz, 16MHz, or 24MHz are common, providing the core clock for processing and data transfer.

AEC-Q200 Compliance: This automotive reliability standard is essential for ensuring component longevity and performance under vehicle-specific stresses like temperature cycles and vibration.

Interquip's Solution in Focus

The model 5YAA12000101KFA0Q1 exemplifies these requirements with its robust specifications: an operational temperature range of -20°C to +70°C, excellent frequency stability of ±10ppm at room temperature, a load capacitance of 10pF, and a wide storage temperature range of -55°C to +125°C. This combination of performance and resilience makes it a perfect fit for the demanding environment of automotive dash cams.
