Vacuum Connectors

Vacuum Side Connectors　Socket/Plug pins

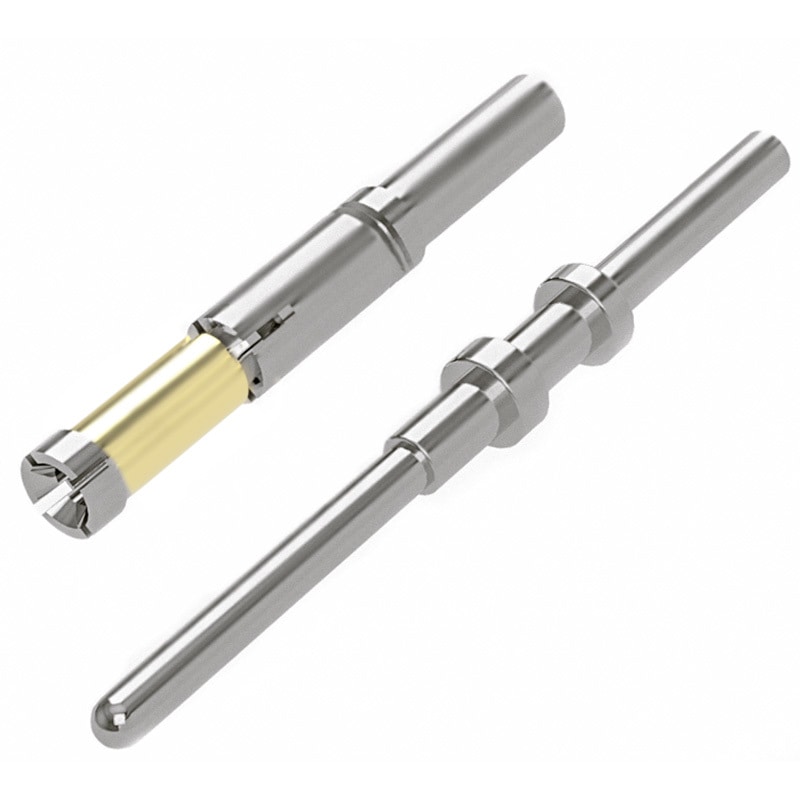

ThermocoupleSocket / Plug pins
MS Type
Short(Clamp)Type
Acceptable Plug : φ1.6mm/0.063"
Applicable Wire : AWG#16, #22


We offer K-type, T-type, and E-type materials for selection based on the material requirements.

[Supplementary Information about Thermo Couple Socket Pins & Plug Pins]

-Compensating Lead Wires

The wiring from a thermocouple to measuring devices is done using what is known as compensating lead wires.

These wires correct for errors caused by the temperature difference at the connection point between the thermocouple and the measuring device.

Therefore, it is necessary to use compensating lead wires of the same type as the thermocouple.

Using compensating wires or electrical wires of different materials can lead to temperature errors.



-Lifespan of Thermocouples

The lifespan of a thermocouple greatly varies depending on the temperature and environment in which it is used.

When used below the normal operating temperature in an oxidizing atmosphere, its lifespan is about 10,000 hours.

However, its lifespan significantly decreases when used at its upper temperature limit.

[Reasons Why Our Vacuum Connectors Are Chosen]

-The challenging development of vacuum components　


As a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs.

We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience.

Please feel free to consult with us.



-The Lineup of related components usable inside vacuum containers　

Our products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors

that support high current and high voltage applications.
