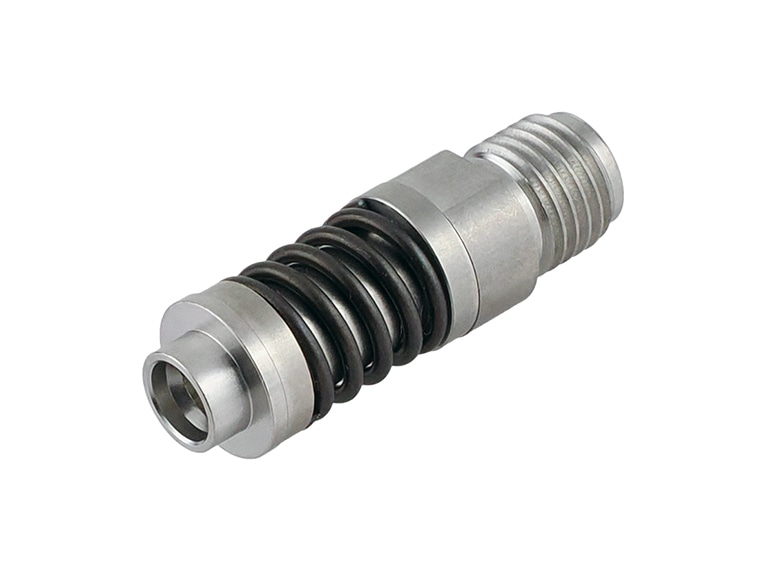

External Spring Type Adapter SMP(Male) to K2.92mm(Female)

Designed to solve your multi-port connection challenges

At the core of this connector is its **outer spring mechanism**. This design ensures constant pressure on the Reference Plane (RP) during mating, resulting in excellent performance characteristics. Especially with the **Smooth Bore (SB) type**, this outer spring effect maintains stable high-frequency characteristics and significantly improves measurement repeatability, even after repeated connections and disconnections.
We provide an environment where you can focus on your essential testing and development, free from the worries of unstable connections. It's available in three types: **Full Detent, Smooth Bore, and Catcher's Mitt.**

More information

Details

606 N First St, San Jose, CA 95112, USA

JC CHERRY INC.

Associated Trend items

Vacuum Connectors

Vacuum Side Connectors　Socket/Plug pins

ThermocoupleSocket / Plug pins MS Type Short(Clamp)Type Acceptable Plug : φ1.6mm/0.063" Applicable Wire : AWG#16, #22 We offer K-type, T-type, and E-type materials for selection based on the material requirements. [Supplementary Information about Thermo Couple Socket Pins & Plug Pins] -Compensating Lead Wires The wiring from a thermocouple to measuring devices is do...

More information

Transistor outline (TO) package test socket

Sockets for Power Transistor

TO Package Test Socket For QDPAK Size 25x37.3mm / 0.984x1.469" Compatible with AIMCQ120R020M1T, AIMDQ75R016M1H, etc. This socket is suitable for testing QDPAK. The QDPAK (Quadruple DPAK) package is characterized by high power density and thermal performance. - Kelvin Contact (Option) - For Burn-in Test - For evaluation/Verification [Applications] High-efficiency powe...

More information

Vacuum Connectors

What are Hermetic Connectors? Hermetic connectors for vacuum applications are terminal relays that hermetically seal and electrically connect the interior and exterior of containers sealing vacuums, pressures, gases, etc. They are used in semiconductor manufacturing, medical devices, research and experimental equipment, and more. At JC Electronics Corporation, we handle...

More information

Products associated

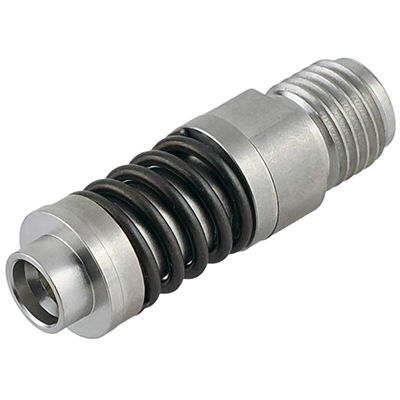

RF adapter
