Operating at -50℃! How JINPAT slip rings became a core component of radar systems.

Operating at -50℃! How JINPAT slip rings became a core component of radar systems.

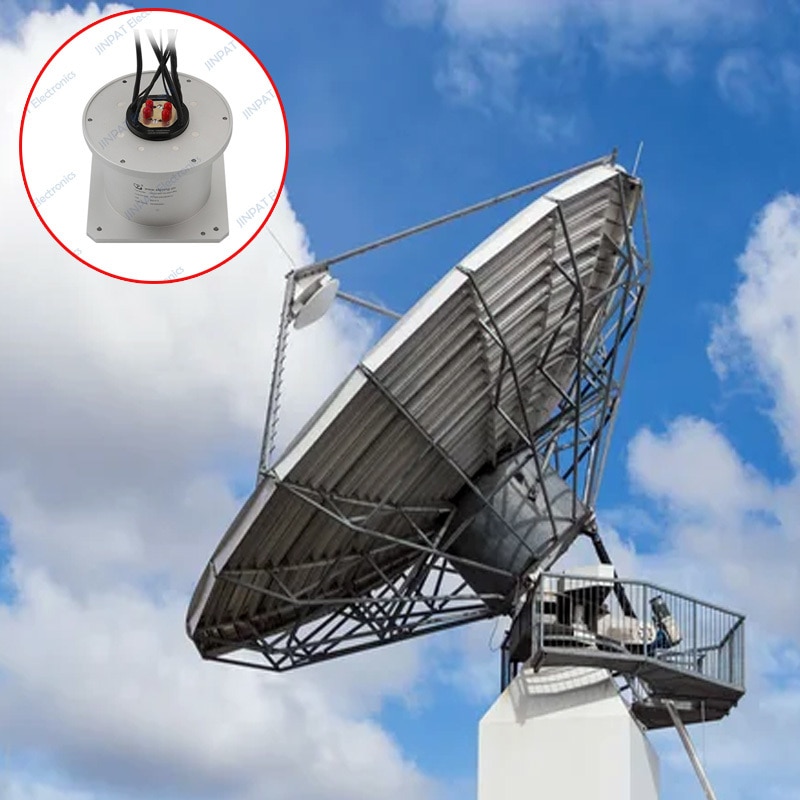

In modern radar systems, continuous and stable 360° rotation is standard practice for antennas. Ensuring seamless power and complex signal transmission during this rotation is the ultimate test for the core component—the slip ring. To address this, JINPAT has introduced the LPT hollow shaft slip ring, which demonstrates superior performance in radar applications thanks to its numerous outstanding features.

1. Unfazed by Harsh Environments: Protecting Radar Stations Around the Clock
LPT slip rings boast an IP54 or higher protection rating, effectively resisting wind, sand, salt spray, and frost intrusion. Operating at temperatures as low as -50°C, they ensure stable power and signal transmission for radar in extremely cold environments, guaranteeing uninterrupted detection missions.

2. Multi-Signal Fusion Transmission: Unblocking the Radar's "Information Artery"
Innovatively integrating four high-frequency channels, it can simultaneously and efficiently transmit electrical and video signals, solving the problems of interference and signal loss inherent in traditional slip rings, ensuring the integrity and real-time nature of radar detection data.

3. Lightweight and Convenient Integration: Empowering Flexible Radar Design
Utilizing a lightweight design and convenient installation structure, it significantly reduces the burden of antenna rotation. The unique hollow shaft design provides a natural channel for cables, making the overall structure more compact and rational.

4. Deeply Customized Appearance: Seamlessly Adapting to Diverse Radar Platforms
Offering appearance customization services, the slip ring shape, size, and installation method can be flexibly adjusted according to the radar's internal space, mechanical interfaces, and wiring requirements, achieving "tailor-made" integration from large fixed radars to small mobile radars.

In summary, JINPAT LPT hollow shaft slip rings, through their comprehensive advantages in environmental tolerance, multi-signal transmission capabilities, lightweight structure, and deep customization, meet the stringent requirements of modern radar systems for rotating connection components. They are not only the "physical joint" connecting rotating and stationary parts, but also the "core hub" ensuring the performance of the radar system, and are key to improving the reliability and combat effectiveness of radar equipment.
