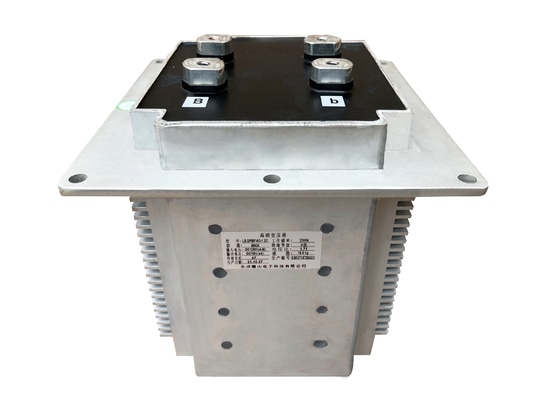

Center Tap Process Requirements for HFTs Critical for performance
In-depth Analysis of Neutral Point Wiring
Center tap termination in HFTs requires symmetry control, HF loss mitigation, insulation withstand, and mechanical robustness.
1.Symmetry Control: Turn deviation <0.5%; bifilar winding reduces proximity loss by 30%.
2.HF Loss Mitigation: Fan-out Litz wire connection cuts AC resistance 15-20%; stepped thermal transition limits ΔT ≤5K.

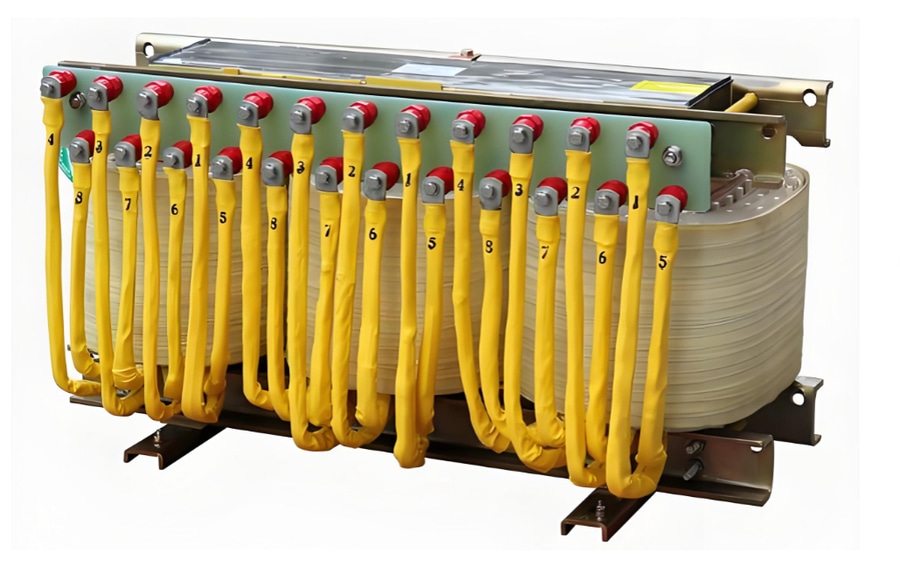

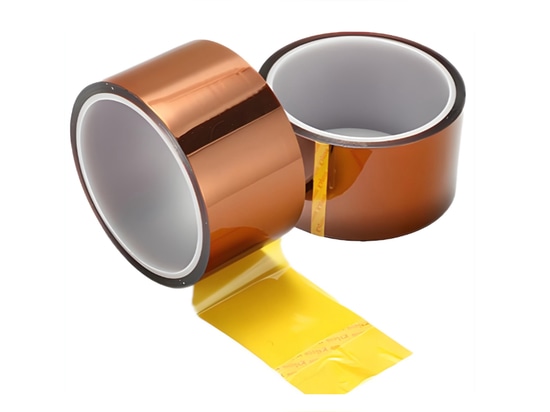

3.Insulation & Withstand: Tri-layer insulation (polyimide+epoxy fiberglass+Teflon), >3kV/mm; tapered grading boosts PD inception voltage 30%.
4.Mechanical Robustness: S-shaped strain relief (R≥10×wire diameter) compliant with MIL-STD-810G; CTE-graded materials eliminate 80% thermal stress. Validation: Dynamic balance (inductance deviation<2%), partial discharge (<5pC), and accelerated aging tests (-40°C~125°C cycling).
About Lushan Electronics With 50 years of expertise in transformer/reactor manufacturing, we serve industries like renewables, healthcare, and rail transit. CE/TÜV-certified, we deliver tailored solutions balancing performance and cost globally.
