Pressure Relief Device (PRD) & Gas Relay Coordination in Power Transformers
Explosion-Protection Synergy

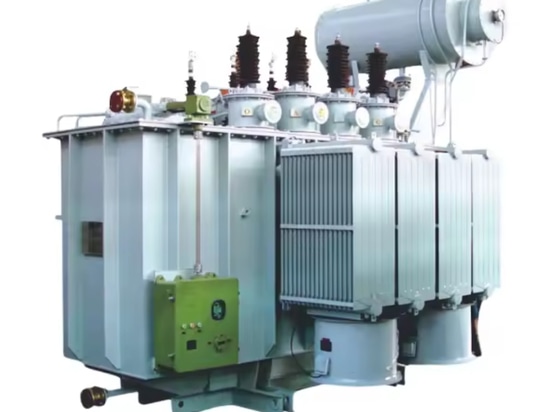

Introduction In high-voltage power transformers, rapid pressure surges from internal arc faults and gradual gas accumulation due to overheating pose critical safety risks. A coordinated protection system combining a Pressure Relief Device (PRD) and a Gas Relay (Buchholz Relay) ensures comprehensive defense against explosions and insulation failure. This document details their individual functions, collaborative roles, installation requirements, and maintenance protocols per international standards (IEC 60599/IEEE C57.104).
1. Component Functions

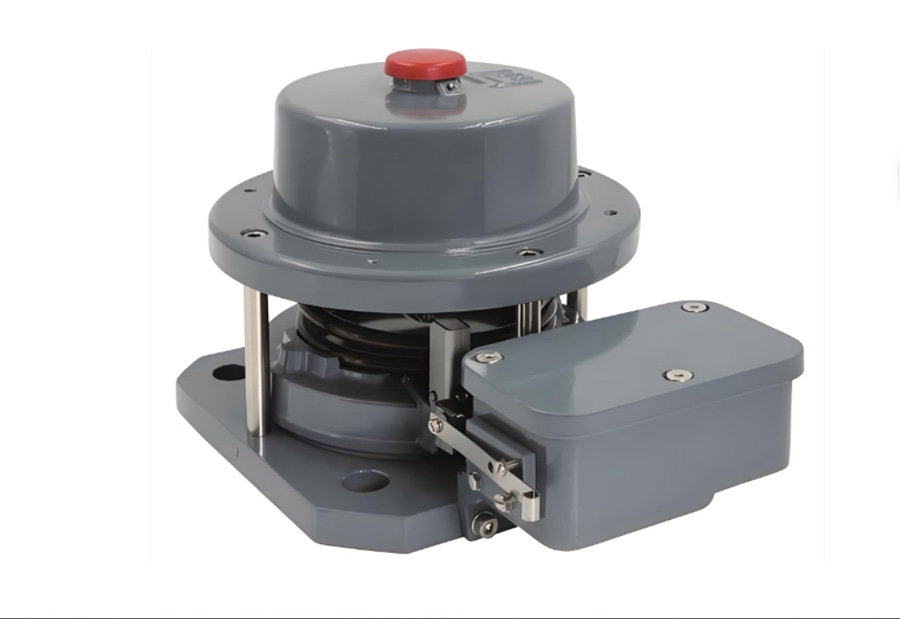

1.1 Pressure Relief Device (PRD)
- Purpose: Mitigates sudden overpressure events caused by arc faults within the transformer tank.
- Activation Threshold:Vents explosively at 70±5 kPa within <10 milliseconds to prevent tank rupture.
- Key Advantage: Ultra-fast response to catastrophic faults, diverting high-pressure gases safely.

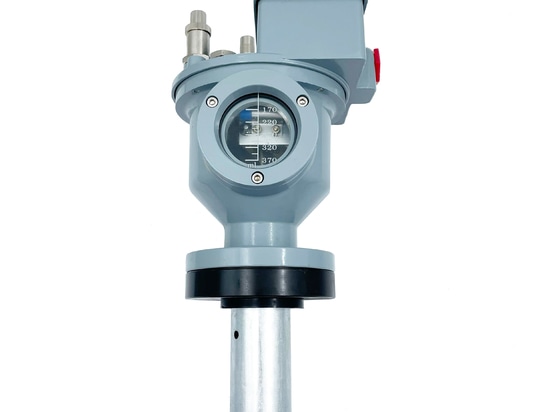

1.2 Gas Relay (Buchholz Relay)
- Purpose: Detects slow gas accumulation and oil flow irregularities from incipient faults (e.g., overheating, partial discharges).
- Activation Thresholds:
oAlarm Stage: Triggers at 250 mL of collected gas (indicating minor faults).
oTrip Stage: Activates at oil flow rates ≥0.8 m/s (signifying severe overheating or arcing).
- Key Advantage: Early warning for developing faults before they escalate.
2. System Synergy & Failure Modes
- PRD Role: Addresses instantaneous arc-fault pressures beyond the relay’s response capability.
- Relay Role: Monitors slow gas/oil anomalies that PRDs cannot detect.
- Critical Collaboration:
oPRD prevents tank explosion during violent faults.
oRelay identifies latent issues (e.g., winding hotspots) via gas analysis, enabling preemptive maintenance.
3. Installation Guidelines
- Gas Relay: Must be tilted ≥5° to ensure proper gas collection in the chamber.
- PRD Placement: Installed >1.8 m away from the relay to avoid venting interference.
- Alignment: Both devices require secure piping with minimal bends to avoid false triggers.
4. Maintenance & Testing
- PRD: Annual pressure threshold tests and mechanical inspections.
- Gas Relay: Biannual checks for gas volume calibration and flow sensitivity (per IEC 60599).
- Additional Measures:
oOil sampling for dissolved gas analysis (DGA) to validate relay readings.
oPost-fault inspections after PRD activation.
Conclusion
The integration of PRD and Gas Relay creates a robust protection hierarchy for transformers, addressing both sudden and progressive faults. Adherence to installation and maintenance standards ensures reliability, reducing downtime and catastrophic risks. For further details, refer to IEEE C57.104 (gas relay guidelines) and IEC 60255 (pressure device standards).
