Enhancing PCB quality control with Sensofar's 3D metrology solutions

Optimize PCBs analysis to copper circuits, vias, and pads.

Producing a printed circuit board (PCB) involves a series of critical steps that directly influence its overall performance. Both the surface finish and key dimensions of a PCB are crucial in determining its functionality. For this reason, the PCB industry demands highly controlled fabrication environments, including clean rooms and highly precise deposition and assembly techniques.

During production, PCBs are evaluated using various methods, including X-ray analysis, 2D defect inspection, SEM imaging, and 3D optical metrology. With over two decades of expertise in 3D optical metrology, Sensofar is dedicated to delivering advanced solutions for PCB quality assurance.

Comprehensive solutions for PCB quality control

Sensofar’s optical areal microscopes enable fully automated measurement and analysis, avoiding any need for direct sample handling. Alongside standard options, Sensofar also offers dedicated solutions, such as SensoPRO software, which is capable of characterizing pads of various shapes, whether conventional or unusual.

This document provides an in-depth overview of these processes, emphasizing how Sensofar applies its expertise in surface characterization, from data acquisition to analysis, to ensure the highest standards in PCB quality control.

Sensofar offers a comprehensive portfolio of solutions for the automated acquisition and analysis of PCB processes, providing manufacturers with numerous opportunities.

- Precise and consistent results: Sensofar’s automated systems deliver highly accurate measurements, minimizing errors and reinforcing overall product quality.
- Greater efficiency: Automation reduces the time and manual effort typically required for measurements, streamlining workflows and enabling manufacturers to focus resources on other stages of production.
- Optimized yield: Sensofar’s optical profilometers generate critical data and insights for process optimization, enabling manufacturers to fine-tune parameters and increase both yield and efficiency.
- Tailored solutions: Systems can be customized to align with specific manufacturing requirements, ensuring flexibility and top performance.
- Enhanced product quality: Reliable measurements confirm that products meet the strictest quality standards, thereby reducing the risk of defects and enhancing customer satisfaction.

Sensofar stands as a cutting-edge technology company, committed to upholding the highest standards in surface metrology.

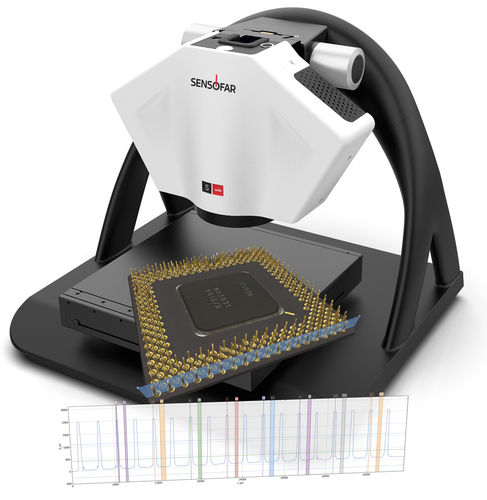

Sensofar delivers high-precision optical profilers that integrate confocal, interferometry, and focus variation technologies. These range from standard configurations designed for research and quality inspection labs to fully non-contact metrology solutions tailored for in-line production environments.
