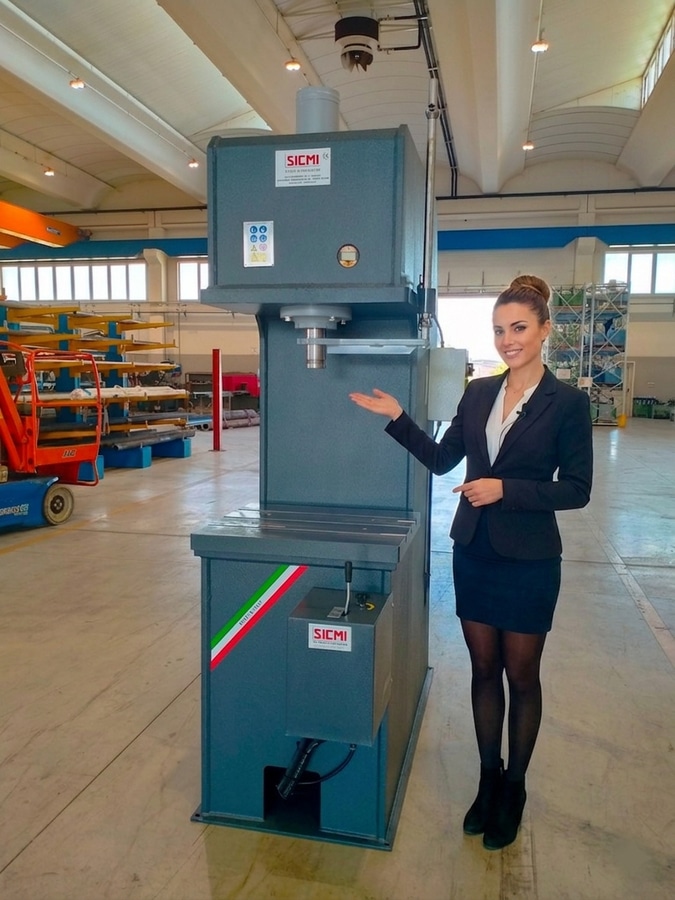

20 Ton C-frame Hydraulic Press

20-Ton C-Frame Hydraulic Press: Efficiency and Precision in Industrial Molding

In the sheet metal deformation and precision mechanical machining sector, the choice of machinery defines the quality of the final product.. Sicmi, a leader in the design and production of hydraulic presses, presents a 20-ton C-frame press, completely customized to the customer's request.

Thanks to its characteristic gooseneck structure, this hydraulic press offers optimal accessibility to the work area from three distinct sides, facilitating loading, unloading and precise positioning of the pieces. With a power of 20 tons, a cylinder stroke of 500 mm and a piston center recess of 330 mm, the machine guarantees high performance even for the most complex machining operations..

Technical Features and Innovation
The press is equipped with a two-speed hydraulic power unit (approach and working at 9 mm/sec) driven by a powerful 4 kW motor, which maximizes productivity by reducing downtime in the operating cycle.Standard features include:

Ergonomic lever control: Positioned frontally for intuitive and safe control on the operator's right side.

Digital pressure gauge: Integrated into the structure for real-time, millimetric monitoring of applied pressure.

Grooved lower plane: A large 600x600 mm table equipped with 3 parallel T-slots for quick and safe fixing of the moulds.

Anti-rotation device of the stem and stop micron: Designed to ensure maximum repeatability and accuracy of the up and down strokes.

Entirely designed in Italy and CE certified, this hydraulic swan neck press represents the ideal synthesis between mechanical reliability and precision, positioning itself as the ideal solution for mechanical workshops aiming for excellence in stamping..

To receive more information about our industrial molding solutions, contact the Sicmi sales office.
