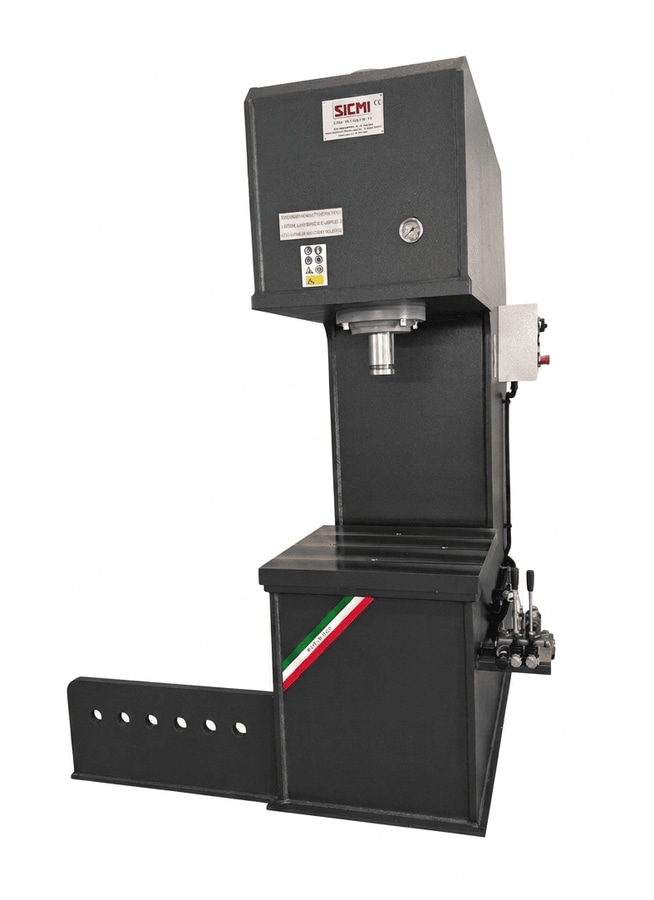

Custom 70 Ton C-frame Hydraulic Press

New Customized PCR 70 C-Frame Hydraulic Press: Tailor-Made Straightening Solutions

Sicmi expands and consolidates its metalworking offerings with a new, specialized version of the PCR 70 C-frame hydraulic press. Designed to ensure maximum precision and efficiency in straightening operations, this solution confirms the company's strong aptitude for the creation of customized hydraulic presses.

Technical Features and Customizations
The PCR 70 model develops a power of 70 tons and stands out for its robust C-frame design, with a 450 mm piston center recess and a 500 mm cylinder stroke. The wide 600 mm table clearance and the 700 x 600 mm milled lower table provide optimal workspace for part handling.

Among the key elements of this customization stand out:

Auxiliary Cylinder Integration: A plate machined and welded directly to the main structure to accommodate an additional cylinder .

Distributor and Side Split: equipped with a dedicated hydraulic distributor and a side split specially designed for the easy passage of flexible hoses .

Two-Speed ​​Hydraulic Power Unit: 4 kW motor that ensures an approach speed of 9 mm/sec and a working speed of 5 mm/sec, to combine speed of execution and accuracy .

Performance, Control and Safety
The press is equipped with a lever control and a free rod complete with punch . As per Sicmi standards, the machine complies with current regulations and is supplied with CE certification and an operation and maintenance manual .

This achievement further demonstrates Sicmi's ability to respond flexibly to the most complex production needs, designing reliable, high-performance hydraulic machinery for the mechanical engineering industry.

If you're looking for a hydraulic press to suit your workshop's needs, contact our offices for personalized assistance from our technicians.
