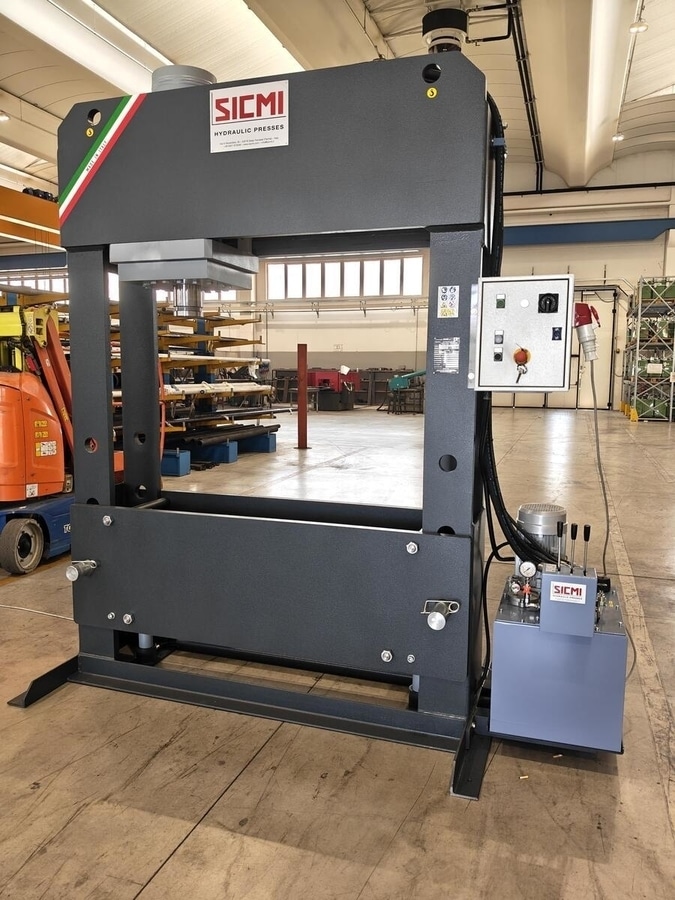

150-ton hydraulic press with motorized table

150 ton hydraulic press with hydraulic table lifting

In the world of mechanical processing and sheet metal forming, the PFF 150 M hydraulic press with motorized table represents a reliable, versatile, and time-tested solution. Widely appreciated by industry professionals, this press combines a robust 150-ton frame with handling systems designed to optimize work times and reduce operator fatigue.

The value of integrated hydraulic movement
The real distinctive element of the PFF 150 M hydraulic press lies in the complete hydraulic automation of the key positioning components:

Hydraulic work table lifting: The height of the support surface is adjusted directly via a motor and hydraulic system, eliminating the need for complex manual interventions and ensuring quick and safe positioning.

Transverse displacement of the hydraulic cylinder: The lateral translation of the cylinder (with a stroke of up to 900 mm) is also hydraulically controlled. This allows the thrust point to be positioned with extreme precision relative to the workpiece.

Main performance and technical features
The PFF 150 M hydraulic press with motorized table offers a 1500 mm clearance between the uprights, ideal for handling medium to large-sized components. The maximum clearance between the cylinder rod and the platform is 900 mm, while the piston stroke is 500 mm.

Equipped with a 4 kW dual-speed hydraulic power unit (approach speed of 22 mm/sec and working speed of 3 mm/sec), the machine guarantees safety, accuracy and fluidity in the controls, regulated via ergonomic levers and a CE control panel.

Thanks to the combination of solid “Made in Italy” carpentry and electrical and hydraulic system components from selected local suppliers, the PFF 150 M electro-hydraulic press confirms itself as one of the best performing options on the market for workshops seeking flexibility and durability over time.

For more details on technical specifications or to request a personalized quote, contact the Sicmi sales team.
