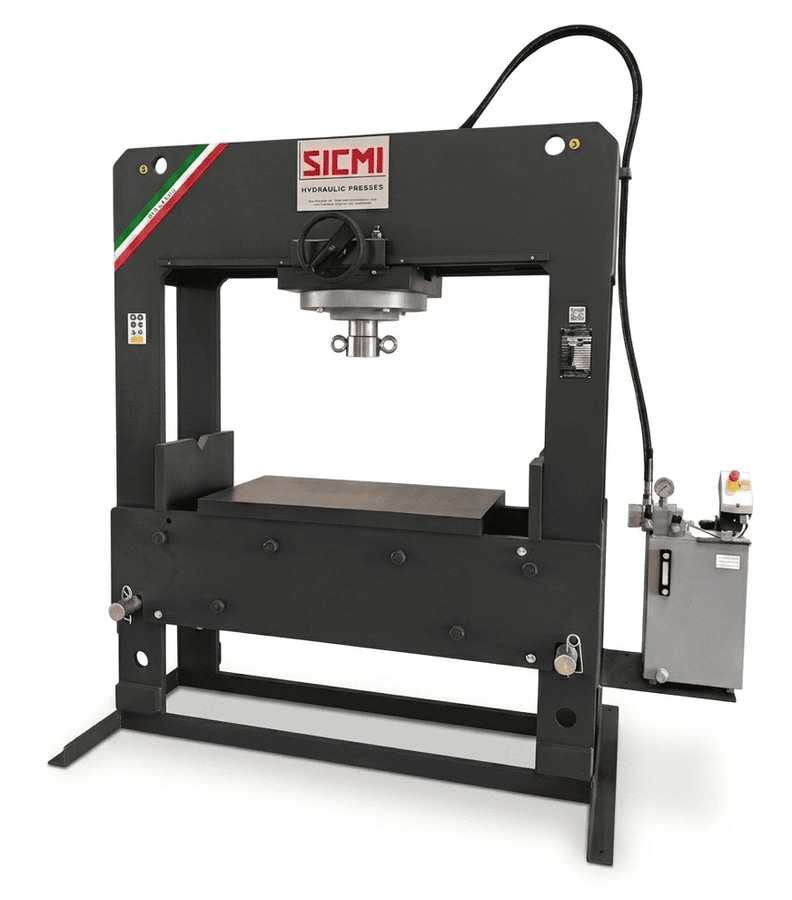

150-ton double-column hydraulic press: PSS 150 ML

PSS 150 ML double-column hydraulic press: power and precision for mechanical machining

Sicmi confirms the quality and robustness of its industrial solutions with the delivery of a double-column hydraulic press, model PSS 150 ML, a reliable machine designed to meet the bending, straightening and assembly needs of the most demanding mechanical workshops.

Technical features and high performance
The PSS 150 ML electro-hydraulic workshop press stands out for its 150-ton capacity, ensuring maximum structural stability even under heavy loads. With a 1500 mm clearance between uprights and a 1200 x 550 mm work surface, the machine offers a spacious and comfortable operating area.

Among the main features are:

Mobile cylinder: the transverse movement of the cylinder is carried out via a manual handwheel, allowing the thrust point to be positioned with extreme accuracy along the axis of the machine.

Adjustable pallet with chain: the height of the worktop is easily adjustable in 3 positions thanks to the chain lifting system, reaching a maximum clearance of 900 mm between the stem and the pallet.

Two-speed hydraulic power unit: Equipped with a 1,5 kW motor, the power unit ensures a rapid approach speed (9 mm/sec) and a precise working speed (2 mm/sec), managed intuitively via the control lever.

Safety and accessories included
The scope of delivery includes a pair of V-prisms for positioning and machining cylindrical or profiled elements, compliance with all CE certification directives, and a complete use and maintenance manual. Aesthetically, the machine features the classic and elegant industrial finish of RAL 7016 (anthracite gray) for the frame and RAL 7001 for the cylinder.

Sicmi hydraulic presses represent a guarantee of Made in Italy quality, designed to last over time and improve the efficiency of industrial production processes.

Are you also looking for a hydraulic press for your workshop?
Contact our offices for a free consultation.
