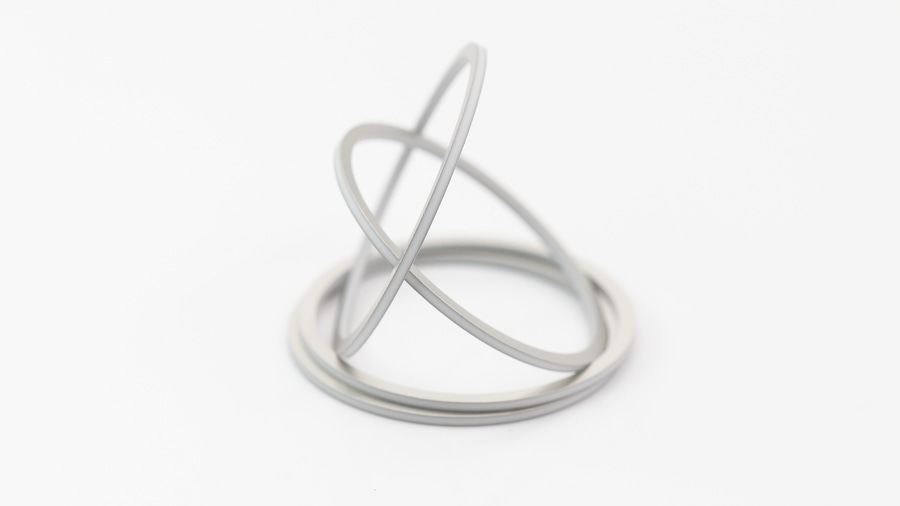

Metallised Ceramic Rings for Image Intensifier Tubes(IIT)

Image Intensifier Tubes

Innovacera’s metallised ceramic rings are used in image intensifier tubes for night vision equipment and other instruments.

Specifications:
-High purity alumina ceramics-95-96% alumina.
-Metallization-Mo/Mn metallized with Nickel plating.
-Customised sizes and metallisation patterns available.

Four ceramic rings are used in one image intensifier tube.
Each metalized ceramic ring serves not only as a part of the electrode conductive path, but also as a mechanical positioning and vacuum holding function. The rings are often precisely bonded through brazing or metal support structures to form a cylindrical main structure.

Functional:
Realize electrode cascade and electric field distribution:
Supporting components such as photocathodes, MCPs, and phosphorescent screens;
Maintain vacuum packaging and mechanical stability.

Applications:
- Head-mounted night vision
- Spectrometers
-Medical imaging device
-Surveillance cameras

Innovacera specializes in metallized ceramics for more than 13years.
Our advantages:
-Existing samples for testing
-Rich experience in metallized ceramics
-Customised solutions.
