Silicon Nitride Ceramic Substrates in Electric Drive Systems for New Energy Vehicles

The Application Advantages of Silicon Nitride Ceramic Substrates in Electric Drive Systems for New Energy Vehicles

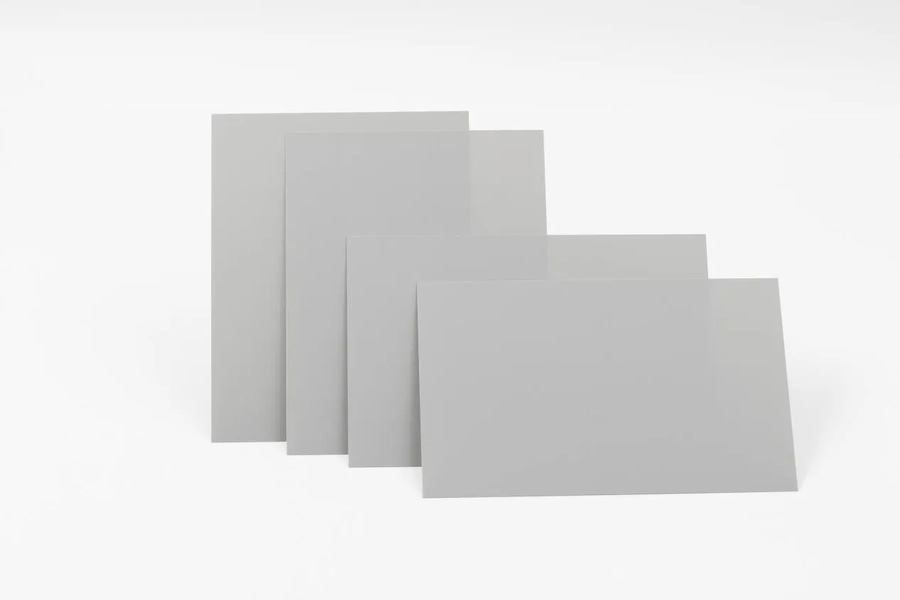

In the electric drive system (motor driver/Inverter) of new energy vehicles, the IGBT power module or power semiconductor module is the core component. They are responsible for converting the direct current (DC) from the battery into alternating current (AC) to drive the motor, while also withstanding high currents, high voltages, and frequent thermal cycles. Silicon nitride (Si3N4) ceramic substrates, with their high thermal stability, high mechanical strength, and excellent electrical insulation properties, have become an indispensable basic material for these power modules.

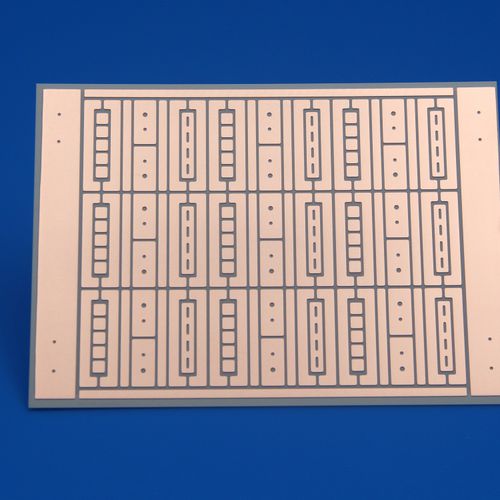

It is usually used as the internal support and heat dissipation substrate within the module, directly supporting IGBT or diode chips, and combining with the copper leads or metallization layers in the module packaging to form an “insulated and highly conductive” core structure, thereby ensuring the stable operation of the electric drive system under high power density and harsh environments.
