Porous Ceramic Filter Wafer

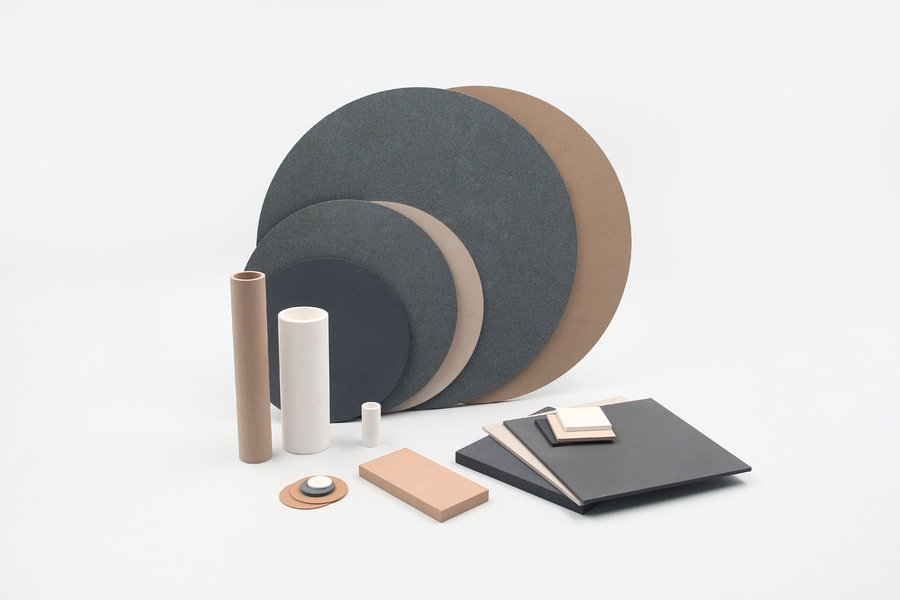

Alumina Porous Ceramic Plate

Innovacera have two materials as Porous ceramics one is Aluminum Oxide and the other one is Silicon Carbide. For Aluminum oxide, the common pore size we make is 1um, 15um, 30um, 40um, 50um and 100um. Silicon carbide general pore size is 15um, 30um and 50um, both material porosity is 40%-50% . For other hole size and porosity, it can be customized as well with large quantity.

Between two, Aluminum oxide is more common used than silicon carbide as it is cost effective. But if you need to use under the max working temperature 800 degree-100degree, silicon carbide is only the one that available because Aluminum oxide with max 800 degree.

With properties like excellent chemical resistance, good wearing and erosion resistance in acid and alkali conditions, withstanding high temperature and uniform pore structure, porous ceramics are excellent material as filters in various industries. Here are part of common use:

1.Water Filtration: Porous ceramics can filter sediments, bacteria and other pollutants in water.

2. Air Filtration: Porous ceramics can remove contaminants and particulate matter from the air.

3. Oil and Chemical Filtration: Porous ceramics can separate impurities from oils and solvents, improving the quality of products.

4. Catalytic Filters: Porous ceramic can filter unwanted byproducts to facilitate chemical processes in automotive and industrial applications.
