We have incorporated a new vacuum dryer into our Test Center

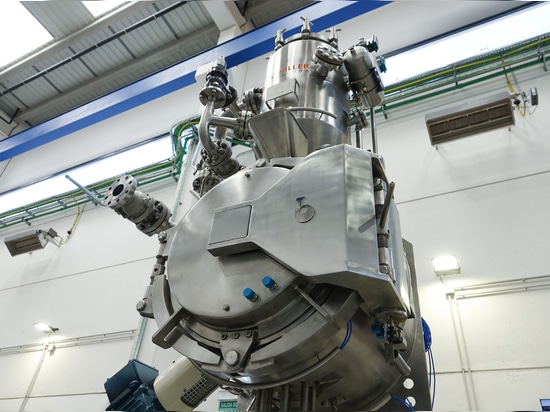

TURBODRY MHT-200RS Paddle Dryer

Horizontal vacuum paddle dryer and reactor

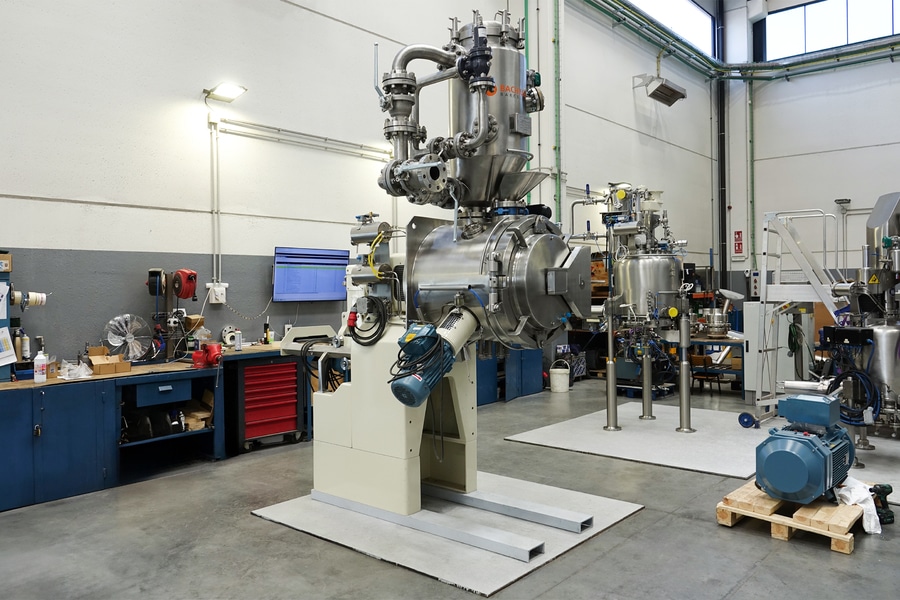

At Bachiller, we are finalizing the manufacturing of the new TURBODRY MHT‑200RS vacuum dryer, which will soon be installed at our Test Center in Parets del Vallès, Barcelona.

This horizontal paddle reactor-dryer is designed for demanding vacuum drying and reaction processes, especially with pseudo-plastic products and high-viscosity materials.

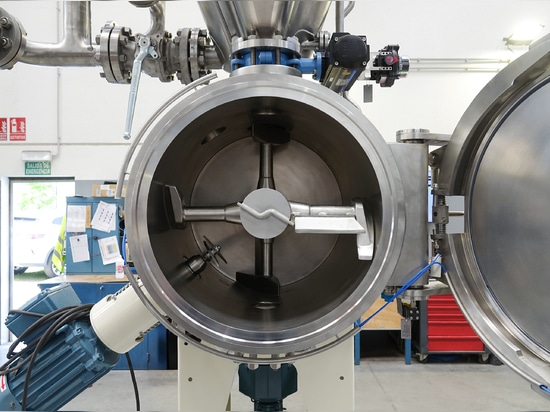

Its construction features a fully heated body, shaft, and paddles, ensuring optimal heat transfer and precise thermal control, even under complex processing conditions.

The unit can be configured with two paddle types, depending on the application:
- Ploughshare paddles, for intensive mixing with high shear and turbulence.
- Flat paddles, ideal for gentle mixing where product morphology must be preserved.

Key specifications:
- Useful volume: 147 L
- Material: AISI 904L
- Operating pressure: -1 / +15 bar(g)
- Operating temperature: up to 220 °C
- Design code: ASME VIII Div. 1
- ATEX classification: Internal Zone 0/20 – External Zone 1/21
