Installation is a measurement procedure, not only a mounting task

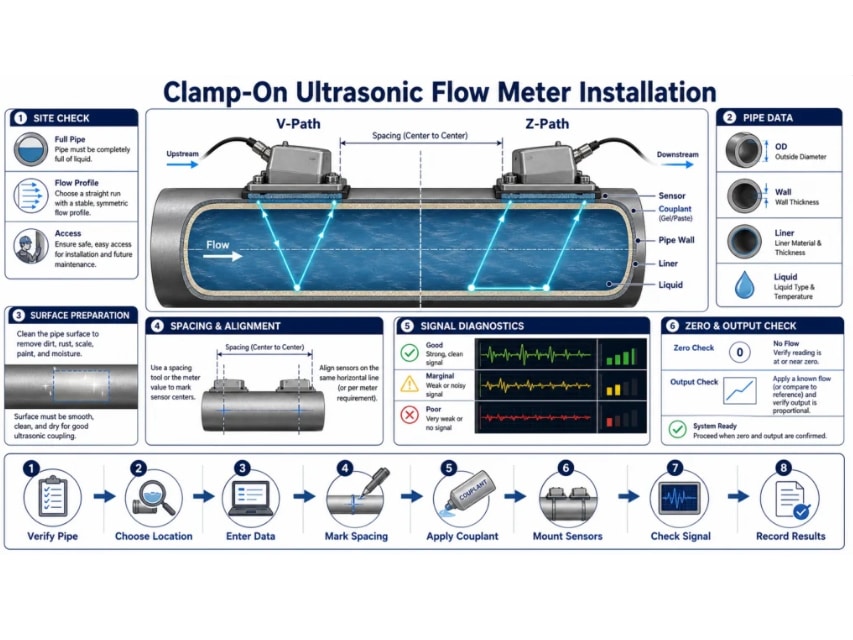

A clamp-on ultrasonic flow meter can be attached without opening the pipe, but a mechanically secure installation can still produce a wrong flow result. The instrument calculates through pipe dimensions, acoustic path, transit times, and configured units. An error in wall thickness, liner data, transducer arrangement, flow direction, or output scaling can survive a neat-looking installation.

This procedure covers transit-time clamp-on meters used on liquid-filled closed pipes. It is suitable as a commissioning framework, not as a replacement for the manual of the selected instrument, the site safety procedure, or a project-specific metering specification. Transducer spacing, supported pipe ranges, diagnostic limits, cable rules, and straight-run requirements must come from the actual product and approved project documents.

1. Freeze the measurement and safety basis
Before touching the pipe, identify why the point is being measured and what decision will be made from it. A temporary trend for troubleshooting, a pump performance check, a thermal energy calculation, and a permanent process totalizer have different evidence and output requirements. Record the expected flow direction, normal operating range, possible reverse flow, liquid state, pipe pressure and temperature, and whether the process can change during commissioning.

Complete the required permit, access, working-at-height, hot-surface, electrical, and hazardous-area controls. External installation removes the need to penetrate the pipe; it does not remove hazards around operating equipment. Confirm that surface preparation will not damage a pressure boundary or a protective system. If corrosion is suspected, obtain approval before removing scale or coating.
