Double-sheet detection is a classification measurement

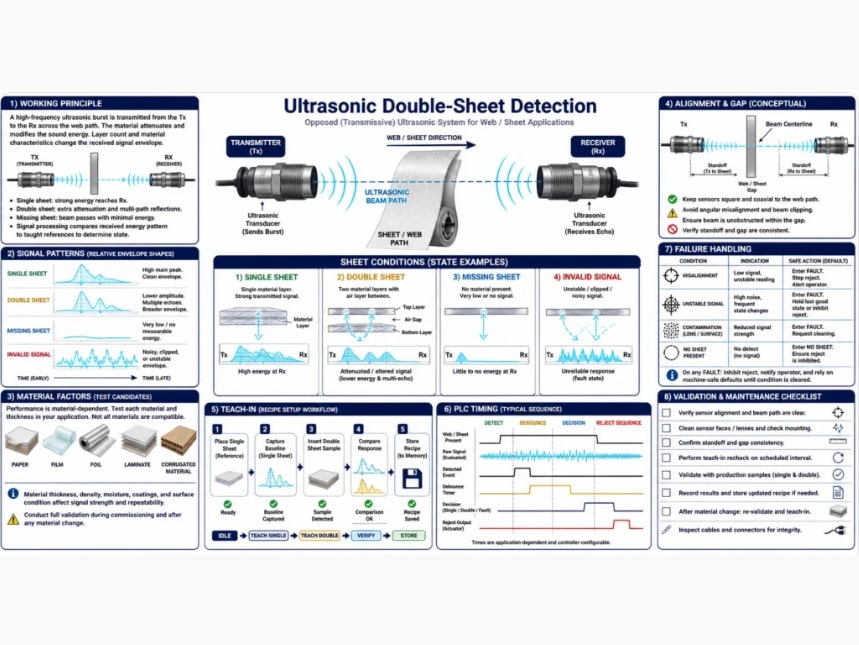

An ultrasonic double-sheet sensor places a transmitter and receiver on opposite sides of the material path. The acoustic signal crossing no sheet, one sheet, and two sheets changes because each air-material interface transmits, reflects, and attenuates energy differently. The controller classifies the received response as missing sheet, single sheet, double sheet, or an invalid condition.

The useful output is not a generic thickness measurement. It is a reliable decision among defined material states while sheets move, flutter, overlap, wrinkle, change lot, or carry print and coatings. A threshold that works on one paper stack may fail on a plastic film, metal foil, corrugated board, adhesive label, wet sheet, or a new material batch. The application must be taught and validated with representative samples.

Why ultrasound can distinguish layers
Air and solid materials have very different acoustic impedances. When airborne ultrasound encounters a sheet, only part of the energy passes through. A second sheet introduces more interfaces and often a thin air layer between sheets, changing the received amplitude, waveform, phase, or correlation. A missing sheet produces another response. The exact separation depends on material, thickness, porosity, stiffness, coating, surface texture, frequency, angle, sensor geometry, and electronics.

Sheets pressed together without an air gap can be more difficult to distinguish than loosely separated sheets. Conversely, a wrinkled single sheet can create variable angle and path length that resembles a double-sheet response. The sensor is therefore measuring the acoustic condition of the stack, not counting visible edges.
