How Automotive Ultrasonic Parking Sensors Work

How Automotive Ultrasonic Parking Sensors Work

What Is an Automotive Ultrasonic Parking Sensor?
Automotive ultrasonic parking sensors help drivers detect nearby obstacles when reversing or maneuvering in tight spaces. They are widely used in modern parking assistance systems because they provide fast and reliable short-range obstacle detection. By sending ultrasonic waves and analyzing the reflected signals, the system can estimate the distance between the vehicle and nearby objects and warn the driver in real time.
An automotive ultrasonic parking sensor is a short-range detection device installed on the front bumper, rear bumper, or both. It is designed to measure the distance between the vehicle and nearby obstacles such as walls, poles, curbs, or other vehicles. These sensors are commonly integrated into driver assistance systems to improve parking safety and reduce the risk of minor collisions.
Working Principle of Automotive Ultrasonic Parking Sensors

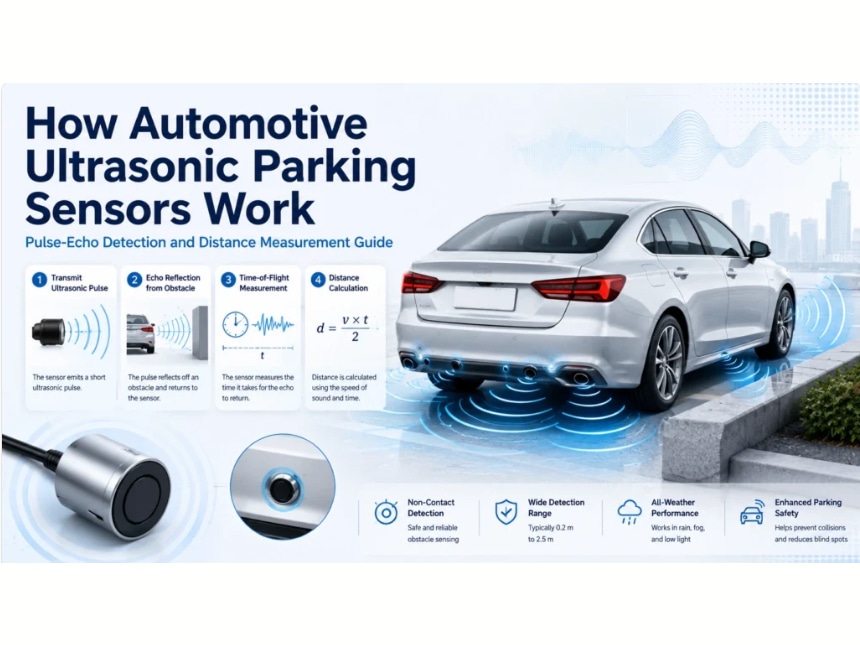

Automotive ultrasonic parking sensors work based on the pulse-echo principle. When the system is activated, the sensor emits high-frequency ultrasonic waves into the surrounding area. Once these waves strike an object, they are reflected back to the sensor.
The control unit measures the time it takes for the ultrasonic wave to travel to the object and return. Based on this time-of-flight value, the system calculates the distance between the vehicle and the obstacle. The closer the object is, the faster the reflected signal returns.
In most vehicles, the rear parking sensors are activated automatically when reverse gear is engaged. Front parking sensors may also operate during low-speed maneuvering, depending on the vehicle system design. The processed distance data is then converted into audible or visual alerts to help the driver judge how close the obstacle is.
