Ultrasonic Atomization: Mesh Atomizer Plate vs Ultrasonic Atomizing Transducer

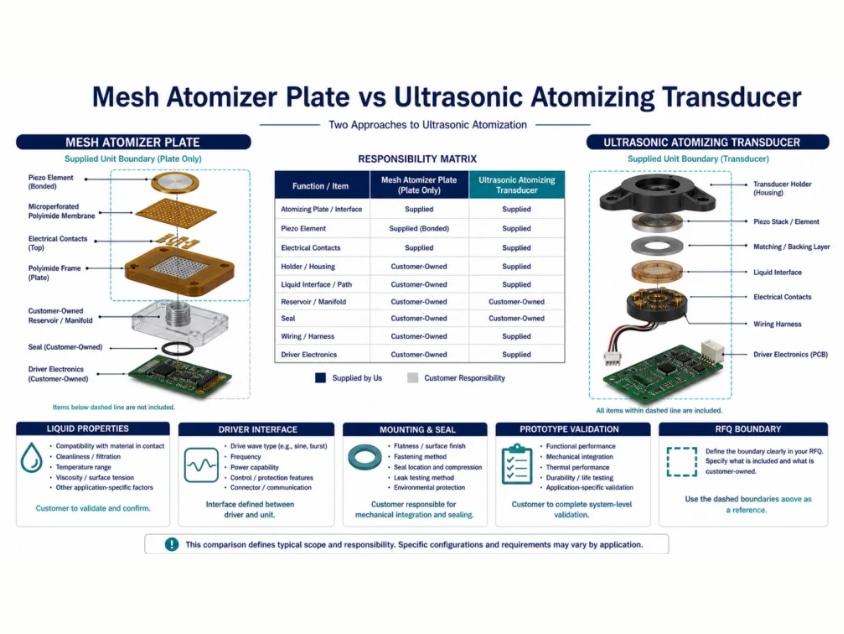

Ultrasonic Atomization: Mesh Atomizer Plate vs Ultrasonic Atomizing Transducer
First decide what the supplier is expected to deliver
“Ultrasonic atomizer” can describe a piezoelectric element, a bonded mesh plate, an assembled liquid-contact component, a transducer with a driver board or a complete appliance subsystem. These are different procurement boundaries. The correct choice depends less on the word atomization than on who owns the liquid feed, mechanical seal, electrical drive, control logic and final aerosol validation.
A mesh atomizer plate is appropriate when the customer already has the surrounding mechanics and electronics or intends to develop them. A more complete ultrasonic atomizing transducer can reduce integration work when its mechanical interface, liquid compatibility, electrical input and control behavior match the system. Neither option can be selected from target frequency alone.
The functional chain from electricity to droplets
Electrical excitation makes the piezoelectric element deform. In a vibrating-mesh design, that motion is coupled into a perforated membrane. Liquid reaches the active mesh, and oscillation drives liquid through the apertures to form droplets. The result depends on the coupled structure: piezoelectric element, bond, mesh material and aperture pattern, liquid loading, fixture, seal and drive waveform.
PIEZO.COM’s official overview of piezoelectric ultrasonics describes the converse piezoelectric effect and atomization as an ultrasonic application. It also treats the practical device as an engineered ultrasonic solution rather than a bare ceramic specification.
Frequency is therefore a system response, not an isolated purchasing label. Bonding and clamping shift resonance relative to a free component. Liquid mass and viscosity change load. Drive voltage and waveform affect amplitude and heat. A stable bench mist with water does not prove performance with the intended formulation, orientation, duty cycle or enclosure.
