MV Fault Current Limiter

The fastest limiting and switching device in the world

FCL-limiter is a fault current limiter, based on pyrotechnic technology, which can limit a fault current passing trough it within the first half cycle, and enables switching in 10 ms. The use of FCL-limiter allows equipment to remain in service even if the prospective fault current exceeds its rated peak and short-time withstand current, and in the case of circuit breakers, also its rated short-circuit making and breaking current. Replacement of equipment can be avoided or at least shifted to a later date. In case of newly planned network fault current limiters allow the use of equipment with lower ratings which renders possible considerable cost savings.

Main Features:
•Conform to CIGRE Technical Brochure 239,497
•Conform to IEEE Std C37.302-2015
•Conform to IEC 62271-1 and IEC 60282-1
•Indoor or outdoor application

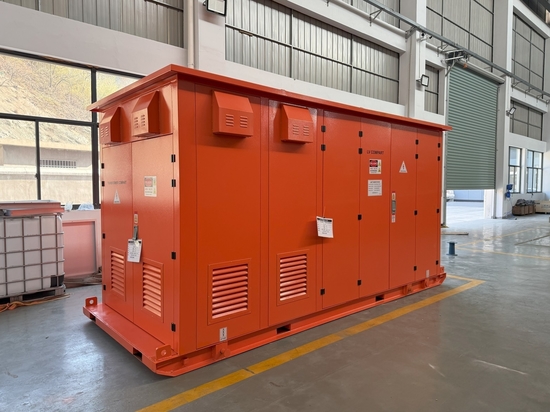

•Mounted in loose type as well as a metal-clad switchgear panel
•High duration with climate, land or offshore,cold winter or hot summer
•Easy to be installed and maintained, save money
•High reliability proofed in lots of installations

Technology advantages:
•Protection of customer’s investment
•Reduces costs without replacing existing electrical facilities such as circuit-breakers, busbars, cable systems
•Cogeneration – Integration of distributed power generation to fully loaded system
•Solves short-circuit problems in new and extended systems

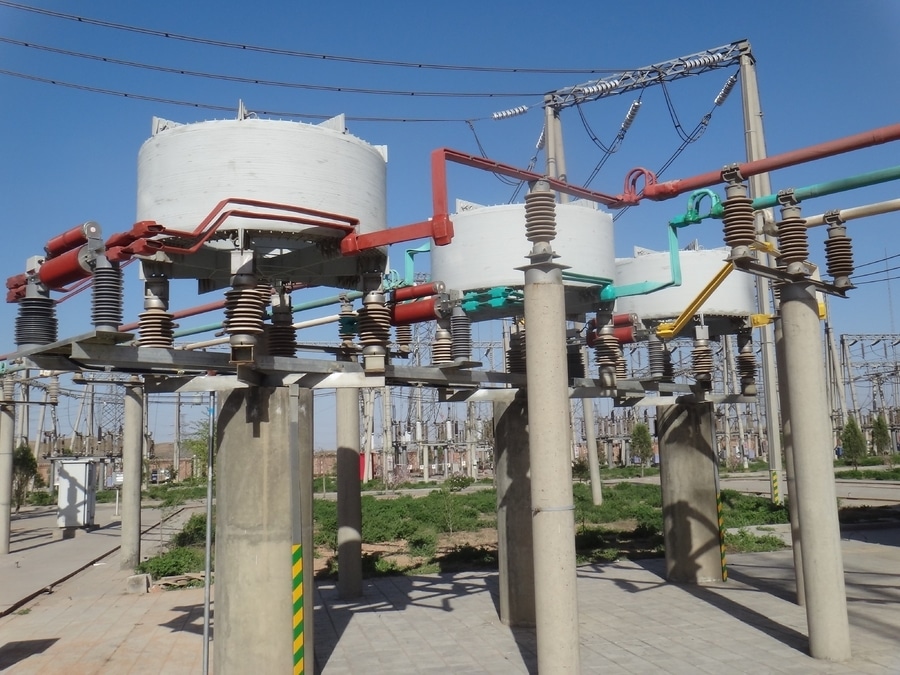

•Minimization of electrical losses caused by bypass current limiting reactor
•Optimum solution for interconnection of switchgears
•Reliability proven in many successful installations
•Rich engineering experience and expert knowledge makes us a trustworthy partner for your current limiting needs

Main Competitive Comparison
•ABB Is-limiter
•G&W CLiP Current Limiting Protector
