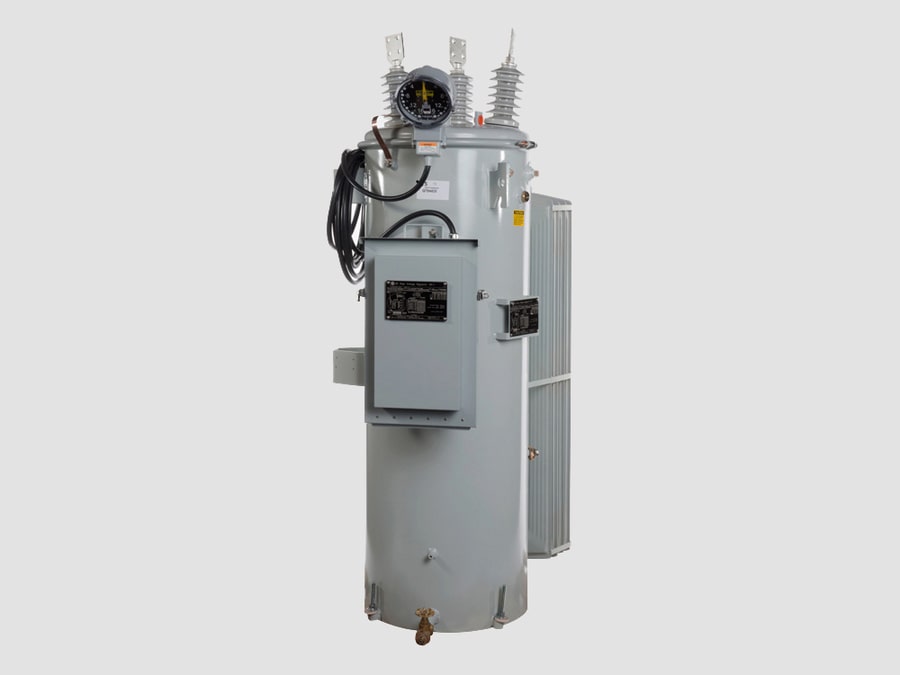

Medium Voltage Regulator (MV Regulator)

Medium Voltage Regulator

A Medium Voltage Regulator (MV Regulator) is an electrical device used to automatically maintain and stabilize the voltage level of medium-voltage distribution systems by increasing or decreasing the line voltage. It improves power quality, compensates for voltage drops along feeders, and ensures electrical equipment receives a stable supply voltage.

It is commonly installed in MV distribution networks (typically 2.4 kV–35 kV), especially on long rural feeders, industrial power systems, and utility distribution lines.

1. Main Functions
·Voltage Regulation
·Boosts voltage during low-voltage conditions.
·Reduces voltage during high-voltage conditions.
·Maintains voltage within acceptable limits.

Typical regulation range:
·±5%
·±10%
·±16 steps (common utility design)

2. Main Components

1) Regulating Transformer
·Autotransformer type is commonly used.
·Provides adjustable voltage through tap positions.

2) Tap Changer
Two common types:
On-Load Tap Changer (OLTC)
·Changes taps while energized.
·Used for continuous voltage correction.
De-energized Tap Changer
·Requires shutdown before adjustment.
·Used for fixed seasonal settings.

3) Control Unit
Monitors:
·Line voltage
·Load current
·Power factor
·Time delay settings
Controls:
·Tap position
·Voltage correction
·Remote communication

4) Bypass and Protection Components
Includes:
·Surge arresters
·Circuit breakers
·Disconnect switches
·Current transformers (CTs)
·Control relays

3. Typical Ratings
·Voltage Class: 2.4 kV, 4.16 kV, 7.2 kV, 12.47 kV, 13.8 kV, 24.9 kV, 34.5 kV
·Phase: Single-phase or three-phase
·Capacity: 1 MVA – 30+ MVA
·Regulation Range: ±5% to ±10%
·Frequency: 50 Hz / 60 Hz
·Cooling: Oil immersed (most common)

4. Types of MV Regulators

A.) Pole-Mounted Voltage Regulator
Used in:
·Utility overhead distribution
·Rural feeders
·Long MV lines
Features:
·Compact
·Outdoor installation
·Usually single-phase units in banks of three

B.) Substation Voltage Regulator
Installed at:
·Distribution substations
·Industrial substations
Features:
·Higher capacity
·Three-phase operation
·Advanced control systems

C.) Step Voltage Regulator (SVR)
A common MV regulator design:
·Uses autotransformer technology.
·Provides automatic feeder voltage correction.

D.) Solid-State MV Regulator
Uses power electronics:
·Faster response
·No mechanical tap changer
·Lower maintenance
Applications:
·Smart grids
·Renewable energy networks

5. Applications
·Utility Distribution: Feeder voltage control
·Renewable Energy: Solar/wind voltage management
·Mining: Long MV feeders
·Oil & Gas: Motor voltage stabilization
·Manufacturing Plants: Sensitive equipment protection
·Data Centers: Power quality improvement
·Rail Systems: Traction power regulation

6. Benefits
Improved Power Quality
·Reduces voltage fluctuations.
·Prevents undervoltage trips.
·Increased Equipment Life
Protects:
·Motors
·Transformers
·Drives
·Control systems
Better Energy Efficiency
·Stable voltage improves motor and equipment performance.
Grid Reliability
·Helps utilities maintain customer voltage requirements.

In a medium-voltage power network, an MV Regulator acts as an automatic voltage stabilizer, keeping feeder voltage within limits by continuously adjusting transformer taps to compensate for load changes and line voltage drops.
