Medium Voltage Cable (MV Cable)

A Medium Voltage Cable (MV Cable) is a power cable designed to transmit and distribute electrical energy at medium voltage levels, typically from 1 kV up to 35 kV (sometimes up to 69 kV depending on regional classification). MV cables are widely used in distribution networks, industrial facilities, renewable energy plants, substations, and utility power systems.

MV cables provide a reliable connection between:

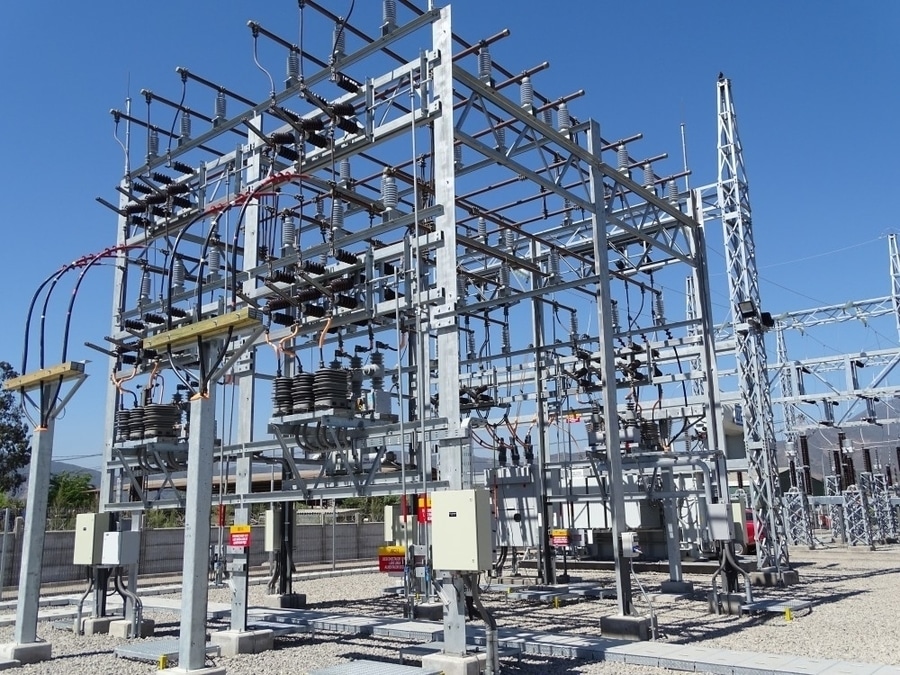

·Distribution substations
·Transformers
·Switchgear
·Industrial loads
·Renewable energy generators

1. MV Cable Construction
A typical MV cable consists of several layers:

A.) Conductor
Function:
·Carries electrical current
Materials:
·Copper (Cu)
·Aluminum (Al)
Types:
·Solid conductor
·Stranded conductor
·Compact stranded conductor

B.) Conductor Screen
Function:
·Provides a smooth electric field around the conductor
·Prevents partial discharge
Material:
·Semi-conductive polymer layer

C.) Insulation Layer
The main dielectric layer.
Common materials:
XLPE (Cross-Linked Polyethylene)
Most common MV insulation.
Advantages:
·High dielectric strength
·Low losses
·Excellent thermal performance
·Moisture resistance
EPR (Ethylene Propylene Rubber)
Advantages:
·Flexible
·Good heat resistance
·Suitable for harsh environments

D.) Insulation Screen
Function:
·Controls electric stress
·Provides uniform field distribution

E.) Metallic Screen / Shield
Function:
·Provides grounding path
·Reduces electromagnetic interference
·Contains electric field
Materials:
·Copper tape
·Copper wire screen
·Aluminum foil

F.) Armor (Optional)
Provides:
·Mechanical protection
·Rodent protection
·Impact resistance
Types:
·Steel wire armor (SWA)
·Aluminum wire armor (AWA)

G.) Outer Sheath
Protects against:
·Moisture
·Chemicals
·UV exposure
·Mechanical damage
Materials:
·PVC
·PE (Polyethylene)
·LSZH (Low Smoke Zero Halogen)

2. MV Cable Voltage Classes
·3.6/6 kV Medium voltage distribution
·6/10 kV Industrial networks
·8.7/15 kV Distribution systems
·12/20 kV Utility networks
·18/30 kV Higher MV systems
·20/35 kV 35 kV networks

3. Types of MV Cable

A.) Single-Core MV Cable
Features:
·One conductor per cable
·Used for high current applications
Applications:
·Substations
·Large industrial feeders
Advantages:
·Easier installation for large sizes
·Better ampacity

B.) Three-Core MV Cable
Features:
·Three phases in one cable
Applications:
·Underground distribution
·Industrial power systems
Advantages:
·Compact installation
·Easier cable routing

C.) Armored MV Cable
·Used where mechanical protection is required:
Applications:
·Underground systems
·Mining
·Industrial plants

D.) Unarmored MV Cable
Used for:
·Cable ducts
·Indoor installations
·Protected environments

E.) Fire-Resistant MV Cable
·Designed to maintain circuit integrity during fire.
Applications:
·Critical infrastructure
·Power plants
·Transportation facilities

4. MV Cable Installation Methods

Underground Direct Burial
Advantages:
·High reliability
·Good environmental protection
Requires:
·Cable trench
·Warning tape
·Thermal considerations

Cable Duct Installation
Advantages:
·Easier replacement
·Better protection
Applications:
·Cities
·Industrial parks

Cable Tray Installation
Applications:
·Factories
·Power plants

Submarine MV Cable
Applications:
·Offshore wind farms
·Island power connections

5. MV Cable Accessories

Cable Termination
Connects MV cable to:
·Switchgear
·Transformers
·Motors
Types:
·Heat shrink termination
·Cold shrink termination
·Slip-on termination

Cable Joint
Used for:
·Cable extension
·Repair
·Route changes
Types:
·Straight joint
·Branch joint

Cable Sealing End
Used for:
·Outdoor connections
·Overhead line transition

6. Common MV Cable Standards
·IEC 60502-4 Cable accessories
·IEC 60502-2 Power cables with extruded insulation
·IEC 60840 High voltage cables
·IEEE 48 Cable terminations
·ICEA standards North American cable specifications

7. Typical MV Cable Specifications
·Voltage: 3 kV – 35 kV
·Conductor: Copper / Aluminum
·Insulation: XLPE / EPR
·Frequency: 50/60 Hz
·Installation: Indoor/outdoor/underground
·Temperature rating: 90°C continuous (XLPE typical)
·Short circuit rating: Up to several seconds withstand

8. Advantages of MV Cable
·High reliability: Stable power transmission
·Low maintenance: No exposed conductors
·Safe operation: Insulated and shielded
·Suitable for underground systems: Reduced visual impact
·Long service life: Typically 30–40 years with proper installation

9. Applications
Utility Distribution
·10 kV networks
·20 kV networks
·35 kV feeders
Industrial Facilities
·Motors
·Transformers
·Production equipment
Renewable Energy
·Solar PV collector systems
·Wind turbine collection networks
·Battery storage systems
Infrastructure
·Airports
·Railways
·Data centers
·Commercial complexes

MV Cable summary:
A Medium Voltage Cable is an insulated power transmission cable designed for 1–35 kV distribution systems. Modern MV cables typically use XLPE insulation with copper/aluminum conductors and metallic shielding, providing reliable, safe, and efficient power delivery for utilities, industries, substations, and renewable energy projects.
