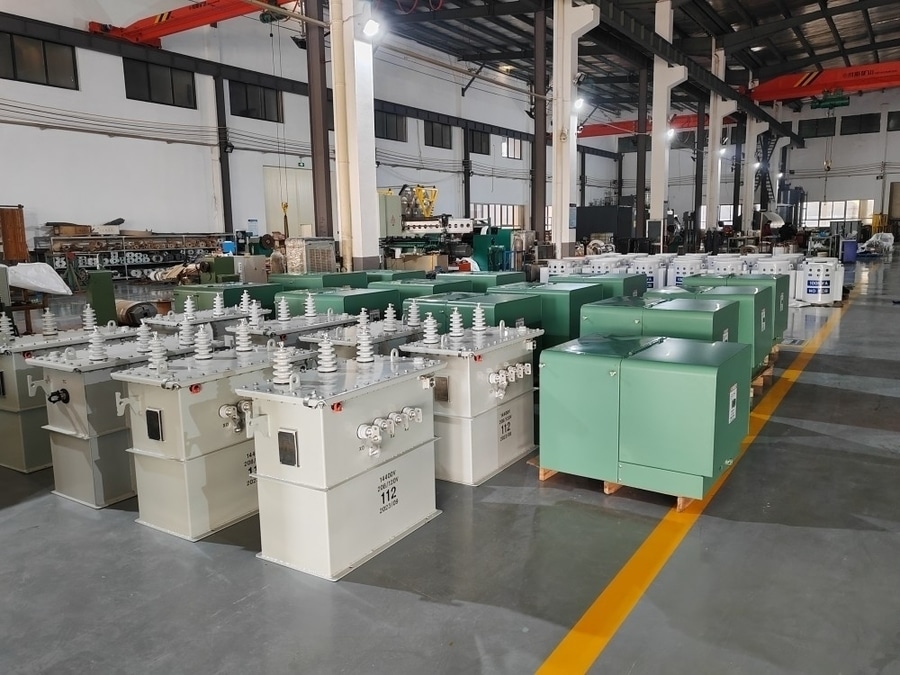

12kV Distribution Transformer, one of the most widely used transformer classes in medium-voltage distribution systems

12kV Distribution Transformer

12 kV distribution transformer is a medium-voltage transformer used to step down power from a 12 kV distribution network to low-voltage levels suitable for residential, commercial, and industrial consumers. It is typically installed on utility poles, ground-mounted pads, or in substations.

Typical Specifications
·Highest System Voltage: 12 kV (or 12.47 kV in some systems)
·Primary Voltage: 12 kV, 11 kV, or 12.47 kV
·Secondary Voltage: 400/230 V, 415/240 V, 480/277 V, or 240/120 V
·Rated Power: 25–2500 kVA
·Frequency: 50 Hz or 60 Hz
·Number of Phases: Single-phase or Three-phase
·Cooling Method: ONAN (Oil Natural Air Natural)
·Insulation: Mineral oil or natural ester oil
·Vector Group: Dyn11, Dyn5, Yyn0, etc.
·Tap Changer: Off-circuit tap changer (typically ±2 × 2.5% or ±5%)

Common Ratings
Typical standard capacities include:
·25 kVA
·50 kVA
·75 kVA
·100 kVA
·160 kVA
·200 kVA
·250 kVA
·315 kVA
·400 kVA
·500 kVA
·630 kVA
·800 kVA
·1000 kVA
·1250 kVA
·1600 kVA
·2000 kVA
·2500 kVA

Main Components
·Magnetic core
·High-voltage winding (12 kV)
·Low-voltage winding
·Transformer tank
·Insulating oil
·Radiators or cooling fins
·High-voltage bushings
·Low-voltage bushings
·Conservator (on larger units)
·Pressure relief device
·Oil level indicator
·Thermometer pocket
·Earthing terminals
·Off-circuit tap changer

Common Voltage Ratios
·12 kV / 400 V
·12 kV / 415 V
·12 kV / 480 V
·12 kV / 240 V
·12.47 kV / 480Y/277 V
·12.47 kV / 208Y/120 V

Applications
·Residential neighborhoods
·Commercial buildings
·Industrial facilities
·Renewable energy plants
·Rural electrification
·Utility distribution networks

Performance
·Typical efficiency: 98.5–99.5%
·Insulation class: A, F, or H (depending on design)
·Expected service life: 25–40 years with proper maintenance

Protection Features
·High-voltage expulsion or current-limiting fuses
·Lightning/surge arresters
·Pressure relief device
·Temperature monitoring
·Overcurrent protection
·Ground fault protection
·Buchholz relay (typically on larger conservator-type units)

Routine Factory Tests
Typical tests performed according to international standards include:
·Winding resistance
·Voltage ratio and vector group verification
·Insulation resistance
·No-load loss and current
·Load loss and impedance voltage
·Applied voltage withstand test
·Induced voltage withstand test
·Leakage test
·Oil dielectric strength test (oil-filled units)

Applicable Standards
·IEC 60076 – Power Transformers
·IEC 60076-11 – Dry-type Power Transformers
·IEEE C57.12 series – Distribution Transformer Standards
·IEC 60296 – Mineral insulating oils

A 12 kV distribution transformer is one of the most widely used transformer classes in medium-voltage distribution systems, providing safe and efficient conversion of 12 kV supply voltage to the low-voltage levels required by end users. It is available in both oil-immersed and dry-type designs, with ratings ranging from 25 kVA to 2500 kVA depending on the application.
