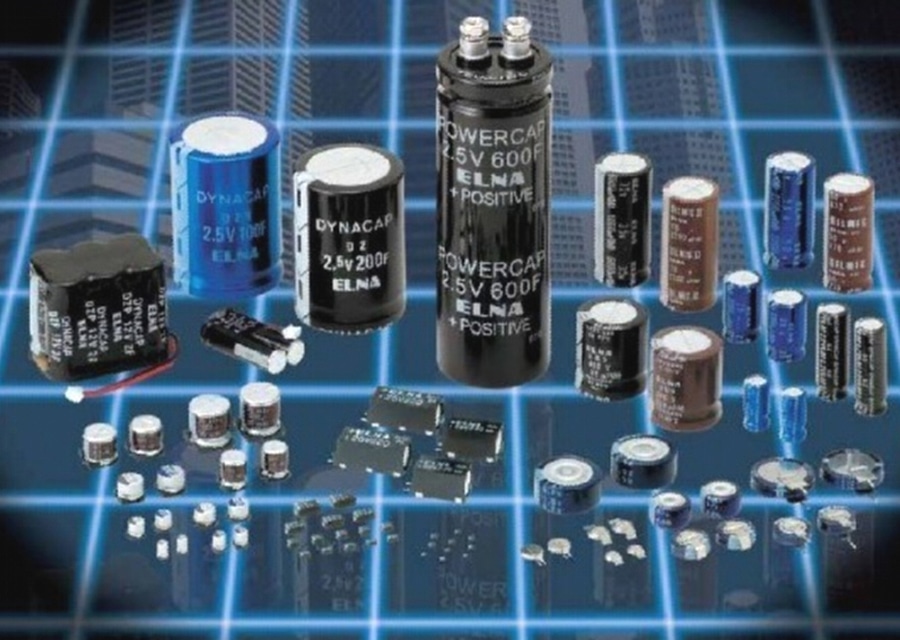

Super Capacitor (Ultracapacitor) that stores electrical energy through electrostatic charge separation

Super Capacitor

A Super Capacitor (also called an Ultracapacitor or Electric Double-Layer Capacitor, EDLC) is an advanced energy storage device that stores electrical energy through electrostatic charge separation rather than chemical reactions used in conventional batteries.

Super capacitors provide very high power density, extremely fast charging/discharging capability, and very long cycle life, making them suitable for applications requiring rapid energy exchange, short-duration backup power, and peak power support.

Main Functions
Super capacitors are used for:
·Short-term energy storage
·Power quality improvement
·Voltage stabilization
·Peak power shaving
·Ride-through power support
·Regenerative energy recovery
·Battery life extension
·Backup power for critical systems

Working Principle
Unlike batteries, which store energy through chemical reactions, super capacitors store energy in an electric field between electrodes.
When charged:
·Ions accumulate on electrode surfaces.
·An electric double layer is formed.
·Energy is stored electrostatically.
When discharged:
·Stored ions move back through the electrolyte.
·Electrical energy is released immediately.

Main Components
1.) Electrodes
Materials:
·Activated carbon
·Carbon nanotubes
·Graphene-based materials
·Carbon composites
Function:
·Provide large surface area for charge storage
2.) Electrolyte
Types:
·Organic electrolyte
·Aqueous electrolyte
·Ionic liquid electrolyte
Function:
·Enables ion movement between electrodes
3.) Separator
Function:
·Prevents electrical short circuits
·Allows ion movement
4.) Current Collectors
Materials:
·Aluminum
·Copper
Function:
·Transfers electrical current from electrodes
5.) Module Housing
Provides:
·Mechanical protection
·Thermal management
·Safety insulation

Typical Technical Specifications
·Cell Voltage: 2.7–3.0 V
·Module Voltage: 12V–1000V+
·Energy Density: 5–20 Wh/kg
·Power Density: 1–10 kW/kg
·Efficiency: 95–99%
·Cycle Life: 100,000–1,000,000 cycles
·Charging Time: Seconds to minutes
·Operating Temperature: -40°C to +65°C
·Maintenance: Very low

Advantages
·Extremely Fast Charging
·Can charge in seconds
·Handles high charging currents
Very Long Life
·Millions of charge/discharge cycles possible
·Minimal degradation
High Power Output
·Provides rapid bursts of energy
·Suitable for peak demand support
High Efficiency
·Very low energy loss
·Round-trip efficiency up to 95–99%
Wide Temperature Operation
·Performs well in harsh environments

Typical Applications
Power Systems
·Substation DC backup support
·UPS ride-through systems
·Grid stabilization
·Voltage sag compensation
Renewable Energy
·Solar power smoothing
·Wind power fluctuation control
·Hybrid energy storage systems
Transportation
·Electric buses
·Rail regenerative braking
·Hybrid vehicles
·Metro systems
Industrial Applications
·Cranes
·Elevators
·Welding equipment
·Heavy machinery
·Factory automation systems
Data Centers
·UPS bridging power
·Short-duration backup
·Battery replacement support

Applicable Standards
·IEC 62391 – Fixed electric double-layer capacitors
·IEC 62576 – Electric double-layer capacitors for hybrid electric vehicles
·IEC 61881 – Railway electronic equipment
·UL 810A – Electrochemical capacitor safety
·IEEE standards for energy storage and power systems (application dependent)

Typical Ratings Summary
·Technology: EDLC / Hybrid Super Capacitor
·Cell Voltage: 2.7–3.0 V
·Module Voltage: 12V–1000V+
·Power Density: High
·Energy Density: 5–20 Wh/kg
·Efficiency: 95–99%
·Cycle Life: 100,000–1,000,000 cycles
·Charging Time: Seconds to minutes
·Application: Power support, backup, regeneration

A Super Capacitor is a high-performance energy storage technology that bridges the gap between traditional capacitors and batteries. Its exceptional power density, fast response, and extremely long cycle life make it ideal for applications requiring rapid energy delivery, power stabilization, and frequent charge-discharge operation.
