Capacitor Banks

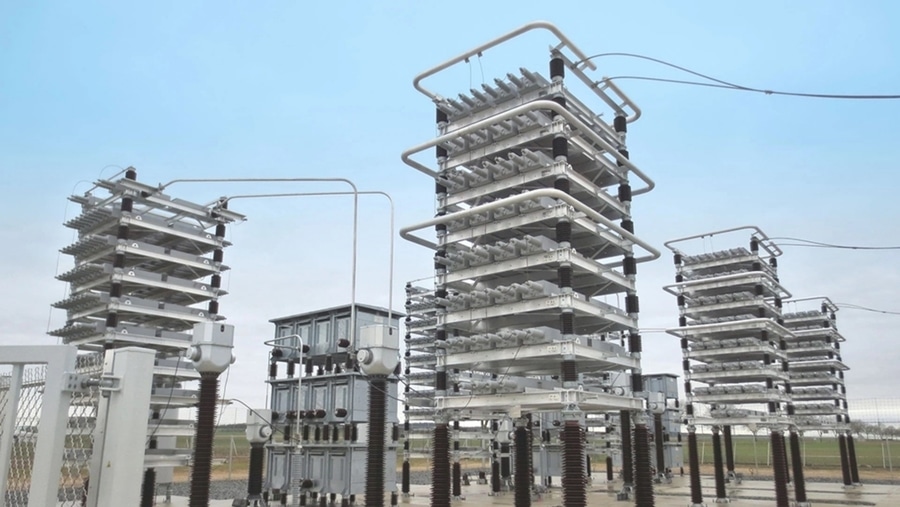

A Capacitor Bank is an assembly of multiple capacitor units connected together to provide reactive power compensation (kvar/Mvar) in electrical power systems. Capacitor banks are used to improve power factor, voltage stability, system efficiency, and power transmission capacity by supplying leading reactive power to offset inductive loads.

They are widely installed in utility substations, industrial facilities, renewable energy plants, and distribution networks.

Main Functions
Capacitor banks are designed to:
·Improve power factor
·Reduce reactive power demand
·Reduce transmission and distribution losses
·Improve voltage regulation
·Increase system capacity
·Reduce transformer and cable loading
·Improve overall power quality
·Support grid stability

Working Principle
Most electrical loads such as motors, transformers, and induction equipment consume lagging reactive power.
A capacitor bank supplies leading reactive power to compensate for this demand.
By reducing reactive current flow, the system operates more efficiently.

Main Components of a Capacitor Bank
1.) Capacitor Units
The basic building blocks of the bank.
Components:
·Capacitor elements
·Polypropylene film dielectric
·Aluminum foil electrodes
·Insulating medium
·Discharge resistors
2.) Switching Equipment
Controls capacitor connection and disconnection.
Typical devices:
·Vacuum contactor
·Circuit breaker
·Load break switch
·Thyristor switch
3.) Protection Equipment
Includes:
·Fuse protection
··Overcurrent relay
·Unbalance protection relay
·Overvoltage protection
·Surge arrester
4.) Discharge Circuit
Purpose:
·Removes stored electrical energy after switching off
·Ensures safe maintenance
Components:
·Discharge resistors
·Voltage transformers (optional)
5.) Control System
Automatic capacitor banks include:
·Power factor controller
·PLC controller
·Measurement CT
·Switching logic
·Communication interface

Types of Capacitor Banks
1.) Shunt Capacitor Bank
The most common type.
Connection:
·Connected in parallel with the power system
Purpose:
·Supplies reactive power locally
·Improves power factor
Applications:
·Distribution substations
·Industrial plants
·Commercial facilities
2.) Series Capacitor Bank
Connection:
·Installed in series with transmission lines
Purpose:
·Reduces line impedance
·Improves power transfer capability
·Reduces voltage drop
Applications:
·Long-distance transmission systems
·Extra-high voltage grids
3.) Fixed Capacitor Bank
Features:
·Permanently connected
·Simple structure
·Low cost
Applications:
·Constant loads
·Industrial motors
4.) Automatic Switched Capacitor Bank
Features:
·Automatically adjusts kvar output
·Maintains target power factor
Components:
·Controller
·Switching modules
·Multiple capacitor steps
Applications:
·Variable industrial loads
5.) Detuned Capacitor Bank
Features:
·Includes reactors
·Prevents harmonic resonance
Applications:
Systems with:
·Variable frequency drives
·Power electronics
·Harmonic distortion

Typical Technical Specifications
·Voltage Range: 400V–500kV
·Frequency: 50/60 Hz
·Capacity: 50 kvar–1000 Mvar+
·Type: Shunt / Series
·Switching Method: Fixed / Automatic
·Capacitor Dielectric: Metallized polypropylene film
·Protection: Fuse + relay protection
·Cooling: Natural air cooling
·Installation: Indoor / Outdoor
·Standards: IEC 60871, IEEE 18

Typical Voltage Applications
·400V–690V Industrial power factor correction
·3.3kV–12kV Medium-voltage industrial compensation
·24kV–35kV Distribution substations
·66kV–220kV Grid voltage support
·330kV–500kV Transmission compensation

Protection Functions
Overcurrent Protection
Protects against:
·Short circuits
·Internal capacitor faults
·Capacitor Unbalance Protection
Detects:
·Individual capacitor element failures
·Unequal voltage distribution
·Overvoltage Protection
Protects against:
·Switching surges
·Abnormal system voltage
·Harmonic Protection
Used in systems with:
·Inverters
·VFDs
·Arc furnaces

Advantages
Energy Efficiency
·Reduces reactive power flow
·Improves electrical efficiency
Voltage Support
·Maintains stable voltage levels
·Improves network performance
Cost Reduction
·Reduces demand charges
·Reduces electrical losses
Increased Capacity
·Frees transformer and feeder capacity
·Allows additional loads
Improved Power Quality
·Reduces voltage fluctuation
·Supports stable operation

Typical Applications
Utility Substations
·Transmission voltage support
·Distribution voltage regulation
·Grid stability improvement
Industrial Plants
·Steel mills
·Cement plants
·Mining facilities
·Chemical plants
·Manufacturing factories
Renewable Energy Systems
·Solar PV plants
·Wind farms
·Battery energy storage systems
Commercial Facilities
·Data centers
·Shopping centers
·Large office buildings

Applicable Standards
·IEC 60871 – Shunt capacitors for AC power systems above 1kV
·IEC 60143 – Series capacitors for power systems
·IEEE Std 18 – Shunt power capacitors
·IEC 60099 – Surge arresters
·IEC 62271 – High-voltage switchgear and controlgear

Typical Ratings Summary
·System Voltage: 400V–500kV
·Capacity: kvar to Mvar range
·Configuration: Fixed / Switched
·Compensation Type: Reactive power compensation
·Switching: Contactor / Breaker / Thyristor
·Protection: Fuse, relay, surge arrester
·Installation: Indoor / Outdoor
·Service Life: 15–30 years

A Capacitor Bank is a key component in modern electrical networks, providing reactive power compensation, improved voltage stability, reduced losses, and enhanced system capacity. It is an economical and reliable solution for improving the performance of industrial power systems, distribution networks, and transmission grids.
