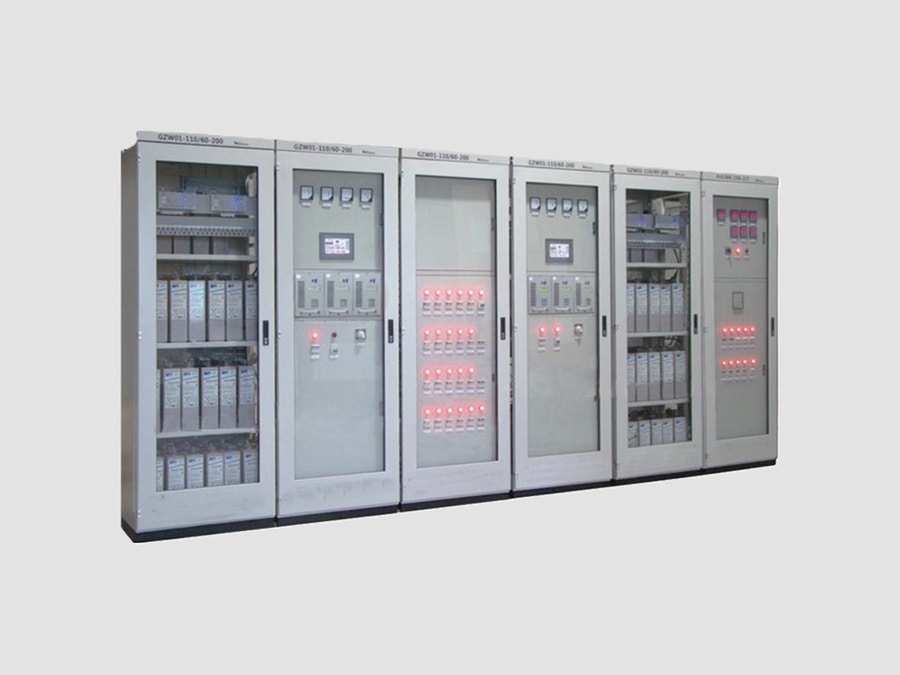

DC Power Supply System (110/220V)

A 110/220V DC Power Supply System is an auxiliary power system used in power substations, industrial plants, power stations, and critical electrical facilities to provide reliable direct current (DC) power for protection, control, automation, communication, and emergency operations.

The system converts AC auxiliary power into stable DC power through battery chargers and maintains a battery bank that can continue supplying power during AC supply interruptions.

Main Functions
The DC power supply system provides continuous DC power for:
·Protection relays
·Circuit breaker trip and closing circuits
·Substation automation systems
·SCADA and RTU equipment
·Communication equipment
·Emergency lighting
·Control panels
·Switchgear operating mechanisms
·Monitoring and alarm systems

Typical Voltage Levels
110V DC System
Commonly used for:
·Medium and high-voltage substations
·Industrial control systems
·Protection and automation circuits

Typical applications:
·35kV–220kV substations
·Distribution automation systems
·Industrial plants
·220V DC System

Commonly used for:
·Large power plants
·Extra-high voltage substations
·High-power switchgear systems

Typical applications:
·220kV–765kV substations
·Power generation stations
·Transmission networks

Main Components
1.) AC Input Distribution Unit
Function:
·Receives AC auxiliary power
·Provides isolation and protection
Components:
·MCCB/MCB
·Surge protection device (SPD)
·AC monitoring meter
·Transfer switch (optional)
2.) Battery Charger / Rectifier
Function:
·Converts AC power to DC power
·Maintains battery charge
·Supplies DC loads
Features:
·High-frequency switching technology
·Automatic voltage regulation
·Current limiting
·Temperature compensation
·Parallel operation capability
3.) Battery Bank
Provides:
·Backup energy storage
·Emergency DC supply during AC failure
·Common battery types:
·Valve Regulated Lead Acid (VRLA)
·Flooded lead-acid battery
·Nickel-Cadmium (Ni-Cd)
·Lithium battery systems (modern applications)
4.) DC Distribution Panel
Functions:
·Distributes DC power to loads
·Provides feeder protection
·Enables maintenance isolation
Components:
·DC breakers
·Fuse units
·Distribution busbars
·Insulation monitoring device
5.) DC Monitoring System
Monitors:
·DC voltage
·Charging current
·Battery condition
·Insulation resistance
·Alarm status
·Battery temperature

Typical Technical Specifications
·Rated DC Voltage: 110V DC / 220V DC
·Input Voltage: 380V AC or 220V AC
·Frequency: 50/60 Hz
·DC Voltage Regulation: ±1%
·Ripple Voltage: ≤1%
·Charger Capacity: 10–200 A (typical)
·Battery Capacity: 50–2000 Ah
·Insulation Monitoring: Included
·Protection Degree: IP30–IP55
·Backup Time: 1–10 hours (application dependent)
·Design Life: 15–25 years
·Applicable Standards: IEC 60896, IEC 62477, IEC 61204

Working Principle
AC auxiliary power enters the DC system.
·The rectifier converts AC power into controlled DC voltage.
·The charger supplies DC loads and maintains battery charging.
·The battery remains in standby condition.
During AC failure:
·The battery automatically supplies DC power.
·Protection and control equipment continue operating.
·Circuit breakers can still trip or close safely.

Battery Operating Modes
·Float Charging Mode
Normal operation:
·Charger supplies DC loads
·Battery remains fully charged
·Used for long-term standby operation

Boost Charging Mode
Used after:
·AC power restoration
·Battery discharge event
Purpose:
·Quickly restore battery capacity

Battery Discharge Mode
During:
·AC supply failure
·Charger fault
Battery supplies:
·Protection systems
·Control circuits
·Communication equipment

Advantages
High Reliability
·Continuous DC supply
·Independent backup power
·Essential for protection operation
Fast Response
·Instant transition during AC failure
·No mechanical switching delay
Safe Operation
·DC insulation monitoring
·Alarm indication
·Feeder protection
Low Maintenance
·Automatic charging control
·Battery condition monitoring
·Modular design

Typical Applications
·Power transmission substations
·Distribution substations
·Hydropower plants
·Thermal power plants
·Nuclear power facilities
·Renewable energy substations
·Railway substations
·Industrial electrical systems
·Data centers
·Oil & gas facilities

Applicable Standards
·IEC 60896 – Stationary lead-acid batteries
·IEC 62477 – Safety requirements for power electronic converter systems
·IEC 61204 – Low-voltage power supplies
·IEC 61427 – Batteries for renewable energy and utility applications
·IEC 60529 – Enclosure protection ratings

Typical Ratings Summary
·DC Voltage: 110V / 220V
·Charger Type: High-frequency switching rectifier
·Battery Type : VRLA / Lead-acid / Ni-Cd / Lithium
·Battery Capacity: 50–2000 Ah
·DC Bus: Single or dual bus
·Redundancy : N+1 charger configuration
·Monitoring: PLC / SCADA compatible
·Installation: Indoor electrical room
·Service Life: 15–25 years

A 110/220V DC Power Supply System is a critical auxiliary system for electrical substations and industrial facilities. It ensures that protection, control, and switching equipment remain operational even during complete AC power loss, making it an essential component for safe and reliable power system operation.
