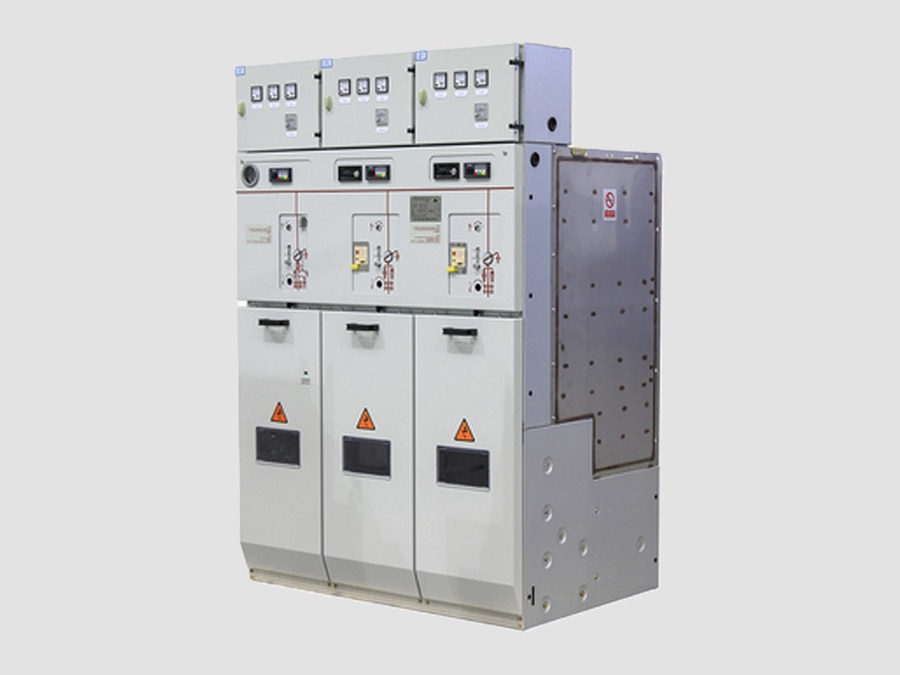

Gas Insulated Ring Main Unit (RMU) 12kV - a compact, factory-assembled medium-voltage switchgear

Ring Main Unit (RMU) 12kV

12kV Gas Insulated Ring Main Unit (RMU) is a compact, factory-assembled medium-voltage switchgear used in secondary power distribution networks. It is designed to provide switching, protection, isolation, and sectionalizing of 12kV distribution feeders while ensuring high reliability and minimal maintenance. All energized components are enclosed in a sealed gas-insulated tank, protecting them from dust, moisture, pollution, and harsh environmental conditions.

Main Features
·Rated voltage: 12 kV
·Rated frequency: 50/60 Hz
·Gas-insulated, sealed-for-life construction
·Compact footprint for indoor or outdoor installation
·High operational reliability
·Maintenance-free gas tank
·Modular and expandable configurations
·High personnel safety through internal arc-resistant design (optional)
·Suitable for remote monitoring and distribution automation (SCADA)

Typical Functional Modules
·Load Break Switch (LBS)
·Vacuum Circuit Breaker (VCB)
·Fuse Switch Combination
·Earthing Switch
·Busbar Module
·Metering Module
·Cable Connection Compartment

Typical configurations include:
·CCF – Two cable switches + one fused transformer feeder
·CCC – Three load break switches
·CCV – Two cable switches + one vacuum circuit breaker
·Expandable modular arrangements

Typical Technical Specifications
·Rated Voltage: 12 kV
·Highest System Voltage: 12/17.5 kV
·Rated Frequency: 50/60 Hz
·Rated Current: 630 A (up to 1250 A optional)
·Short-Time Withstand Current: 20–25 kA, 3 s
·Peak Withstand Current: 50–63 kA
·Breaking Capacity: 20–25 kA
·Lightning Impulse Withstand Voltage (BIL): 75 kV
·Power Frequency Withstand Voltage: 28 kV (1 min)
·Protection Degree: IP4X enclosure (IP67 gas tank typical)
·Mechanical Endurance: ≥2,000–10,000 operations
·Gas Leakage Rate: Typically <0.1–0.2% per year
·Applicable Standard: IEC 62271-200, IEC 62271-103

Construction
A typical 12kV gas-insulated RMU consists of:
·Stainless-steel sealed gas tank
·SF6 gas or alternative eco-insulating gas
·Three-position switch (ON–OFF–EARTH)
·Vacuum interrupter (for breaker modules)
·Busbars
·Cable termination compartment
·Low-voltage control compartment
·Mechanical and electrical interlocks
·Pressure relief device

Working Principle
·Incoming power enters through one cable feeder.
·The load break switch energizes the internal busbar.
·Power is distributed to outgoing feeders or transformers.
·During a fault, the fuse or vacuum circuit breaker isolates the faulty section.
·Healthy feeders remain energized, maintaining service continuity.

Advantages
·Very compact design
·Excellent insulation performance
·High reliability in polluted and humid environments
·Reduced maintenance requirements
·Improved operator safety
·High service continuity
·Suitable for smart grid automation
·Long service life (typically over 30 years)

Applications
·Urban distribution networks
·Commercial buildings
·Industrial plants
·Renewable energy facilities
·Wind farms
·Solar power plants
·Airports
·Hospitals
·Railways and metro systems
·Data centers
·Utility secondary substations

Common Standards
·IEC 62271-200 – AC metal-enclosed switchgear
·IEC 62271-103 – Switches for rated voltages above 1 kV
·IEC 62271-1 – Common specifications
·IEC 60044 / IEC 61869 – Instrument transformers (if installed)
·IEC 60529 – Degree of protection (IP)

Typical Ratings
·Voltage: 12 kV
·Current: 630 A
·Fault Current: 20–25 kA
·BIL : 75 kV
·Protection: IP67 (gas tank)
·Insulation Medium: SF6 or eco-gas
·Installation: Indoor / Outdoor
·Operating Mechanism: Manual or Motorized
·Automation: Optional SCADA/RTU integration

Modern 12kV gas-insulated RMUs are widely deployed in medium-voltage distribution systems because they combine a compact footprint, sealed construction, and high operational reliability while enabling fast fault isolation and uninterrupted power supply to unaffected sections of the network.
