Polymer Line Post Insulator enable High mechanical strength with low weight

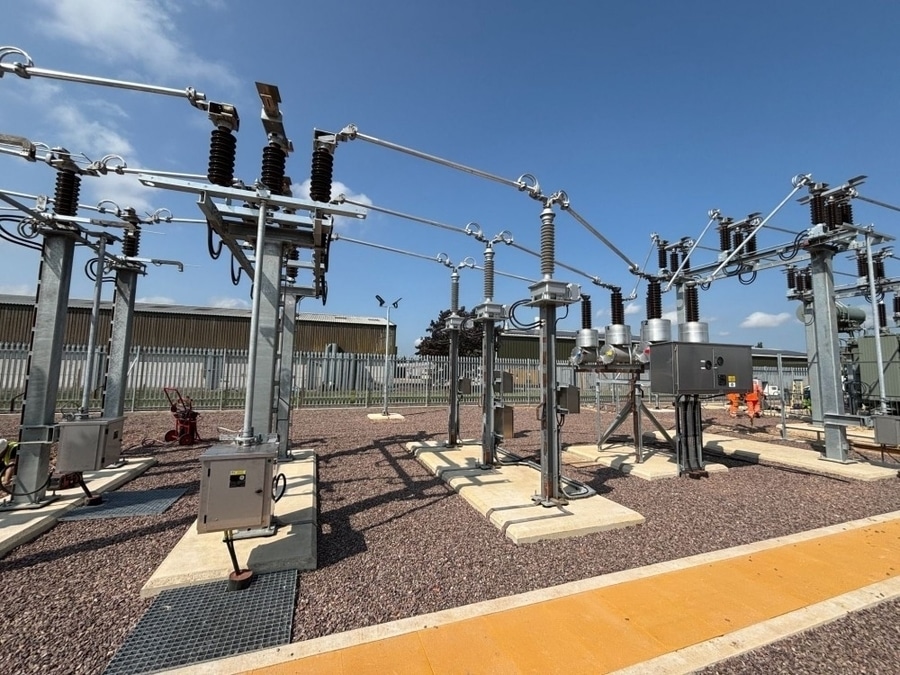

Polymer Line Post Insulator

Polymer Line Post Insulator is a composite electrical insulator designed to support and electrically isolate overhead conductors in medium- and high-voltage distribution and transmission systems. It uses a fiberglass-reinforced polymer core with a silicone rubber housing and is mounted directly on poles or crossarms to provide mechanical support and insulation.

Compared with traditional porcelain line post insulators, polymer types offer lighter weight, superior pollution performance, and improved resistance to mechanical impact.

Main Functions
·Electrical Insulation: Prevents current leakage from energized conductors to poles, towers, or grounded structures.
·Mechanical Support: Supports overhead conductors and withstands vertical, horizontal, and cantilever loads.
·Line Stability: Maintains conductor position and required electrical clearances.
·Environmental Protection: Provides reliable insulation under rain, pollution, UV exposure, and harsh outdoor conditions.

Typical Applications
·Medium-voltage distribution lines
·Overhead power networks
·Compact distribution systems
·Urban power distribution
·Industrial power networks
·Renewable energy collection systems
·Railway electrification networks
·Pole-mounted switchgear installations

Typical Technical Specifications
·Rated Voltage: 11 kV – 230 kV
·Application Voltage: Medium and high voltage systems
·Insulation Material: Silicone rubber composite polymer
·Core Material: Fiberglass reinforced epoxy rod
·Installation: Outdoor
·Mounting Type: Pole / Crossarm mounted
·Frequency: 50 Hz / 60 Hz
·Mechanical Strength: Cantilever load rated
·Pollution Performance: High

Construction
A typical polymer line post insulator consists of:
1. Fiberglass Reinforced Polymer (FRP) Core Rod
·Provides mechanical strength
·Supports conductor loads
·Resistant to bending and tensile stress
2. Silicone Rubber Housing
·Provides external insulation
·Excellent hydrophobic performance
·Resistant to UV radiation
·Maintains insulation performance in polluted environments
3. Silicone Rubber Sheds
·Increase creepage distance
·Improve pollution resistance
·Reduce leakage current
4. Metal End Fittings
·Galvanized steel or aluminum alloy
·Used for conductor and structure mounting
·Designed for mechanical loading

Operating Principle
During normal operation:
·The energized conductor is mounted on the top fitting.
·The polymer insulator provides insulation between the conductor and the supporting structure.
·Leakage current remains extremely low.

Under abnormal conditions:
·The insulator withstands temporary overvoltage.
·The FRP core provides mechanical stability during wind, ice, and conductor movement.
·The silicone rubber housing prevents flashover caused by contamination and moisture.

Advantages
·Lightweight compared with porcelain designs
·Excellent hydrophobic properties
·Superior pollution resistance
·High mechanical strength-to-weight ratio
·Better impact resistance
·Reduced transportation and installation costs
·Good seismic performance
·Low maintenance requirement
·Suitable for coastal and industrial environments

Common Types
1. Distribution Class Polymer Line Post Insulator
·Used in 11 kV–36 kV networks
·Pole-mounted distribution applications
2. Transmission Class Polymer Line Post Insulator
·Used in higher voltage overhead lines
·Provides conductor support and insulation
3. Horizontal Line Post Insulator
·Mounted horizontally on poles or structures
·Common in compact distribution systems
4. Vertical Line Post Insulator
·Mounted vertically
·Used for standard overhead conductor support

Applicable Standards
·IEC 61952 – Insulators for overhead lines – Composite line post insulators
·IEC 61109 – Composite insulators for AC overhead lines
·ANSI C29.17 – Composite Line Post Insulators
·IEC 60815 – Selection and dimensioning of high-voltage insulators for polluted conditions

Typical Voltage Applications
·11–36 kV Distribution poles and compact networks
·66–110 kV Sub-transmission lines
·132–230 kV High-voltage overhead line applications

Typical Applications by Industry
·Electric Utilities: Overhead distribution networks
·Renewable Energy: Wind and solar collection lines
·Industrial Plants: Private distribution systems
·Railways: Electrification support systems
·Mining: Outdoor power distribution
·Infrastructure: Urban and rural electrical networks

Key Features
·Silicone rubber composite construction
·High mechanical strength with low weight
·Excellent pollution and moisture resistance
·Long creepage distance design
·UV-resistant outdoor performance
·Low leakage current
·Easy installation and replacement
·Maintenance-free operation
·Suitable for modern overhead distribution systems
·Compliant with IEC 61952, IEC 61109, and ANSI C29.17 standards
