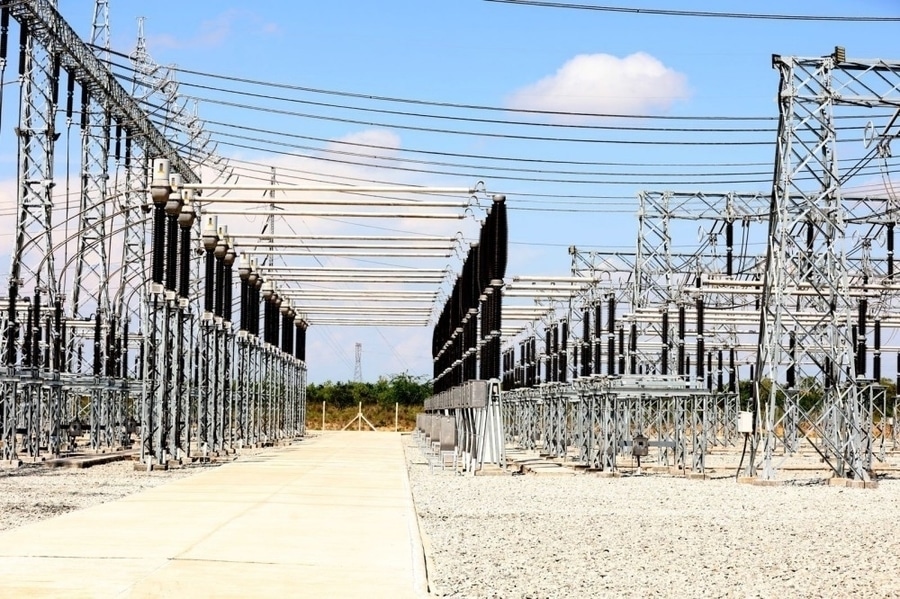

Porcelain Station Post Insulator (Pedestal Insulator) provides insulation between energized conductors and grounded supporting structures

Porcelain Station Post Insulator

Porcelain Station Post Insulator, also known as a Pedestal Insulator or Substation Post Insulator, is a high-voltage electrical insulation component used in outdoor substations and switchyards to support and electrically isolate busbars, disconnectors, circuit breakers, instrument transformers, and other high-voltage equipment from grounded structures.

It is manufactured from high-strength electrical porcelain and is designed to withstand both electrical stresses and mechanical loading in outdoor power system environments.

Main Functions
·Electrical Insulation: Provides insulation between energized conductors and grounded supporting structures.
·Mechanical Support: Supports busbars and high-voltage equipment under normal and short-circuit conditions.
·Voltage Isolation: Maintains required insulation distances in substations.
·Environmental Protection: Provides reliable operation under outdoor pollution, rain, ice, and temperature variations.

Typical Applications
·Outdoor substations
·High-voltage switchyards
·Busbar support systems
·Disconnect switch supports
·Circuit breaker supports
·Current transformer and voltage transformer supports
·Lightning arrester mounting structures
·Power transmission and distribution systems

Typical Technical Specifications
·Rated Voltage: 12 kV – 420 kV
·System Voltage Range: Medium to Extra High Voltage
·Insulation Material: Electrical porcelain
·Installation: Outdoor
·Mounting Type: Pedestal / flange mounted
·Frequency: 50 Hz / 60 Hz
·Insulator Type: Station post type
·Mechanical Strength: Cantilever load rated
·Environmental Class: Outdoor pollution-resistant

Construction
A typical porcelain station post insulator consists of:
1. Porcelain Insulating Body
·High dielectric strength
·Excellent mechanical strength
·Resistant to weather aging
·Provides insulation between live parts and earth
2. Metal End Fittings
·Galvanized steel or aluminum alloy fittings
·Used for mounting and equipment connection
·Designed to withstand mechanical loads
3. Cemented Joint Section
·Bonds porcelain sections and metal fittings
·Provides mechanical stability
4. Mounting Flange
·Allows installation on steel structures, equipment frames, or foundations

Operating Principle
During normal operation:
·The energized conductor or equipment is mounted on the top of the insulator.
·The porcelain body prevents current flow to the grounded structure.
·The insulator withstands continuous system voltage.

During abnormal conditions:
·It withstands temporary overvoltages.
·It supports mechanical forces caused by short-circuit currents, wind, and equipment operation.

Advantages
·High mechanical strength
·Excellent electrical insulation performance
·Long service life
·Good resistance to environmental aging
·Stable performance under temperature variations
·Suitable for high-voltage substations
·Low maintenance requirements
·Proven technology for decades of outdoor service

Common Types
1. Solid Core Station Post Insulator
·Single-piece porcelain body
·Used for medium-voltage and lower mechanical loads
2. Multi-Unit Station Post Insulator
·Multiple porcelain sections assembled together
·Used for higher voltage levels
3. Line Post / Station Post Combination
·Used where both conductor support and insulation are required
4. High Mechanical Strength Pedestal Insulator
·Designed for heavy busbars and switching equipment

Typical Voltage Applications
·12–36 kV Distribution substations and switchgear
·66–145 kV Outdoor switchyards and busbar supports
·220–245 kV Transmission substations
·362–420 kV Extra-high-voltage switchyards

Applicable Standards
·IEC 60168 – Tests on indoor and outdoor post insulators of ceramic material
·IEC 60273 – Characteristics of indoor and outdoor post insulators
·IEC 62231 – Composite station post insulators for substations
·ANSI C29.9 – Wet-Process Porcelain Insulators – Station Post Type

Typical Applications by Industry
·Electric Utilities: Substation busbar and equipment support
·Renewable Energy: Collector substations
·Industrial Plants: High-voltage switchyards
·Mining: Outdoor power substations
·Oil & Gas: Electrical distribution facilities
·Railways: Traction substations

Key Features
·High-strength porcelain construction
·Excellent insulation reliability
·High cantilever mechanical capability
·Outdoor weather-resistant design
·Suitable for busbar and switchgear support
·Long operational life
·Low maintenance requirement
·Designed for medium- and high-voltage substations
·Compliant with IEC 60168, IEC 60273, and ANSI C29.9 standards
