Outdoor Vacuum Circuit Breaker (Dog-house) for switching and protecting circuits operating

Dog-house Breaker

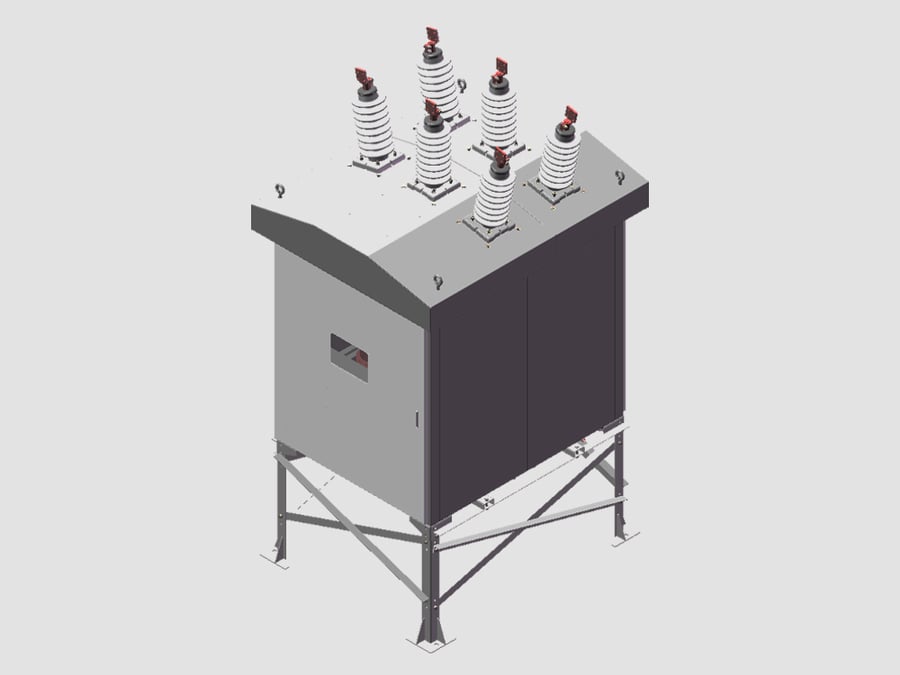

Outdoor Vacuum Circuit Breaker (Dog-house) is a medium-voltage outdoor circuit breaker in which one or more vacuum interrupters are enclosed within a weatherproof metal housing, commonly called a dog-house because of its distinctive roofed enclosure. The housing protects the interrupters, operating mechanism, and control equipment from rain, dust, sunlight, ice, and other environmental conditions.

These breakers are commonly used in distribution substations, industrial plants, renewable energy facilities, and utility distribution networks for switching and protecting circuits operating typically between 7.2 kV and 38 kV.

Construction
The main components include:
·Dog-house enclosure – A weatherproof metal cabinet that protects internal components.
·Vacuum interrupters – Sealed vacuum bottles that interrupt fault currents by extinguishing the arc in a vacuum.
·Operating mechanism – Usually a spring-operated mechanism driven by an electric motor for charging.
·Insulated bushings – Provide insulated connections between the external conductors and the interrupters.
·Control cabinet – Contains relays, trip and close coils, auxiliary contacts, and monitoring equipment.
·Support structure – Steel frame or pedestal for outdoor installation.
·Surge arresters (optional) – Protect equipment against lightning and switching surges.

Working Principle
1.Under normal operating conditions, the breaker contacts remain closed and carry load current.
2.When a fault is detected, a protection relay sends a trip signal.
3.The operating mechanism rapidly separates the contacts inside the vacuum interrupter.
4.A metal-vapor arc briefly forms between the contacts.
5.At the next AC current zero, the vacuum extinguishes the arc almost instantly because there is no gas to sustain ionization.
6.The dielectric strength inside the vacuum recovers very quickly, preventing restrike.
7.The faulty circuit is isolated safely.

Key Features
·Installation: Outdoor
·Voltage range: Typically 7.2–38 kV
·Interrupting medium: Vacuum
·Tank: Weatherproof metal "dog-house" enclosure
·Operating mechanism: Spring-operated, motor charged
·Mounting: Pad-mounted, pedestal-mounted, or substation frame
·Maintenance: Low due to sealed vacuum interrupters

Advantages
·Excellent arc-quenching performance.
·Long electrical and mechanical service life.
·Minimal maintenance because the vacuum interrupters are sealed.
·No handling of insulating gas such as SF6.
·Compact design with a protected operating mechanism.
·High reliability in harsh outdoor environments.
·Suitable for frequent switching operations.
·Environmentally friendly due to the absence of greenhouse insulating gases.

Disadvantages
·Generally limited to medium-voltage applications.
·Vacuum interrupters are not repairable and must be replaced if they reach end of life.
·Higher initial cost than some oil circuit breakers, though lower lifecycle costs.

Typical Applications
·Distribution substations
·Utility feeders
·Industrial power systems
·Mining operations
·Renewable energy plants (solar and wind)
·Manufacturing facilities
·Campus electrical distribution
·Water and wastewater treatment plants

Typical Ratings
·Rated voltage: 7.2–38 kV
·Rated frequency: 50/60 Hz
·Rated current: 630–4,000 A
·Short-circuit breaking current: 16–40 kA
·Mechanical endurance: 10,000–30,000 operations or more
·Interrupting medium: Vacuum

Common Voltage Classes
·7.2 kV
·12 kV
·15 kV
·17.5 kV
·24 kV
·27 kV
·36 kV
·38 kV

Relevant Standards
·IEC 62271-100 – Requirements for AC circuit breakers, including many outdoor vacuum breaker designs.
·IEC 62271-1 – General requirements for high-voltage switchgear and controlgear.
·IEEE C37.04 – Defines ratings for AC high-voltage circuit breakers.
·IEEE C37.09 – Covers testing procedures for performance verification.

Why is it called a "Dog-house" breaker?
The term "dog-house" is an industry nickname, not a formal standards designation. It refers to the breaker's roofed, weatherproof enclosure, which resembles a small doghouse. The enclosure protects the vacuum interrupters and operating mechanism from environmental exposure while allowing the breaker to operate reliably outdoors.

Summary
An Outdoor Vacuum Circuit Breaker (Dog-house) is a rugged, weatherproof medium-voltage switching device that uses vacuum interrupters to interrupt load and fault currents. Its compact design, long service life, low maintenance requirements, and environmentally friendly operation make it a preferred choice for outdoor distribution substations and industrial power systems.
