Electric Arc Furnace (EAF) Transformer supply the extremely high currents and variable voltages required by electric arc furnaces

Electric Arc Furnace (EAF)

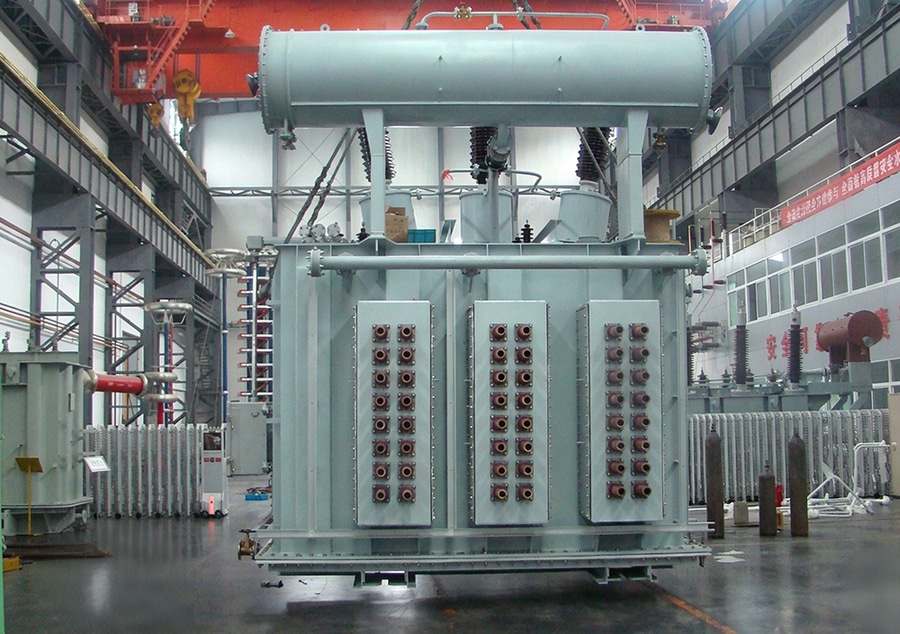

Electric Arc Furnace (EAF) Transformer is a specialized power transformer designed to supply the extremely high currents and variable voltages required by electric arc furnaces used in steelmaking and other metallurgical processes. Compared with conventional power transformers, EAF transformers are built to withstand frequent short circuits, severe electrical and mechanical stresses, harmonic distortion, and rapid load fluctuations.

Working Principle
An EAF transformer receives high-voltage power from the utility grid and steps it down to a relatively low voltage while delivering very high current to the furnace electrodes. During operation:
1.High-voltage AC power is supplied to the transformer.
2.The transformer reduces the voltage to the level required by the furnace.
3.Current flows through graphite electrodes.
4.An electric arc forms between the electrodes and the metal charge.
5.The arc generates temperatures exceeding 3,000°C, melting scrap steel or other metals.
6.The transformer's tap changer adjusts the output voltage throughout the melting process to optimize efficiency and arc stability.

Main Components
Magnetic Core
·High-grade CRGO silicon steel core
·Step-lap construction for lower losses and reduced noise
·Designed to withstand high electromagnetic forces

Windings
·Copper conductors (most common) or aluminum
·High mechanical strength to resist short-circuit forces
·Enhanced insulation for repeated electrical stress

Insulation System
·Oil-paper insulation
·High thermal class insulation materials
·Reinforced dielectric design for frequent voltage fluctuations

Cooling System
Typical cooling methods include:
·ONAN – Oil Natural Air Natural
·ONAF – Oil Natural Air Forced
·OFAF – Oil Forced Air Forced
·OFWF – Oil Forced Water Forced
Large EAF transformers commonly use OFAF or OFWF cooling to handle high thermal loads.

Tap Changer
·High-speed On-Load Tap Changer (OLTC)
·Numerous voltage steps (often 17–33 or more)
Enables continuous voltage regulation without interrupting furnace operation

Typical Technical Specifications
·Rated Power: 5 MVA – 300 MVA
·Primary Voltage: 33 kV – 220 kV
·Secondary Voltage: 100 V – 1,500 V
·Secondary Current: 10 kA – 200 kA+
·Frequency: 50 Hz / 60 Hz
·Cooling: ONAN, ONAF, OFAF, OFWF
·Insulation: Mineral oil or biodegradable insulating fluid
·Tap Changer: On-load tap changer (OLTC)
·Impedance: High, optimized for furnace operation

Key Features
·Extremely high current capability
·Wide output voltage adjustment range
·Excellent short-circuit strength
·High overload capacity
·Low impedance variation
·Designed for frequent switching operations
·Robust mechanical construction
·High thermal endurance
·Resistant to harmonic distortion and voltage fluctuations

Applications
·Steel production using electric arc furnaces
·Stainless steel manufacturing
·Alloy steel production
·Ferroalloy production
·Copper smelting
·Nickel smelting
·Foundries
·Metallurgical processing plants

Advantages
·Provides precise voltage control for different melting stages
·Supports efficient and stable arc formation
·High reliability under demanding operating conditions
·Long service life with proper maintenance
·Optimized for repetitive heavy-duty cycles
·Improves energy efficiency and productivity in steelmaking

Challenges
·Subjected to severe thermal and mechanical stress
·Experiences frequent overloads and short circuits
·Generates significant harmonics that may require filtering
·Requires advanced cooling and continuous condition monitoring
·Higher manufacturing and maintenance costs than standard power transformers

Applicable Standards
EAF transformers are typically designed and tested in accordance with:
·IEC 60076 – Power Transformers
·IEC 60214 – On-Load Tap Changers
·IEEE C57.16 – Requirements, Terminology, and Test Code for Dry-Type and Oil-Immersed Furnace Transformers
·IEEE C57.18.10 – Practices and Requirements for Furnace Transformers
Customer or steel plant specifications for heavy-duty operation

Typical Installation
An EAF transformer installation generally includes:
·High-voltage incoming switchgear
·Furnace transformer
·On-load tap changer (OLTC)
·Reactor (if required for current limitation)
·Water- or air-cooled busbars
·Secondary high-current connections
·Graphite electrodes
·Protection, monitoring, and control systems
·Oil cooling equipment and fire protection systems

Summary
An Electric Arc Furnace (EAF) Transformer is a heavy-duty, oil-immersed transformer engineered specifically for steel and metallurgical industries. Its ability to deliver very high currents at adjustable low voltages, while withstanding severe electrical, thermal, and mechanical stresses, makes it a critical component in modern electric arc furnace operations. Its specialized design ensures reliable performance, efficient melting, and long operational life in one of the most demanding industrial environments.
