Substation Transformer a key component of the electrical distribution system

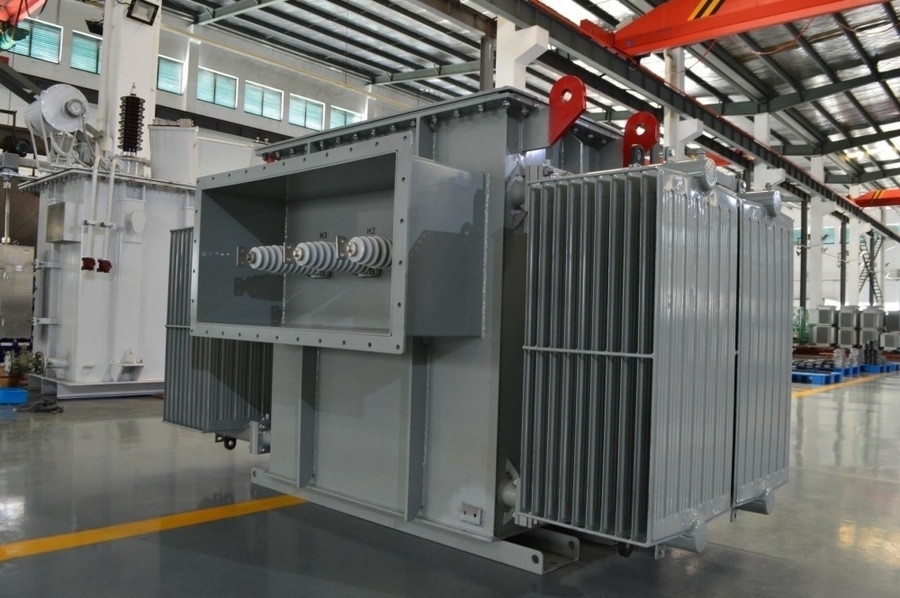

Substation Transformer

Substation Distribution Transformer is a transformer installed in a distribution substation to reduce medium- or high-voltage electricity to lower distribution voltages for delivery to residential, commercial, and industrial consumers. It serves as the interface between the transmission or sub-transmission network and the local distribution system.

Typical Specifications
·Primary Voltage: 33 kV, 66 kV, 110 kV, or 132 kV
·Secondary Voltage: 11 kV, 6.6 kV, 3.3 kV, or 400/230 V
·Highest System Voltage: Up to 145 kV (depending on design)
·Rated Power: 5–100 MVA
·Frequency: 50 Hz or 60 Hz
·Number of Phases: Three-phase
·Cooling Method: ONAN, ONAF
·Insulation: Mineral oil or natural/synthetic ester fluid
·Tap Changer: Off-circuit tap changer or On-Load Tap Changer (OLTC)
·Vector Group: Dyn11, YNd11, YNyn0+d11, or as specified

Common Voltage Ratios
Typical substation distribution transformer configurations include:
·132/33 kV
·110/33 kV
·66/11 kV
·33/11 kV
·33/6.6 kV
·11/0.4 kV (400/230 V)

Standard Power Ratings
Common ratings are:
·5 MVA
·10 MVA
·16 MVA
·20 MVA
·25 MVA
·31.5 MVA
·40 MVA
·50 MVA
·63 MVA
·80 MVA
·100 MVA

Main Components
·Laminated magnetic core
·High-voltage winding
·Low-voltage winding
·Main tank
·Transformer insulating oil
·Conservator tank
·Cooling radiators
·High- and low-voltage bushings
·On-load tap changer (for voltage regulation)
·Buchholz relay
·Pressure relief device
·Oil level indicator
·Temperature indicators
·Silica gel breather
·Marshalling kiosk and monitoring equipment

Applications
·Utility distribution substations
·Urban power distribution networks
·Industrial parks
·Commercial developments
·Renewable energy collection substations
·Airports, hospitals, and large infrastructure facilities

Cooling Methods
·ONAN Oil Natural Air Natural
·ONAF Oil Natural Air Forced

Larger units may also use OFAF (Oil Forced Air Forced) cooling where higher loading is required.

Protection Systems
·Differential protection (87T)
·Restricted earth fault (REF)
·Overcurrent protection (50/51)
·Earth fault protection (50N/51N)
·Buchholz relay
·Pressure relief device
·Oil and winding temperature protection
·Surge arresters
·Overexcitation protection (24)

Routine Factory Tests
Typical tests include:
·Winding resistance measurement
·Turns ratio and vector group verification
·Insulation resistance measurement
·No-load loss and excitation current
·Load loss and impedance voltage
·Applied AC withstand voltage test
·Induced overvoltage withstand test
·Lightning impulse test (as applicable)
·Oil dielectric strength test
·Leak test
·Functional testing of accessories

Monitoring Features
Modern substation distribution transformers may include:
·Online dissolved gas analysis (DGA)
·Top-oil and winding temperature monitoring
·Moisture-in-oil sensors
·Bushing condition monitoring
·Load monitoring
·Remote SCADA connectivity

Applicable Standards
·IEC 60076 – Power Transformers
·IEEE C57 series – Power Transformer Standards
·IEC 60137 – Insulated bushings
·IEC 60296 – Mineral insulating oils
·IEC 60599 – Dissolved Gas Analysis (DGA)

Advantages
·High efficiency, typically 99.2–99.8%
·Reliable voltage transformation for local distribution networks
·Supports voltage regulation with OLTC
·Long service life of 30–50 years with proper maintenance
·Designed for continuous outdoor operation
·Compatible with modern monitoring and automation systems

A substation distribution transformer is a key component of the electrical distribution system, reducing voltages from transmission or sub-transmission levels (such as 132 kV, 66 kV, or 33 kV) to distribution levels (such as 11 kV or 400/230 V). With ratings generally ranging from 5 MVA to 100 MVA, these transformers ensure reliable and efficient delivery of electricity to downstream distribution feeders and end users.
