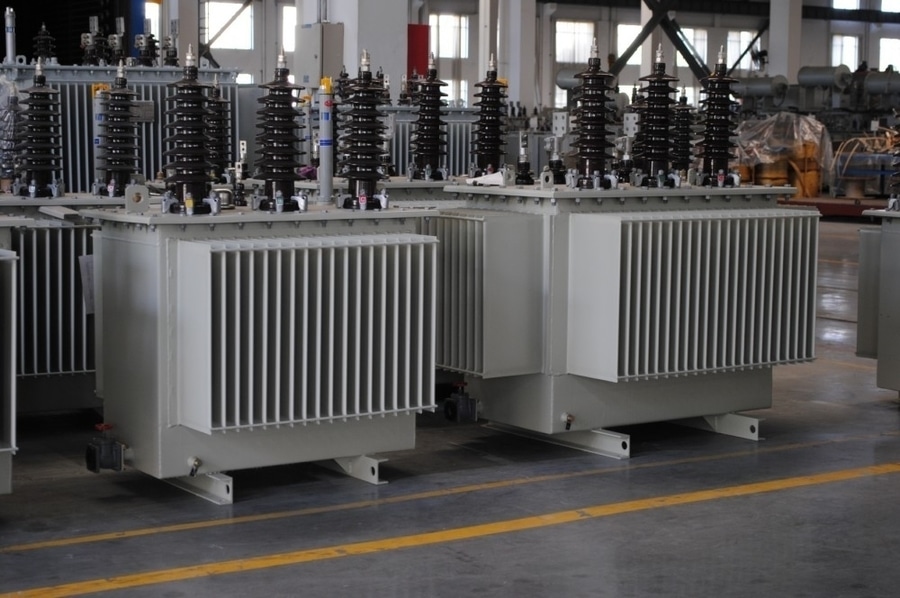

23kV Distribution Transformer

23 kV distribution transformer is a medium-voltage transformer designed to step down power from a 23 kV (or 22.9 kV/24.9 kV) distribution feeder to low-voltage levels for residential, commercial, and industrial customers. It is widely used by electric utilities in North America, Asia, and other regions with 23 kV-class distribution systems.

Typical Specifications
·Highest System Voltage: 24 kV (24.94 kV insulation class)
·Primary Voltage: 23 kV, 22.9 kV, or 24.9 kV
·Secondary Voltage: 400/230 V, 415/240 V, 480Y/277 V, 208Y/120 V, 240/120 V
·Rated Power: 25–3000 kVA
·Frequency: 50 Hz or 60 Hz
·Number of Phases: Single-phase or Three-phase
·Cooling Method: ONAN (Oil Natural Air Natural)
·Insulation: Mineral oil or natural/synthetic ester fluid
·Vector Group: Dyn11, Dyn5, Yyn0, or as specified
·Tap Changer: Off-circuit tap changer (typically ±2 × 2.5% or ±5%)

Common Ratings
Standard capacities include:
·25 kVA
·50 kVA
·75 kVA
·100 kVA
·167 kVA
·250 kVA
·315 kVA
·500 kVA
·750 kVA
·1000 kVA
·1500 kVA
·2000 kVA
·2500 kVA
·3000 kVA

Main Components
·Laminated magnetic core
·High-voltage winding (23 kV class)
·Low-voltage winding
·Steel transformer tank
·Insulating oil or ester fluid
·Cooling fins or radiators
·High-voltage bushings
·Low-voltage bushings
·Off-circuit tap changer
·Pressure relief device
·Oil level indicator (where applicable)
·Earthing terminals
·Lifting lugs and base channels

Common Voltage Ratios
·23 kV / 400 V
·23 kV / 415 V
·23 kV / 480Y/277 V
·23 kV / 208Y/120 V
·22.9 kV / 380Y/220 V
·24.9 kV / 480Y/277 V

Applications
·Urban and rural distribution networks
·Residential developments
·Commercial buildings
·Industrial facilities
·Data centers
·Renewable energy projects
·Utility distribution substations

Performance
·Typical efficiency: 98.8–99.6%
·Cooling class: ONAN (standard), with forced cooling available for larger units
·Expected service life: 25–40 years with proper operation and maintenance

Protection Features
·High-voltage fuses
·Surge arresters
·Pressure relief device
·Temperature monitoring
·Overcurrent and ground fault protection
·Buchholz relay (typically for larger conservator-type transformers)

Routine Factory Tests
Typical tests include:
·Winding resistance measurement
·Voltage ratio and vector group verification
·Insulation resistance
·No-load loss and excitation current
·Load loss and impedance voltage
·Applied AC withstand test
·Induced voltage withstand test
·Leakage test
·Oil dielectric strength test (oil-filled units)

Applicable Standards
·IEC 60076 – Power Transformers
·IEC 60076-11 – Dry-type Power Transformers
·IEEE C57.12 series – Distribution Transformers
·IEC 60296 – Mineral insulating oils

A 23 kV distribution transformer is a reliable medium-voltage transformer used to convert 23 kV-class distribution voltages to utilization voltages for customers. Available in pole-mounted, pad-mounted, oil-immersed, and dry-type configurations, these transformers typically range from 25 kVA to 3000 kVA, providing high efficiency and dependable service across a wide variety of distribution applications.
