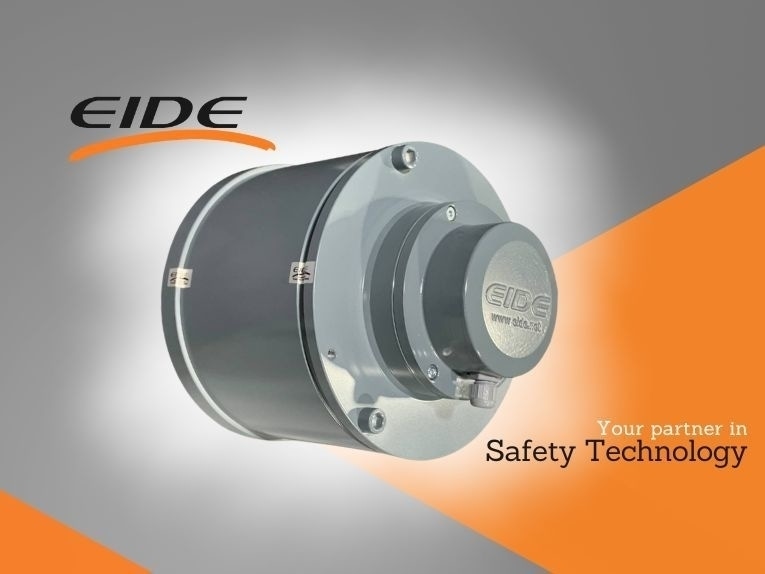

FPC-6000 – Safety Brake

100% automatic and mechanical activation

The EIDE FPC-6000 safety brake provides 100% automatic and mechanical activation, ensuring maximum protection in lifting and transportation applications. With a maximum torque of 7000 Nm and an adjustable regulation speed between 150 and 400 rpm, it is a reliable and certified solution that complies with the strictest European safety standards.

Technical Data
- Maximum torque: 7000 Nm
- Regulation speed: from 150 rpm to 400 rpm
- Standards compliance: EN-12158, EN-12159, EN-1495, EN-81, Lift Directive 2014/33/EU
- Activation: Fully automatic and mechanical, no external power required
- Microswitch integrated: Indicates whether the brake has been activated

Application Use-Cases
- Lifting platforms: Certified safety for working at height.
- Elevators and hoists: Provides additional protection in case of transmission failure.
- Construction and maintenance equipment: Ensures immediate stopping in critical operations.

Why the FPC-6000?
The FPC-6000 combines robust performance, regulatory compliance, and reliability. Its built-in microswitch provides additional monitoring of activation status. With EIDE, you gain a certified safety brake that protects people, equipment, and facilities in critical situations.

Why EIDE?
With 70+ years of experience in power transmission, EIDE offers customisable safety brakes that meet the most demanding industrial standards. Each product undergoes strict quality control, ensuring long-term reliability and reduced downtime.

Looking for a certified safety brake for lifting and transport applications? Contact EIDE to receive technical support and request a customised solution.
