Industrial Steel Chip Wringer Machine for Oil Removal | ENERPAT ED-400 Case Study

ENERPAT ED-400 industrial steel chip wringer machine efficiently removes cutting oil from alloy steel chips, enabling coolant recovery, higher scrap value, and cleaner production for aerospace and metal machining industries.

Industrial Steel Chip Wringer Machine for Alloy Chips Oil Removal

ENERPAT ED Series industrial steel chip wringer machine is designed for efficient coolant oil removal and recovery from high-temperature alloy steel chips. It helps metal machining manufacturers convert oily swarf into clean, reusable, high-value recyclable material while reducing environmental risk and production cost.

The Challenge: Oil-Contaminated Steel Chips in Alloy Manufacturing

In high-performance alloy production—such as superalloy forgings, aerospace components, and corrosion-resistant materials—large volumes of oily steel chips are generated during machining.

These chips create several operational problems:

Oil leakage contaminating workshop floors
High remelting losses due to oil contamination
Increased emissions and oxidation during melting
Rising disposal costs due to hazardous waste classification
Loss of valuable cutting oil mixed with scrap

Without a dedicated steel chip wringer machine, manufacturers face both environmental and economic inefficiencies.

Customer Requirements for Steel Chip Wringer Machine

The customer defined clear technical requirements for an industrial chip oil removal system:

Throughput: ≥ 200 kg/h alloy steel chips
Oil Control: Prevent leakage and enable oil recovery
Dryness Level: Minimize residual oil for remelting efficiency
Automation: Integration with conveyor feeding and discharge system
Reliability: Continuous 24/7 industrial operation
Low Maintenance: Long service life with stable performance

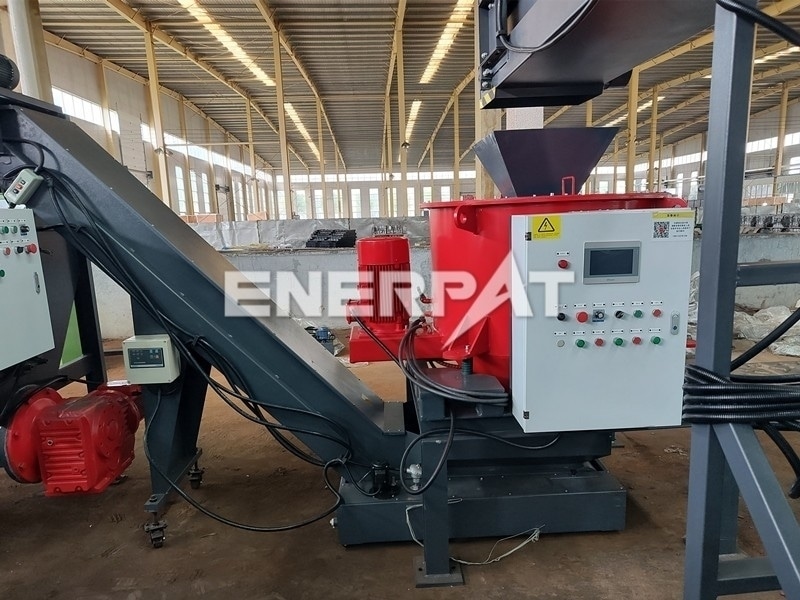

ENERPAT Solution: ED-400 Horizontal Steel Chip Wringer Machine

After technical evaluation, ENERPAT recommended the ED-400 industrial steel chip wringer machine, designed specifically for heavy-duty alloy machining waste.

System Configuration:
Model: ED-400 Horizontal Chip Wringer
Capacity: 200 kg/h
Automation: Automatic infeed + discharge conveyor system
Oil Recovery: Integrated coolant collection tank
Layout: Customized factory floor integration design
Performance Result:
Residual oil content reduced to below 3%
Stable continuous operation under high-density alloy load
Fully compliant with environmental inspection requirements
How the Horizontal Steel Chip Wringer Machine Works

The ENERPAT ED Series uses high-speed centrifugal separation to remove cutting oil from metal chips.

Oily steel chips are fed into a horizontal rotating basket
High-G centrifugal force separates coolant oil from chips
Oil passes through wedge-wire screen into recovery tank
Clean, dry chips are discharged automatically

This design is especially effective for dense alloy steel chips and superalloy swarf, where vertical systems often struggle.

Key Advantages of ENERPAT Steel Chip Wringer Machine

1. High Durability for Industrial Use
Stainless steel wedge-wire screen prevents clogging
Suitable for fine and heavy alloy chip mixtures
Continuous operation design for 24/7 production

2. Stable and Safe Operation
Anti-vibration structural design
Industrial-grade bearings and sensors
Suitable for high-density metal loads

3. Efficient Oil Recovery System
Recover valuable cutting oil for reuse
Reduce fresh coolant consumption by 20–30%
Lower waste disposal cost

4. Fully Automated Production Integration
Conveyor feeding and discharge system
Reduced manual labor requirements
Easy integration into machining lines

Business Benefits Achieved
①Economic Benefits
Higher scrap value due to dry, clean alloy chips
Reduced cutting oil procurement costs
Lower remelting losses
②Environmental Benefits
Eliminated oil leakage in workshop
Passed environmental compliance inspections
Reduced hazardous waste classification risk
③Production Benefits
Cleaner chips improve melting quality
Reduced smoke and oxidation during recycling
More stable downstream processing

FAQ – Steel Chip Wringer Machine
What is a steel chip wringer machine used for?

It removes cutting oil or coolant from metal chips generated during machining processes, improving recyclability and reducing environmental impact.

Can cutting oil be reused after wringing?

Yes, recovered oil can be filtered and reused in machining systems, reducing coolant costs significantly.

What industries use chip wringer machines?

Aerospace, automotive, machining workshops, alloy manufacturing, and metal recycling industries.

What is the advantage of a horizontal chip wringer?

It provides higher stability and better performance for heavy, dense alloy steel chips compared to vertical systems.

Conclusion

The ENERPAT industrial steel chip wringer machine (ED-400) provides a reliable and efficient solution for coolant oil removal in alloy machining operations. It improves recycling value, reduces environmental risks, and optimizes production efficiency.

For manufacturers processing high-temperature alloys or heavy steel chips, the ED Series delivers a proven path to cleaner production and higher profitability.
